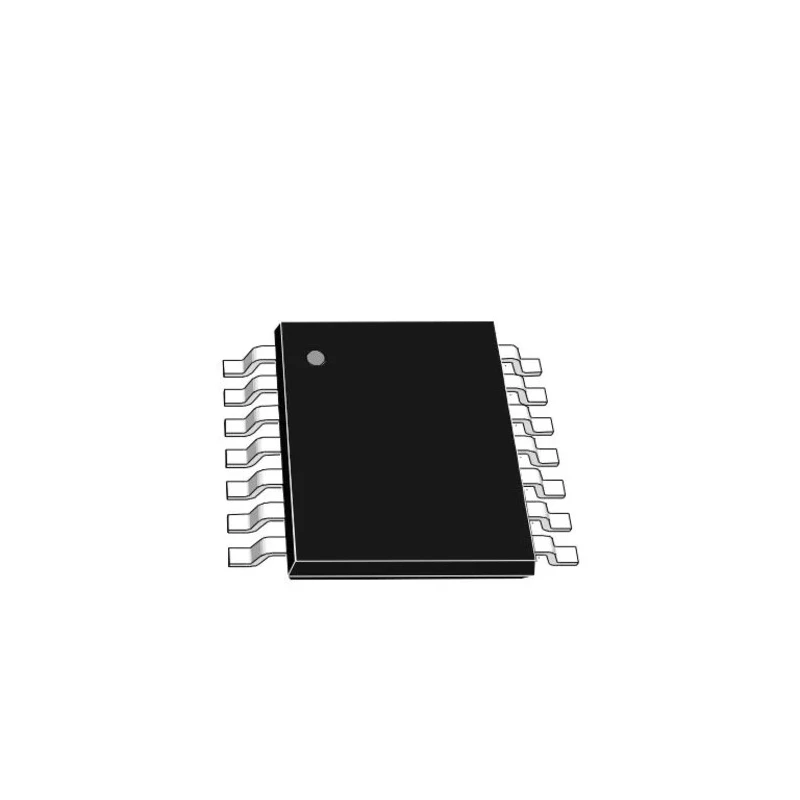

STMicroelectronics Operational Amplifier 6 MHz Gain Bandwidth, 14-Pin TSSOP Surface Mount, 2.7V to 36V Supply TSB514IPT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier 6 MHz Gain Bandwidth, 14-Pin TSSOP Surface Mount, 2.7V to 36V Supply TSB514IPT

Name: STMicroelectronics Operational Amplifier 6 MHz Gain Bandwidth, 14-Pin TSSOP Surface Mount, 2.7V to 36V Supply TSB514IPT
Brand: STMicroelectronics
SKU: 283837
Price: 3.99 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.2mm
Length	5.1mm
Model	TSB514IPT
Width	4.5mm
Mount Type	Surface
Low Noise	12 nV/√Hz
Series	TSB514
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Number Of Channels	4
Standards/Approvals	RoHS
Pin Count	14
Automotive Standard	AEC-Q100, AEC-Q3
Maximum Supply Voltage	36V
Minimum Supply Voltage	2.7V
GBP - Gain Bandwidth Product	6MHz
Input Bias Current	0 nA
Vos - Input Offset Voltage	±1.5 mV
Slew Rate	3V/μs
Input Offset Current	10 nA
Wide supply voltage range	2.7 V to 36 V
Low offset voltage	1.5 mV maximum

Key Features

Rail-to-rail input and output enable maximum dynamic range.
Low offset voltage with a maximum of 1.5 mV for precision applications.
Wide supply voltage range from 2.7 V to 36 V for versatile usage.
High slew rate of 3 V/μs supports fast signal processing.
Low input bias current with 0 nA typical value ensures minimal signal distortion.
Integrated EMI filter enhances noise immunity in industrial environments.
ESD tolerance of 2 kV HBM offers robust protection against electrostatic discharge.
Four channels in a single package allow multiple signal amplifications.

Product Description

STMicroelectronics TSB514IPT is a high-performance operational amplifier featuring a 6 MHz gain bandwidth product and housed in a 14-pin TSSOP surface mount package. It is engineered to operate reliably with a broad supply voltage range from 2.7 V up to 36 V, making it suitable for a variety of industrial, laboratory, and automotive applications.

This amplifier supports rail-to-rail inputs and outputs, allowing maximized signal utilization in low-voltage systems. The device exhibits a low offset voltage of up to ±1.5 mV, low input bias current of 0 nA, and a high slew rate of 3 V/μs, enabling fast and precise signal amplification with minimal distortion. Additionally, the integrated EMI filter and a high electrostatic discharge (ESD) tolerance level of 2 kV HBM provide robustness in electrically noisy environments.

The TSB514IPT includes four independent amplifier channels, allowing multiple signals to be processed simultaneously within a compact 14-pin package. Its dimensions are 5.1 mm in length, 4.5 mm in width, and 1.2 mm in height, facilitating space-efficient PCB layout. Designed per RoHS compliance and automotive standards AEC-Q100 and AEC-Q3, this product ensures durability and reliability, suitable for automotive and other demanding applications.

Applications include signal conditioning, sensor interfacing, data acquisition, and other precision amplifier roles in industrial automation, automotive electronics, telecommunications, and instrumentation systems.

Rail-to-rail input and output for full signal range utilization. Low offset voltage maximizes accuracy. Wide supply voltage supports flexible power designs. High slew rate enhances rapid signal changes handling. Low input bias current preserves signal integrity.

Integrated EMI filter improves electromagnetic compatibility. Robust ESD protection for reliable operation in harsh environments. Four-channel configuration in one package for multi-signal applications. Compact TSSOP package eases PCB design constraints.

Compliance with automotive industry standards ensures quality. Explore more Operational Amplifiers and electronic components within the Electronics & Electricals category at EnvMart for enhanced industrial solutions.
