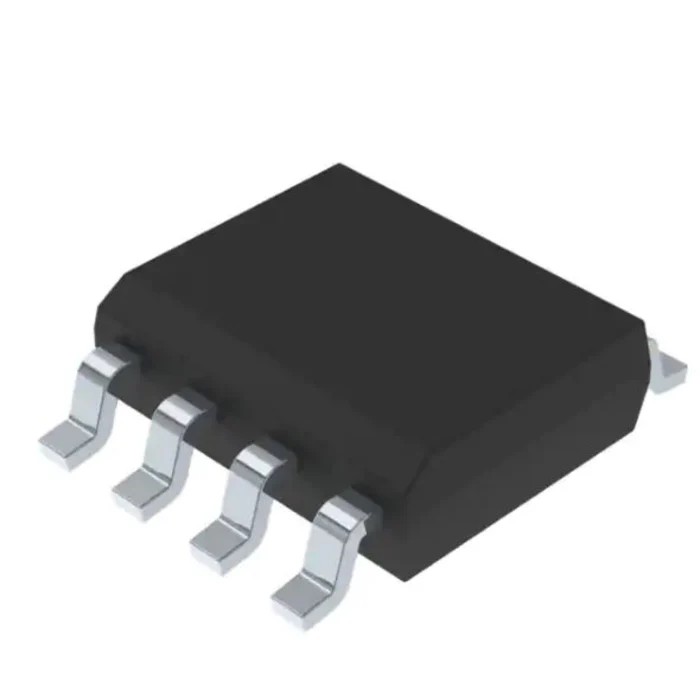

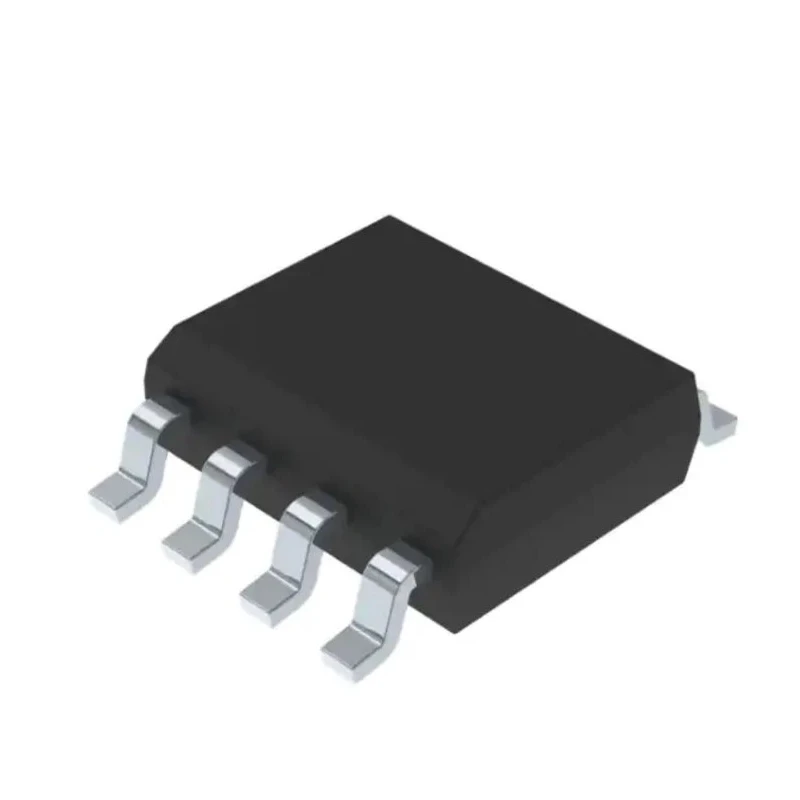

STMicroelectronics Operational Amplifier 1 MHz Gain Bandwidth, 2-Channel, 8-Pin SO-8, 6-36V TL062ACDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TL062ACDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TL062A |
| Maximum Operating Temperature | 70°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 3.5V/μs |
| Input Offset Current | 100 pA |
Key Features
- High-speed JFET input operational amplifier with matched, high-voltage JFET and bipolar transistors.
- Wide supply voltage range from 6 V to 36 V for versatile applications.
- Low input bias current of 200 pA and input offset voltage of 3 mV.
- High slew rate of 3.5 V/µs ensuring fast response.
- Latch-up free operation with internal frequency compensation for stability.
- Operates reliably within temperature range of 0°C to 70°C.
- Dual channels with 8-pin configuration suitable for various amplifier circuits.
- RoHS compliant ensuring environmental safety.
Product Description
STMicroelectronics TL062ACDT is a high-speed dual operational amplifier utilizing JFET input technology. It integrates matched high-voltage JFET and bipolar transistors within a monolithic IC for robust performance in electronic circuits. The device supports a supply voltage range from 6 V up to 36 V, making it suitable for a wide range of industrial and commercial electronics applications.
This operational amplifier offers very low input bias (200 pA) and offset currents (100 pA), with a low input offset voltage of 3 mV to enable precise signal amplification. The high slew rate of 3.5 V/µs allows rapid output voltage changes, which is essential for fast analog signal processing.
Packaged in a compact SO-8 surface mount format with dimensions of 5 mm length, 4 mm width, and 1.75 mm height, this dual channel op-amp provides a reliable solution for space-sensitive PCB designs. It operates reliably within an ambient temperature range of 0°C to 70°C.
Additional features include output short-circuit protection, internal frequency compensation to avoid oscillations, and latch-up free operation for device safety and robustness. It is RoHS compliant, meeting environmental and safety standards.
Typical industrial applications include signal conditioning, filtering, and amplification in instrumentation, control systems, and communication devices. Its versatility makes it a valuable component for electronics manufacturing, automotive electronics (non-automotive rated), laboratory equipment, and consumer electronics.
High-speed JFET input operational amplifier with matched high-voltage transistors. Wide supply voltage range from 6 V to 36 V. Low input bias and offset currents for precision amplification. High slew rate of 3.5 V/µs for fast signal response.
Compact SO-8 surface mount package reduces PCB footprint. RoHS compliant and environmentally safe. Output short-circuit protection for enhanced device durability. Internal frequency compensation ensures stable operation.
Operating temperature from 0°C to 70°C. Ideal for various industrial and commercial electronics applications. Explore the Electronics & Electricals category at EnvMart for a comprehensive selection of Semiconductor Operational Amplifiers including products from STMicroelectronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz.
It supports a supply voltage range from 6 V to 36 V.
The maximum operating temperature for this model is 70°C.
This operational amplifier has 2 channels.
The input bias current is 200 pA.
The dimensions of the SO-8 package are 5 mm in length, 4 mm in width, and 1.75 mm in height.
The slew rate of this operational amplifier is 3.5 V/µs.
The input offset voltage is 3 mV.
Yes, this operational amplifier is RoHS compliant, ensuring it meets environmental safety standards.
The input offset current is 100 pA.
It uses surface mount technology.
Typical applications include signal conditioning, filtering, and amplification in instrumentation and communication devices.
