STMicroelectronics 8 kB Serial EEPROM 4-Pin WLCSP Serial-I2C 900 ns Access Time M24C08-FCT6TP/T

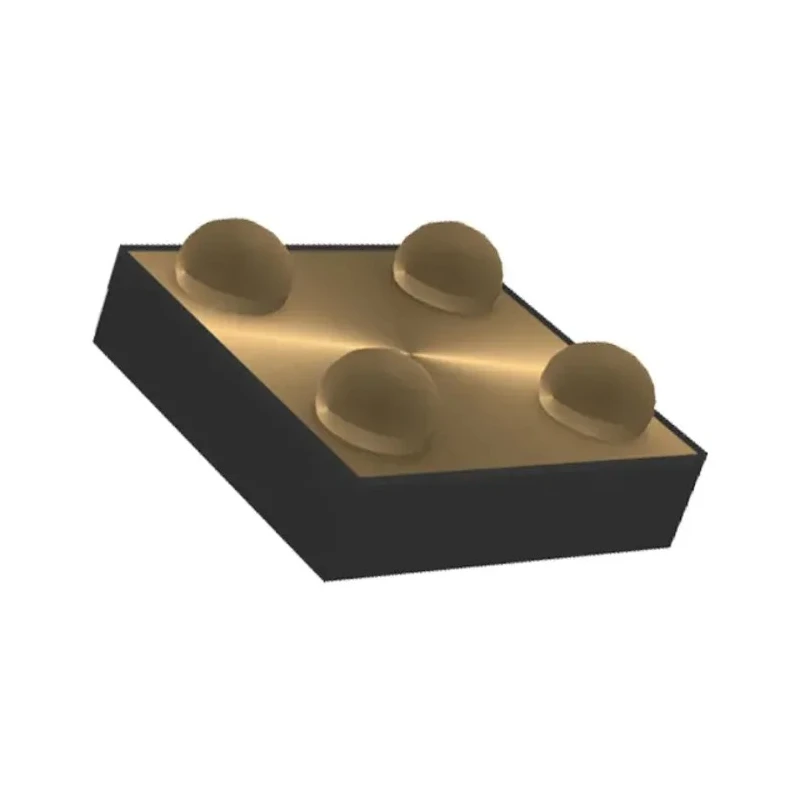

STMicroelectronics M24C08-FCT6TP/T is a high-performance 8 kB Serial EEPROM designed for industrial and automotive applications requiring reliable non-volatile memory. It features a 4-pin Wire Line Chip Scale Package (WLCSP) optimized for surface mounting on compact circuit boards, with overall package dimensions of approximately 700 micrometers length by 690 micrometers width and 550 micrometers height.

This EEPROM is organized as 1K x 8 bits memory with a data retention capability of 200 years, operating across a wide voltage range from 1.6 V (extended range) to 5.5 V, making it suitable for various power conditions. The device supports standard Serial I2C interface protocols with maximum clock frequency of 400 kHz, enabling fast and efficient communication with microcontrollers and processors.

The M24C08-FCT6TP/T offers fast access times with a maximum random access time of 900 nanoseconds and supports both random and sequential read modes. Write operations are optimized with byte and page write times within 5 milliseconds, supporting 16-byte page sizes, ensuring high-speed data writing.

This EEPROM withstands industrial temperature ranges from -40°C to +85°C and meets the automotive AEC-Q100 standard, ensuring high reliability in harsh environments. Its low power single supply operation simplifies power design requirements for embedded systems and automotive electronics.

Memory size of 8 kilobytes organized as 1K x 8 bits. Serial I2C interface supports clock speeds up to 400 kHz for fast communication. Wide operating voltage range from 1.6 V to 5.5 V for diverse application needs. Operating temperature range from -40°C to +85°C ensures reliability in extreme conditions.

Compact 4-pin surface mount WLCSP package with miniature dimensions. Fast byte and page write times of 5 milliseconds improve efficiency. Data retention capability of 200 years ensures long-term storage stability. Automotive grade compliance with AEC-Q100 certifies suitability for vehicle electronics.

Low power consumption with single supply voltage simplifies integration.

This Serial EEPROM is ideal for use in industrial control systems, automotive electronics, communication devices, and embedded systems requiring stable and reliable memory storage. The device's small form factor and robust electrical characteristics make it suitable for space-constrained applications with demanding performance requirements.
