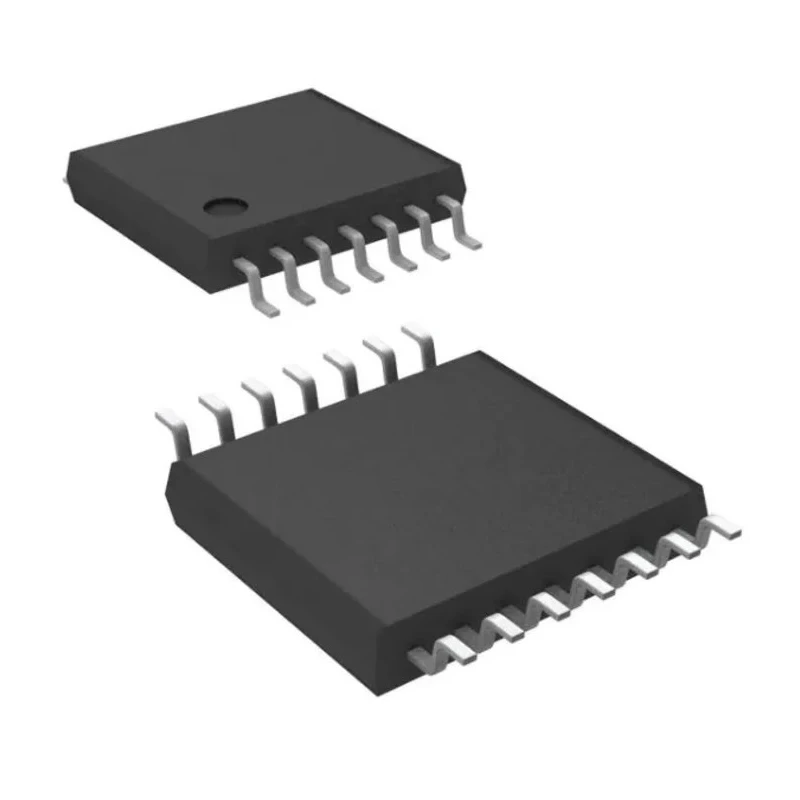

STMicroelectronics Operational Amplifier Quad Low-Power 1.3 MHz Gain Bandwidth 30V TSSOP-14 LM224PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | LM224PT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | LM224x |
| Output Current | 40mA |
| Maximum Operating Temperature | 105°C |
| Package Type | TSSOP-14 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 20 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 2 nA |
Key Features
- Operates from a single power supply voltage range of 3V to 30V.
- Features wide gain bandwidth of 1.3 MHz suitable for precision amplification.
- Includes four amplifier channels in a 16-pin TSSOP-14 package.
- Low input bias current of 20 nA and low input offset voltage of 5 mV ensure accurate signal processing.
- Low supply current per amplifier of 375 µA for power efficient operation.
- Slew rate of 0.4 V/µs enables moderate-speed signal response.
- Wide operating temperature range from -40°C to 105°C for industrial applications.
- Maximum output current of 40 mA supports driving moderate loads.
Product Description
STMicroelectronics LM224PT is a quad low-power operational amplifier optimized for accurate analog signal processing with a gain bandwidth product of 1.3 MHz. It operates from a single supply voltage ranging from 3 V to 30 V, making it suitable for diverse electronic component designs.
This device features low input bias and offset currents, with values of 20 nA and 2 nA respectively, guaranteeing high precision and stability in signal amplification. Its input offset voltage is minimal at 5 mV, and the slew rate of 0.4 V/µs provides sufficient speed for most analog applications.
The amplifiers are housed in a compact 16-pin TSSOP-14 surface mount package, with a length of 5.1 mm, width of 4.5 mm, and height of 1.2 mm, ideal for space-constrained PCB layouts. The operational temperature range from -40°C to 105°C suits industrial and automotive electronics use cases.
The maximum output current capability is 40 mA, allowing it to drive typical loads encountered in amplifying tasks. Compliance with RoHS standards ensures this component meets environmental and safety regulations.
This Operational Amplifier is widely used in industrial, laboratory instrumentation, consumer electronics, communications equipment, and automotive systems requiring low power consumption and reliable analog performance.
Operates from a single supply voltage between 3 V and 30 V. Quad channel amplifier providing four independent amplifiers in one package. Low input bias and offset currents for high-fidelity signal processing. Compact TSSOP-14 surface mount packaging suitable for automated assembly.
Suitable for industrial temperature applications with a range from -40°C to 105°C. RoHS compliant component ensuring environmental adherence. Explore other semiconductor amplifiers at EnvMart for comprehensive solutions in your electronic design and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.3 MHz, making it suitable for precision amplification tasks.
It operates from a single supply voltage range of 3 V to 30 V.
This model features four independent amplifier channels in one package.
The maximum output current capability is 40 mA, allowing it to drive typical loads in amplifying tasks.
The input bias current is 20 nA, which helps ensure high precision in signal processing.
The dimensions of the TSSOP-14 package are 5.1 mm in length, 4.5 mm in width, and 1.2 mm in height.
It has an operating temperature range from -40°C to 105°C, suitable for industrial applications.
The slew rate is 0.4 V/µs, which enables moderate-speed signal response.
The input offset voltage is minimal at 5 mV, contributing to accurate signal amplification.
Yes, this operational amplifier is RoHS compliant, ensuring it meets environmental and safety regulations.
This model uses surface mounting, specifically in a TSSOP-14 package.
It is widely used in industrial, laboratory instrumentation, consumer electronics, communications equipment, and automotive systems requiring low power consumption and reliable analog performance.
