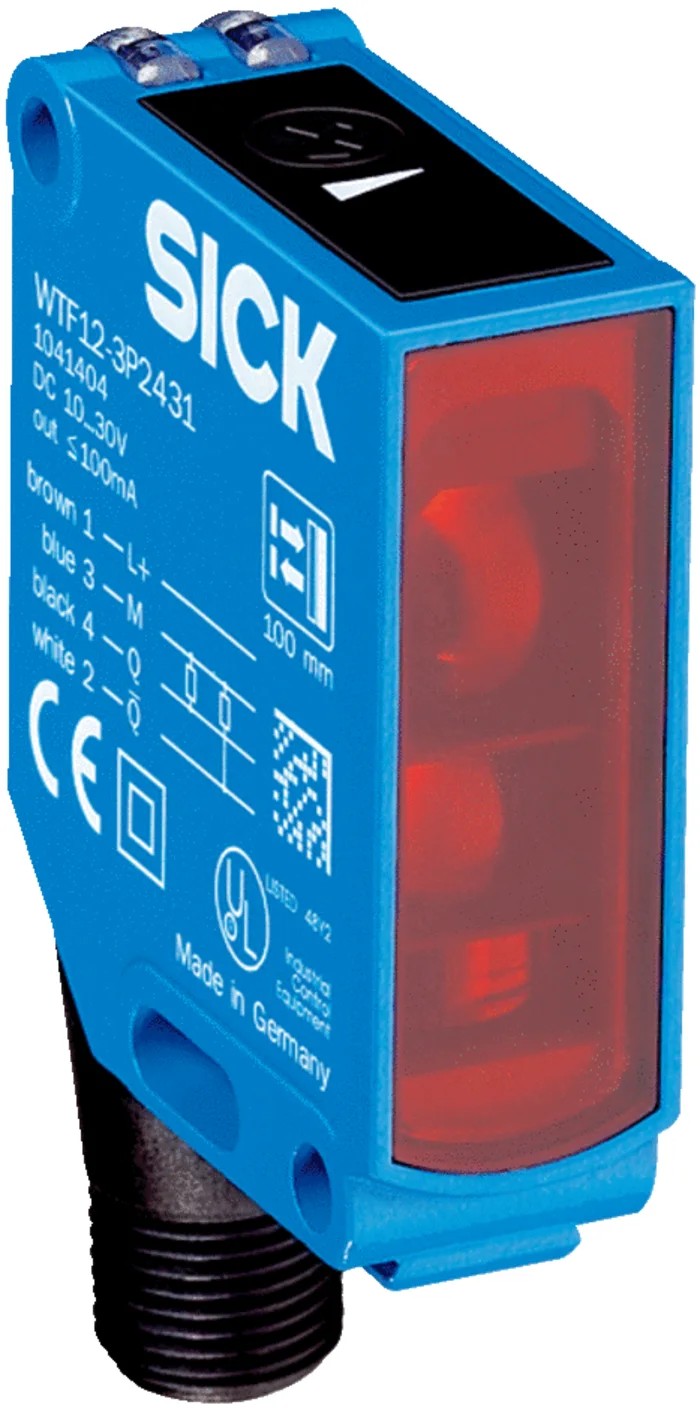

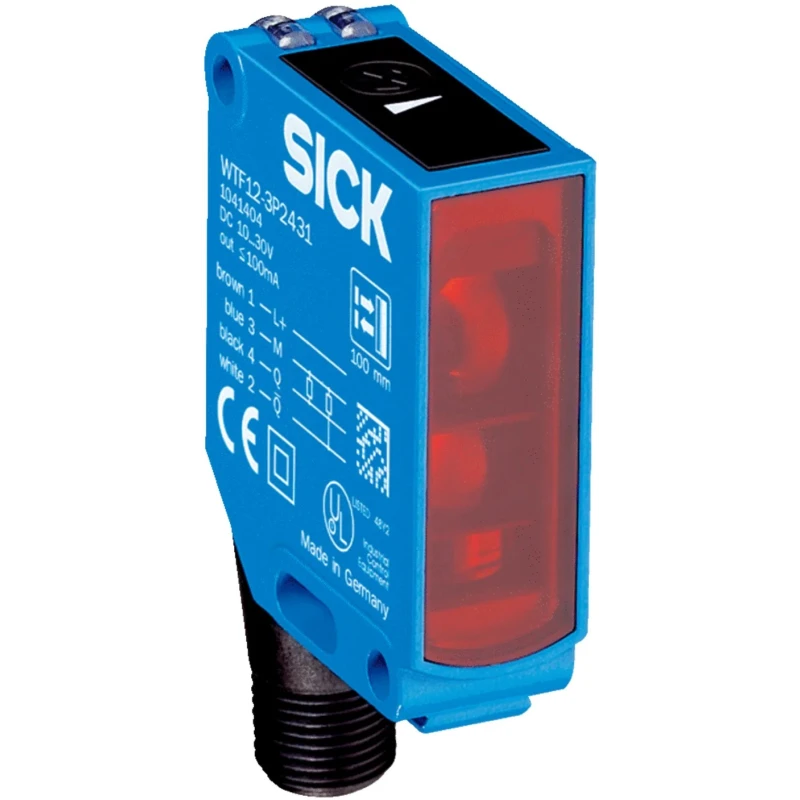

SICK Foreground Suppression Photoelectric Sensor Block Sensor 30 mm to 500 mm PNP Output IP66, IP67, IP69K WTF12-3P2441
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 330μs |
| Light Source | Red Light |
| Detection range | 30 mm → 500 mm |
| Model | WTF12-3P2441 |
| IP Rating | IP66, IP67, IP69K |
| Mount Type | Hole, Threaded |
| Housing Material | Metal |
| Output type | PNP |
| Series | W12-3 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Foreground Suppression |
| Terminal type | 4-Pin Connector |
| Interface Type | M12 Connector, 4-Pin |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE Certified, UL Certified |
| Materials Detected | Methyl Methacrylate, Plastic |
| Sensor Style | Block |
| Loop control | loop measurement |
Key Features
- Equipped with superior OES technology for best optical performance.
- Features autocollimation with retro-reflective sensors.
- Highly visible and precise light spot for easy sensor alignment.
- Rugged die-cast zinc housing with optional Teflon coating.
- IP66, IP67, and IP69K rated for harsh industrial environments.
- Flexible sensor settings and advanced diagnostics via IO-Link.
- Reliable detection with immunity to optical interference in industrial environments.
- Metal housing suitable for broad industrial applications.
Product Description
SICK WTF12-3P2441 Foreground Suppression Photoelectric Sensor Block Sensor with detection range from 30 mm to 500 mm offers robust and reliable object detection for industrial automation applications. Operating with PNP output and supplied via a 4-pin M12 connector, this sensor is designed for demanding environments with IP66, IP67, and IP69K ingress protection ratings.
Featuring advanced OES technology, the sensor ensures superior optical performance with a bright red light source and precise light spot for quick and easy alignment. The rugged die-cast zinc metal housing, optionally coated with Teflon, provides excellent durability in harsh industrial settings. It supports flexible mounting options including through holes, base blind holes, oblong holes, and dovetail slots.
This photoelectric sensor provides flexible sensor configuration, monitoring, and diagnostics through IO-Link communications, enabling integration into smart manufacturing systems. It exhibits immunity to optical interference, ensuring reliable detection and reducing downtime in industrial processes such as packaging, pharmaceuticals, and food and beverage production.
Typical applications include type checking of body parts, collision prevention at robot grippers, robot guidance during windshield installation, loop measurement control, and detecting transparent objects. The sensor operates reliably in temperature ranges from -40°C to 60°C with a response time of 330 microseconds and supports current up to 100mA with a maximum DC supply voltage of 30V.
Equipped with superior OES technology for best optical performance. Features autocollimation capabilities with retro-reflective sensors. Bright, small, and precise light spot for accurate sensor alignment. Rugged die-cast zinc housing with optional Teflon coating for durability.
Rated IP66, IP67, and IP69K for protection against dust and water ingress. Flexible mounting options for versatile installation configurations. Advanced diagnostics and sensor monitoring available via IO-Link interface. Reliable detection with immunity to optical interference factors.
Suitable for industrial automation in packaging, pharmaceutical, and food industries. Capable of precise switching to reduce downtime during recipe changes.
This sensor is an ideal choice for industrial environments requiring precise object detection and versatile mounting options under harsh conditions. For more products in Photoelectric Sensors and automation equipment, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SICK WTF12-3P2441 has a detection range from 30 mm to 500 mm.
This sensor operates with a PNP output type.
It is rated IP66, IP67, and IP69K, providing protection against dust and water ingress.
The maximum operating temperature is 60°C.
The response time of the SICK WTF12-3P2441 is 330 microseconds.
It is supplied via a 4-pin M12 connector and can handle a maximum DC supply voltage of 30V.
This model can detect materials such as methyl methacrylate and plastic.
It features a rugged metal housing, which can optionally be coated with Teflon for added durability.
It supports flexible mounting options including hole and threaded mounts.
The minimum operating temperature is -40°C.
Yes, it is designed for industrial automation applications, including packaging, pharmaceuticals, and food production.
It supports IO-Link communications for flexible sensor configuration and diagnostics.
