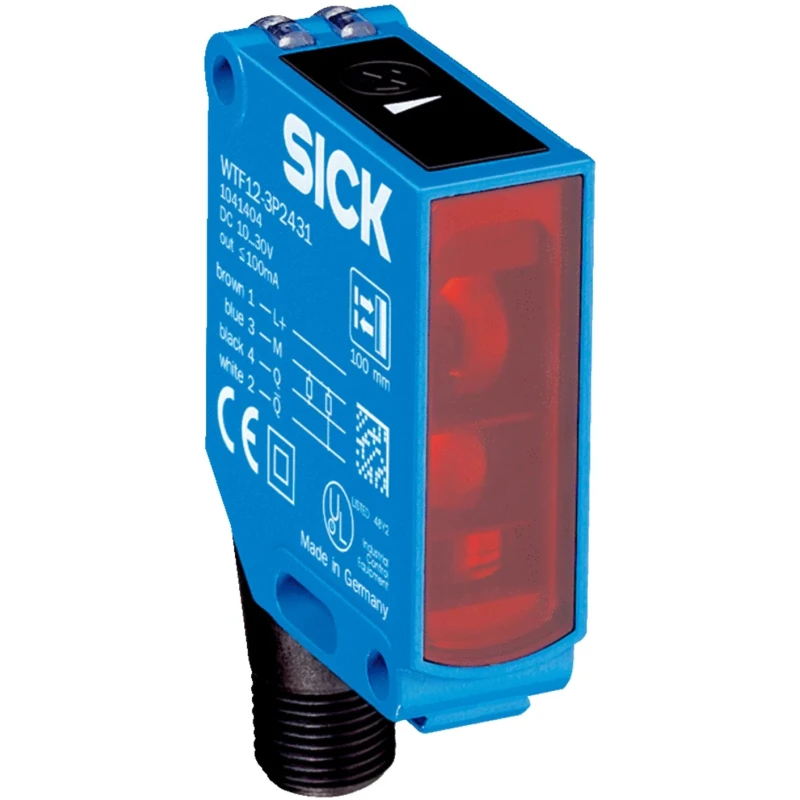

SICK Foreground Suppression Photoelectric Sensor, Block Sensor, 30 mm to 175 mm Detection Range, PNP Output WTF12-3P1131
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 330μs |
| Light Source | Red Light |
| Detection range | 30 mm → 175 mm |
| Model | WTF12-3P1131 |
| IP Rating | IP69K, IP67, IP66 |
| Mount Type | Threaded, Hole |
| Housing Material | Metal |
| Output type | PNP |
| Series | W12-3 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Foreground Suppression |
| Terminal type | Cable Wire |
| Interface Type | 4 Wire |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE Certified, UL Certified |
| Materials Detected | Flat Object |
| Sensor Style | Block |
| Loop control | loop measurement |
Key Features
- Utilizes superior OES technology for best-in-class optical performance.
- Encased in rugged die-cast zinc metal housing with optional Teflon® coating.
- Operates over a temperature range from -40°C to 60°C.
- Equipped with bright red light source and 4-wire interface.
- Offers precise switching with a response time of 330 microseconds.
- IP69K, IP67, and IP66 rated for harsh industrial environments.
- Flexible mounting options including threaded and hole configurations.
- Designed for reliable detection of flat objects and foreground suppression.
Product Description
The SICK WTF12-3P1131 Foreground Suppression Photoelectric Sensor is a high-performance block sensor designed to provide reliable detection of flat objects within a detection range of 30 mm to 175 mm. Featuring PNP output and a 4-wire cable interface, it delivers superior optical performance thanks to its advanced OES technology. The rugged die-cast zinc metal housing, optionally coated with Teflon®, ensures durability and excellent resistance in demanding industrial environments.
This sensor operates efficiently across a wide temperature spectrum from -40°C to 60°C, making it suitable for various challenging conditions. Its bright red light source and precise switching characteristics with a rapid 330µs response time enable quick and accurate detections, reducing downtime in automated processes.
With high ingress protection ratings of IP69K, IP67, and IP66, the sensor is impervious to dust and water, suitable for industrial, laboratory, manufacturing, packaging, pharmaceutical, and food & beverage industries. The threaded and hole mounting options provide installation flexibility.
SICK's WTF12-3P1131 sensor is CE and UL certified, ensuring compliance with international safety standards. Its design supports advanced sensor settings including IO-Link for monitoring, diagnostics, and visualization.
Best-in-class optical performance with OES technology. Rugged metal housing with optional Teflon® coating. Wide operating temperature range from -40°C to 60°C. High ingress protection: IP69K, IP67, IP66. Precise switching with fast 330μs response time.
PNP output and 4-wire cable interface. Flexible mounting using threaded and hole options. Certified CE and UL for safety compliance. Designed for automation and industrial sensor applications. Supports IO-Link advanced diagnostics and monitoring.
This Photoelectric Sensor is ideal for applications such as object presence and type checking in robotic assembly, collision prevention at robot grippers, loop measurement control, transparent object detection, and height measurement in packaging lines. Its broad detection range and robust design enable use in food & beverage, pharmaceutical manufacturing, and other industrial sectors.
Explore more industrial sensors and photoelectric sensing solutions on EnvMart for your automation and control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is from 30 mm to 175 mm.
It features a PNP output type.
The sensor has a response time of 330 microseconds.
This sensor is rated IP69K, IP67, and IP66, making it resistant to dust and water ingress.
It operates efficiently in a temperature range from -40°C to 60°C.
It is designed to detect flat objects.
The sensor offers flexible mounting options including threaded and hole configurations.
The housing is made of rugged metal, with an optional Teflon® coating for enhanced durability.
Yes, it supports IO-Link for monitoring, diagnostics, and visualization.
The maximum current rating is 100 mA.
This sensor is CE and UL certified, ensuring compliance with international safety standards.
It is suitable for applications such as object presence detection, collision prevention, and height measurement in packaging lines.
