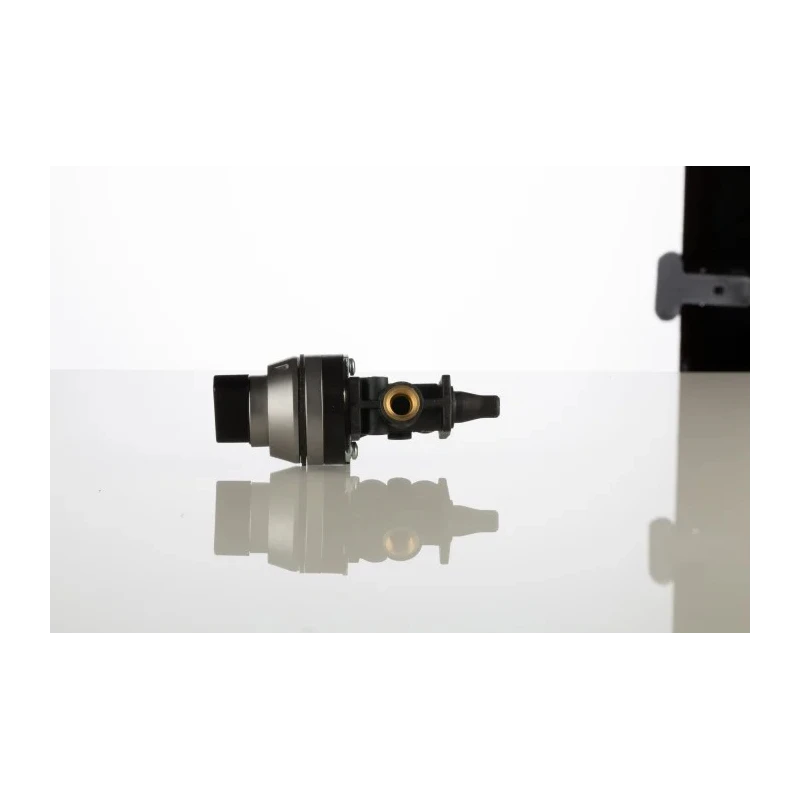

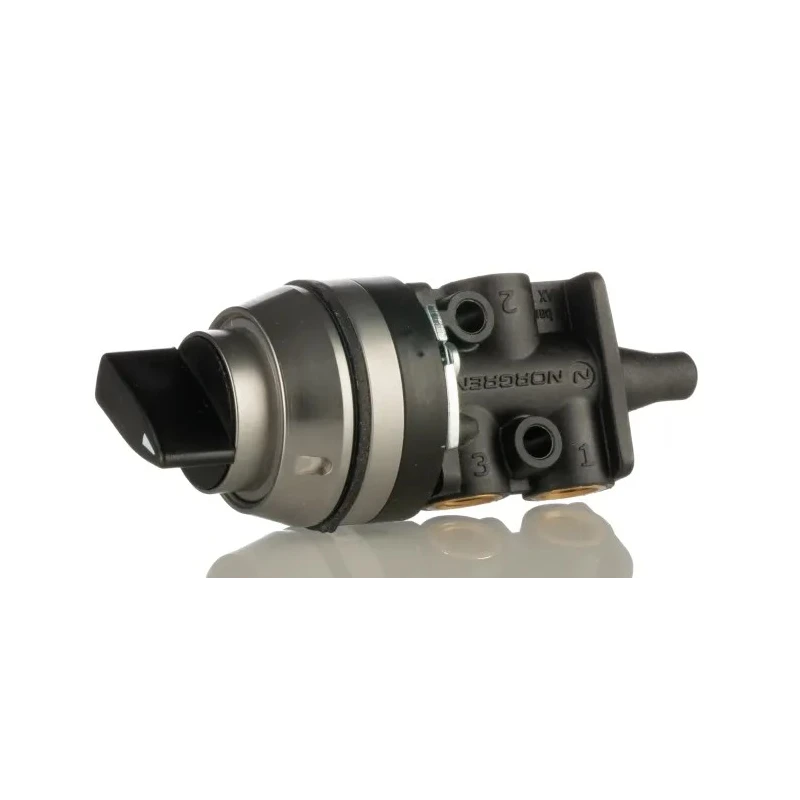

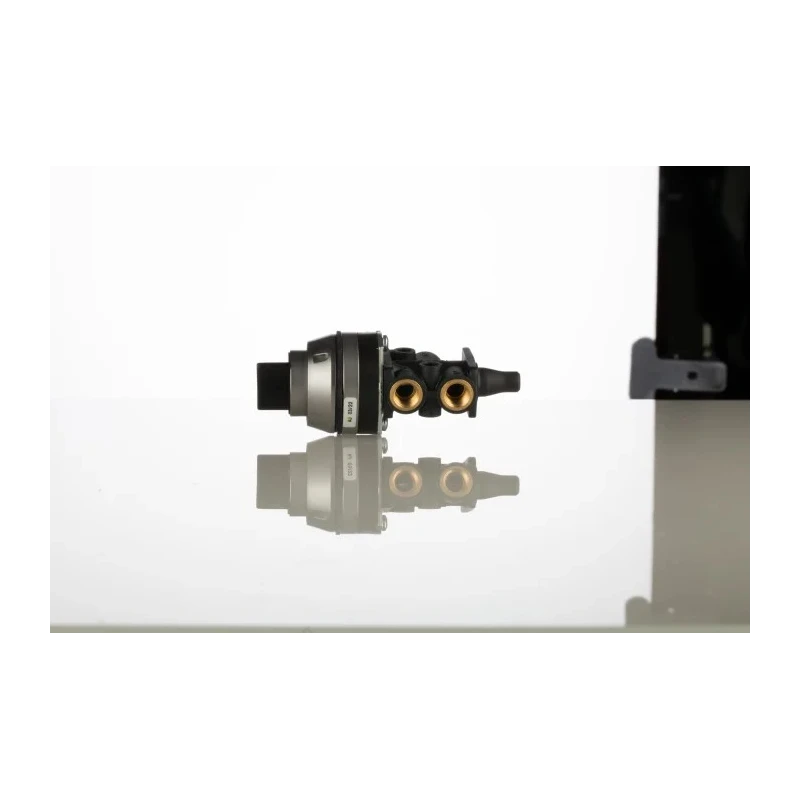

Norgren Rotary Knob Pneumatic Manual Control Valve 03 Series G 1/8, 3/2 Function, 10 bar, 335L/min Flow Rate 03041902
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Norgren |
| Body Material | Die Cast Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 42mm |
| Length | 115mm |
| Model | 03041902 |
| Width | 45mm |
| Series | 03 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | +70°C |
| Thread Size | 1/8 in |
| Port Type | PIF |
| Number of Positions | 2 |
| Port Size | G 1/8 |
| Minimum Operating Temperature | 0°C |
| Maximum Flow Rate | 335L/min |
| Control Mechanism | Rotary Knob |
| Connection Thread Standard | G |
| Valve Function | 3/2 |
| Control Button/Switch Colour | Black |
Key Features
- Operates with a rotary knob mechanism for manual control.
- Suitable for pressures up to 10 bar and flow rates up to 335L/min.
- Die cast aluminium alloy body offers corrosion resistance and durability.
- Wide operating temperature range from 0°C to +70°C ensures performance in harsh industrial environments.
- Compact dimensions (115mm length, 45mm width, 42mm height) enable easy integration.
- Controls three ports with two distinct positions supporting various pneumatic circuits.
- Designed for use in aviation, packaging, and industrial pneumatic cylinder applications.
- Constructed to allow dual air supply and quick mounting via pre-drilled through-holes.
Product Description
Norgren 03041902 Rotary Knob Pneumatic Manual Control Valve from the 03 Series is engineered to regulate compressed air movement with precision in pneumatic systems. This manual control valve features a robust rotary knob mechanism that enables smooth adjustment and manual operation, ideal for controlling high performance pneumatic equipment.
Designed with a 3/2 valve function, it manages three separate ports and two positions, facilitating versatile pneumatic flow control. The valve supports a maximum operating pressure of 10 bar and can handle flow rates reaching up to 335 liters per minute, making it suitable for demanding industrial applications.
Its construction uses die cast aluminium alloy for the body, providing excellent corrosion resistance and durability under tough conditions. The compact size, with dimensions of 115mm length, 45mm width, and 42mm height, allows easy integration into systems with limited space availability.
The unit is engineered to operate within a temperature range from 0°C to +70°C, suitable for harsh industrial and commercial environments, including aviation, packaging, and pneumatic cylinder operations. It's equipped with pre-drilled through-holes to enable quick and secure assembly during installation.
Operates via a rotary knob manual control mechanism. Maximum operating pressure is 10 bar, suitable for various pneumatic systems. Handles a maximum flow rate of 335L/min for efficient air movement. Die cast aluminium alloy body for enhanced durability and corrosion resistance.
Compact dimensions ensure flexibility in mounting and space usage. 3/2 valve function enabling control of three ports with two positions. Wide operating temperature range from 0°C to +70°C. Pre-drilled through-holes for easy and quick mounting.
Applications include aviation, packaging, and industrial pneumatic cylinders.
This Pneumatic Manual Control Valve is essential for regulating compressed air in industrial, manufacturing, packaging, and aviation sectors. Its versatile design combined with high flow rate and pressure ratings makes it ideal for controlling pneumatic actuators and cylinders.
Explore more pneumatic valves and control components in the Industrial Valves & Valve Fittings category at EnvMart, featuring high-quality products designed for precision control and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It can handle a maximum flow rate of 335 liters per minute.
The valve has compact dimensions of 115mm in length, 45mm in width, and 42mm in height.
It operates with a rotary knob mechanism for manual control.
This model features three ports and supports two distinct positions for flow control.
The valve operates within a temperature range from 0°C to +70°C.
The body is constructed from die cast aluminium alloy, providing corrosion resistance.
The thread size for this model is 1/8 inch.
It is designed for use in aviation, packaging, and industrial pneumatic cylinder applications.
Yes, it is constructed to allow for dual air supply.
The valve uses G 1/8 port size with a port type of PIF.
It features pre-drilled through-holes for quick and secure mounting.
