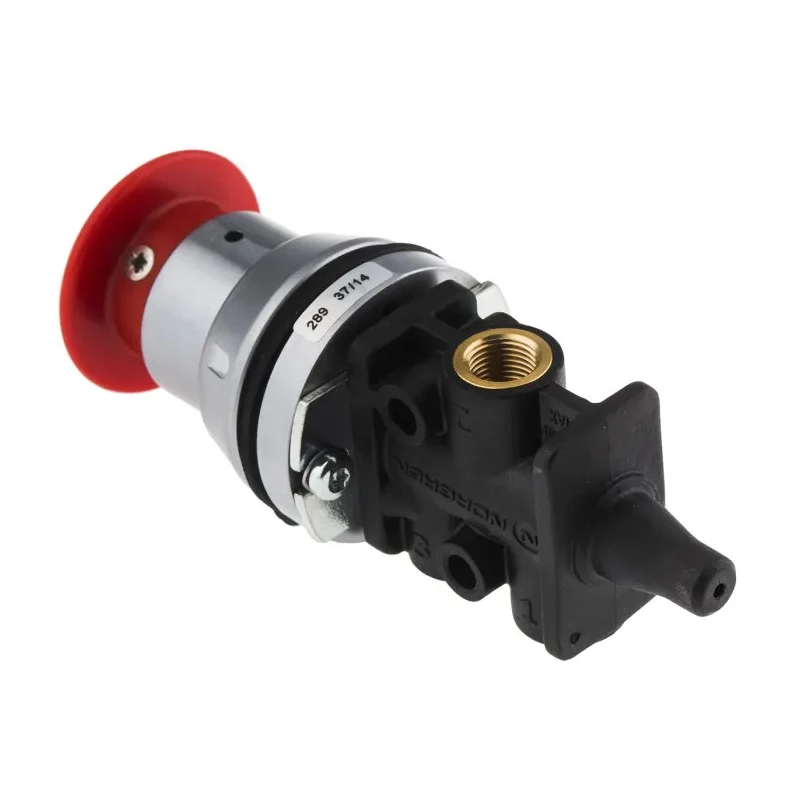

Norgren Push Button Pneumatic Manual Control Valve 03 Series, G 1/8 Port, 3/2 Valve Function, Polyamide Body, Red 03036602

Norgren 03036602 Push Button Pneumatic Manual Control Valve 03 Series is engineered for reliable manual control in pneumatic systems. Featuring a push button mechanism, this valve controls the flow of compressed air with precision. Its robust polyamide body ensures resistance to corrosion in demanding industrial environments.

The valve operates effectively within a pressure range up to 10 bar and can handle a maximum flow rate of 335L/min, making it suitable for use in diverse industries including power plants, transportation, oil and gas production, and packaging facilities. The bright red push button provides a clear indication for manual operation, enhancing user safety and convenience.

Designed with standard G 1/8 port size and thread type, it integrates easily with common pneumatic fittings. Its operating temperature range from 0°C to +70°C allows it to function reliably in various environmental conditions. The valve supports 3/2 functionality, offering two positions with three ports, and includes through-holes in the body for easy mounting without additional drilling.

Constructed in the Czech Republic, this valve adheres to stringent manufacturing standards ensuring durability and performance consistency. Applications vary widely, from controlling pneumatic cylinders up to 50mm bore to serving as an essential component in fluid power systems across industrial settings.

Push button control mechanism allows precise pneumatic flow regulation. Port size G 1/8 with thread standard G ensures compatibility with standard fittings. Polyamide body offers corrosion resistance and durability. Designed for a wide operating temperature range of 0°C to +70°C.

Maximum operating pressure is 10 bar, suitable for various industrial applications. Valve function is 3/2, providing two positions and three ports. Bright red control button enhances visibility and ease of use. Maximum flow rate of 335L/min supports high-flow pneumatic systems.

Compact dimensions: 108 mm length, 42 mm width and height. Originates from Czech Republic, reflecting quality manufacturing standards.

This valve is ideal for industrial and manufacturing pneumatic control applications, delivering reliable manual operation and durability. Browse more pneumatic valves and control solutions at EnvMart for comprehensive industrial automation supply.
