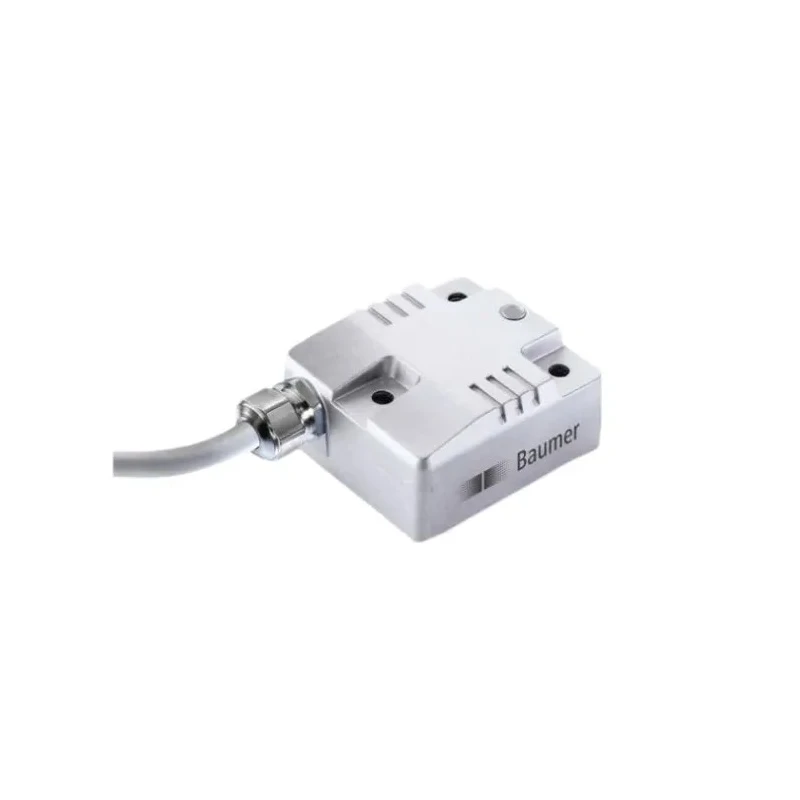

Baumer 2 Axis MEMS Analogue Sensor 8 V - 36 V, CAN, SAE J1939 Interface, Metal M Package, 8-Pin GIM500R-M210.FC4.A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Baumer |
| Response time | 0.5s |
| Height | 24mm |
| Length | 52mm |
| Model | GIM500R-M210.FC4.A |
| SENSITIVITY | 0.3% |
| Technology | Analogue |
| Sensor Type | MEMS |
| Width | 48mm |
| Series | GIM500R |
| Maximum Operating Temperature | 85°C |
| Package Type | Metal M |
| Minimum Operating Temperature | -40°C |
| Number of axis | 2 |
| Interface Type | CAN, SAE J1939, Analogue |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 8V |
| Supply Current | 40mA |
| Maximum Frequency Response | 1600Hz |
| Minimum Frequency Response | 0.1Hz |
| Baumer 2 Axis Sensor 8 V 30V, Analogue, 5-PinBrand | Baumer |
Key Features
- Operates at supply voltage range of 8 V to 36 V ensuring versatility in power options.
- Utilizes MEMS capacitive measuring technology for accurate 2-dimensional inclination sensing.
- Metal M package with 8-pin configuration offering durable construction and secure connectivity.
- Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
- High maximum frequency response of 1600 Hz supporting dynamic measurement capabilities.
- Protection rating of IP69K provides excellent resistance against dust and high-pressure water jets.
- Small form factor with dimensions 52 mm length, 48 mm width, and 24 mm height.
- Low supply current consumption at 40 mA optimizes power efficiency in embedded systems.
Product Description
The Baumer GIM500R-M210.FC4.A 2-axis MEMS analogue sensor provides precise angular measurement across ±90° using capacitive measuring principles.
Designed with a rugged Metal M housing and 8-pin connector, it offers protection against polarity reversal and environmental challenges, including IP69K rated dust and water ingress resistance.
Operating over a voltage range from 8 V to 36 V, this sensor maintains stability and accuracy within a temperature range of -40°C to 85°C, making it suited for industrial, automotive, and manufacturing environments.
Its high-frequency response up to 1600 Hz enables usage in dynamic motion sensing applications such as robotics, vehicle stability control, and heavy machinery monitoring. With low supply current of 40 mA and repeatability of ±0.1°, the sensor delivers reliable real-time data while minimizing power consumption.
The sensor is compliant with key international standards including EN 61000-6-2 (immunity), ISO 11452 for automotive electrical disturbances, ECE Regulation 10R04, and ISO 7637-2 for transient electrical disturbance characterization.
Operates 2 axis detection with MEMS analogue technology. Supports CAN and SAE J1939 communication protocols. Compact Metal M packaging with 8-pin connector. Works in extreme temperature and environmental conditions. Ideal for automotive, industrial automation, and control systems.
Originating from Germany, this unit conforms to stringent quality and environmental standards. Discover the full range of Baumer Sensors and components available for industrial sensing, automation, and control applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates within a supply voltage range of 8 V to 36 V.
It has a maximum frequency response of 1600 Hz, allowing for dynamic measurement capabilities.
The dimensions of the sensor are 52 mm in length, 48 mm in width, and 24 mm in height.
The sensor can operate in temperatures ranging from -40°C to 85°C, making it suitable for harsh environments.
It supports CAN and SAE J1939 communication protocols, along with analogue output.
This model utilizes MEMS (Micro-Electro-Mechanical Systems) analogue technology for inclination sensing.
The sensor has a protection rating of IP69K, providing excellent resistance against dust and high-pressure water jets.
The supply current consumption is 40 mA, optimizing power efficiency in embedded systems.
The sensor offers a repeatability of ±0.1°, ensuring reliable real-time data.
The weight of the sensor is not specified in the provided data.
It is suitable for applications in automotive, industrial automation, and control systems due to its robust design and specifications.
This sensor originates from Germany, conforming to stringent quality and environmental standards.
