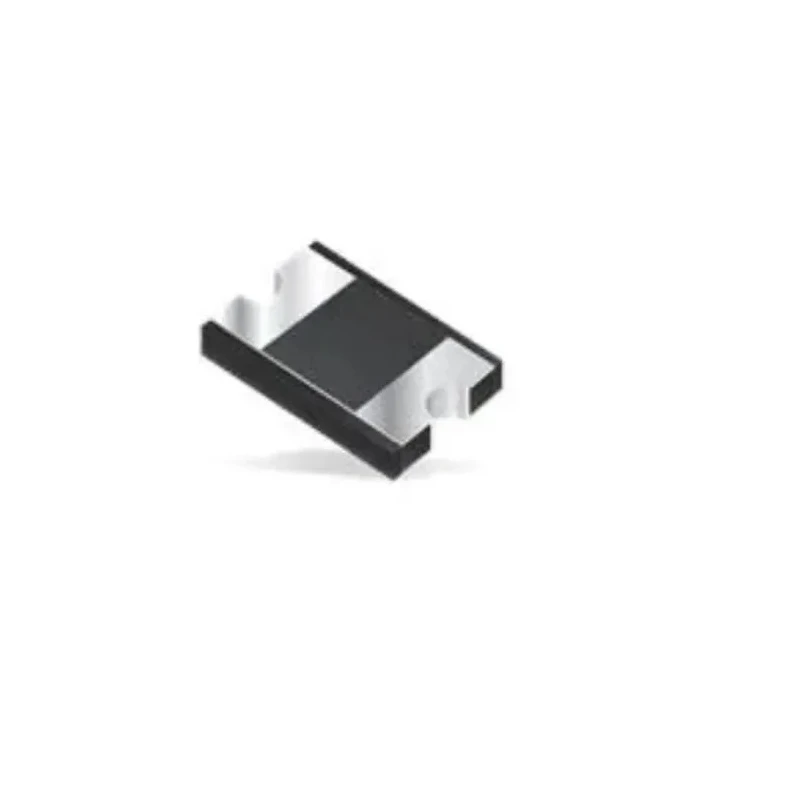

Bourns Low Loss Schottky Diode 400 V 1 A 2-Pin DO-214AC CD214A-S1G

Bourns CD214A-S1G Low Loss Schottky Diode is a surface mount device designed for rectification and high-efficiency applications, rated for 400 V peak reverse voltage and 1 A continuous forward current. This diode comes in a compact DO-214AC (SMA) package measuring 4.5 mm length, 2.2 mm width, and 1.16 mm height.

The diode features a low forward voltage drop of 1 V, resulting in low power dissipation and improved efficiency in power supply circuits and electronic equipment. Constructed with glass passivation, the device ensures reliable operation and long-term stability under harsh thermal conditions.

Operating temperature range supports extreme conditions from -65°C to 175°C, making it suitable for automotive, industrial, and commercial electronics applications. It also complies with the automotive standard AEC-Q101 for quality assurance in automotive systems.

Additional performance features include a peak non-repetitive forward surge current of 30 A, providing robustness during transient events, and a low peak reverse current leakage of 5 μA, enhancing overall circuit performance.

This diode offers a maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage is rated at 400 volts for high-voltage applications. The device features a low forward voltage drop of 1 volt for minimal power loss.

It is manufactured with a glass passivated rectifier construction for durability. Operating temperature ranges from -65°C to 175°C, suitable for demanding environments. Peak non-repetitive forward surge current capability is 30 amperes.

The compact DO-214AC (SMA) package has dimensions: length 4.5 mm, width 2.2 mm, height 1.16 mm. Designed to meet the automotive standard AEC-Q101, ensuring reliability in automotive applications. Low leakage peak reverse current of 5 microamperes enhances performance efficiency.

This diode is widely used in industrial, automotive, laboratory, and commercial electronics for rectification and protection roles. Its compact form factor and low power loss characteristics make it ideal for modern PCB designs and power supply modules.
