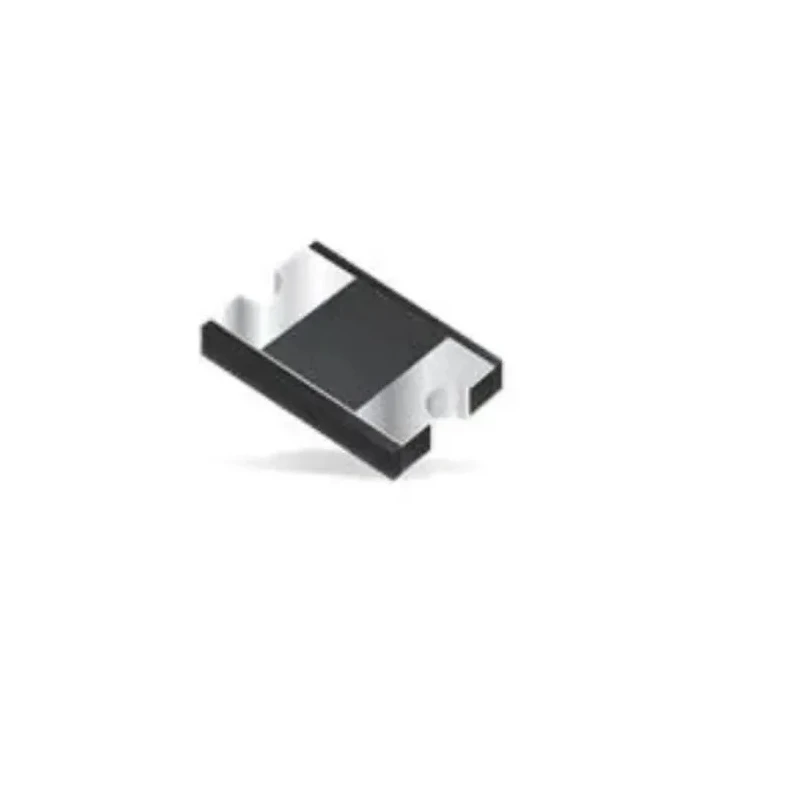

Bourns Low Loss 1600 V 1 A Surface Mount Diode DO-214AC Package CD214A-S1Y
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.16mm |
| Length | 4.5mm |
| Model | CD214A-S1Y |
| Width | 2.2mm |
| Mount Type | Surface |
| Series | CD214 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Single |
| Rectifier Type | Low loss |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
Key Features
- Offers a maximum continuous forward current of 1 ampere.
- Supports a peak reverse repetitive voltage of 1600 volts for high voltage applications.
- Features a low forward voltage drop of 1.1 volts, enhancing efficiency.
- Operates reliably over a wide temperature range from -65°C to 175°C.
- Compact dimensions with length 4.5 mm, width 2.2 mm, and height 1.16 mm.
- Incorporates glass passivated technology for enhanced reliability and performance.
- 2-pin configuration suitable for surface mount applications.
- Meets automotive standard AEC-Q101 for automotive-grade quality.
Product Description
Bourns CD214A-S1Y is a low loss Schottky diode designed for surface mount applications in the DO-214AC (SMA) package size. It is ideal for power rectification use cases requiring a continuous forward current up to 1 ampere and a peak reverse voltage rating of 1600 volts.
This device features a low forward voltage drop of 1.1 volts, enhancing circuit efficiency and reducing power loss in industrial, commercial, and automotive applications. The diode is glass passivated, improving longevity and stability under varied electrical stresses.
The diode operates within a broad temperature range from -65°C minimum to 175°C maximum, making it suitable for harsh environments and automotive systems compliant with AEC-Q101 automotive standards. Its compact footprint with dimensions of 4.5 mm length, 2.2 mm width, and 1.16 mm height optimizes PCB space usage.
Additional features include a peak reverse current of 5 microamperes, a peak non-repetitive forward surge current up to 30 amperes, and a reliable 2-pin configuration for easy PCB mounting. Its robust construction and glass passivated rectifier technology ensure low power loss, high efficiency, and stable operation for semiconductors and power electronics.
Maximum continuous forward current of 1 A. Peak reverse repetitive voltage rated 1600 V. Low forward voltage of 1.1 V. Operating temperature range: -65°C to 175°C. Compact DO-214AC package dimensions. Glass passivated for enhanced reliability.
Automotive grade AEC-Q101 compliant. Low peak reverse current of 5 μA. 2-pin surface mount package. Ideal for industrial, automotive, and power rectification applications.
This diode is suitable for industrial electronics, semiconductor circuits, automotive systems, power management, and rectifier implementations. Bourns products are known for their quality and performance in high-reliability applications.
Browse our range of Bourns Schottky Diodes and rectifiers on EnvMart for advanced electronic components tailored to demanding technical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Bourns CD214A-S1Y diode is 1 ampere.
This model has a peak reverse repetitive voltage rating of 1600 volts, making it suitable for high voltage applications.
The diode features a low forward voltage drop of 1.1 volts, which enhances efficiency in circuit designs.
It operates reliably over a wide temperature range from -65°C to 175°C, suitable for harsh environments.
The dimensions of the DO-214AC package are 4.5 mm in length, 2.2 mm in width, and 1.16 mm in height.
This diode has a 2-pin configuration, which is suitable for surface mount applications.
The Bourns CD214A-S1Y meets the automotive standard AEC-Q101, ensuring automotive-grade quality.
The peak reverse current for the CD214A-S1Y is 5 microamperes.
This model can handle a peak non-repetitive forward surge current of up to 30 amperes.
The Bourns CD214A-S1Y is classified as a low loss Schottky diode, enhancing circuit efficiency.
The diode is manufactured in India.
This diode is suitable for industrial electronics, semiconductor circuits, automotive systems, and power management applications.
