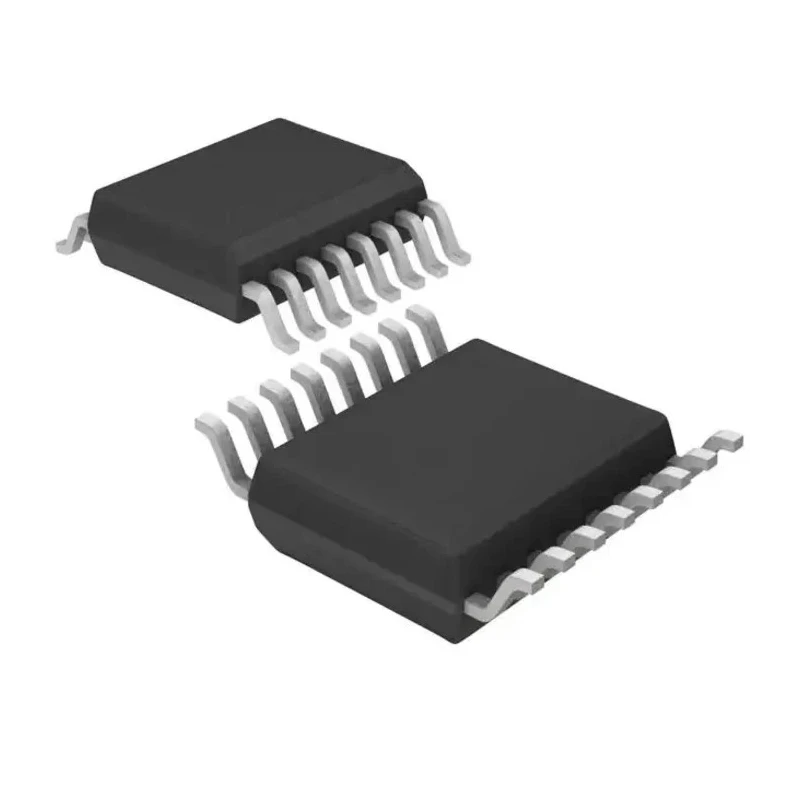

STMicroelectronics Operational Amplifier , 880 kHz Gain Bandwidth Product, 16-Pin TSSOP Package, 5.5V Maximum TSV635AIPT

STMicroelectronics TSV635AIPT is a quad channel operational amplifier engineered to deliver high performance with low power consumption in a compact 16-pin TSSOP surface-mount package. Featuring an 880 kHz gain bandwidth product, it ensures fast signal processing ideal for active filtering and sensor interface applications.

This device supports low supply voltages from 1.5 V up to 5.5 V, making it well suited for battery-operated and portable electronics requiring low power consumption of only 60 μA at 5 V typical. Its rail-to-rail input/output stages maximize signal dynamic range, allowing full utilization of the supply range.

With ultralow input bias currents as low as 1 pA and a low input offset voltage, the TSV635AIPT achieves precision in signal amplification for sensitive instrumentation and measurement circuits. A low-power shutdown mode reduces current to 5 nA, extending battery life in standby conditions.

Designed for automotive applications, this operational amplifier meets the rigorous AEC-Q100 qualification guaranteeing robustness across temperatures from -40°C to 125°C, suitable for industrial and automotive environments. The device’s compact size (5.1 x 4.5 x 1.2 mm) eases integration in high-density PCB designs.

Output current capability of 4 mA ensures it can drive moderate loads directly. These features make the TSV635AIPT ideal for use in sensor interfaces, portable instrumentation, active signal filtering, and automotive electronics requiring a balance of low noise, low offset, and high reliability.

Rail-to-rail input and output operation ensures maximum signal range. Low power consumption enables energy-efficient designs with longer battery life. Ultralow input bias current suitable for precision sensor and instrumentation circuits.

Low offset voltage reduces signal errors for enhanced accuracy. Shutdown mode offers ultra-low current to preserve power in inactive states. Automotive qualified (AEC-Q100) ensures reliability under harsh environmental conditions.

Compact 16-pin TSSOP package assists with compact PCB layouts. Wide operating temperature range accommodates diverse industrial and automotive applications. 880 kHz gain bandwidth product facilitates high-speed amplification tasks.

Output current capability supports moderate load driving applications.
