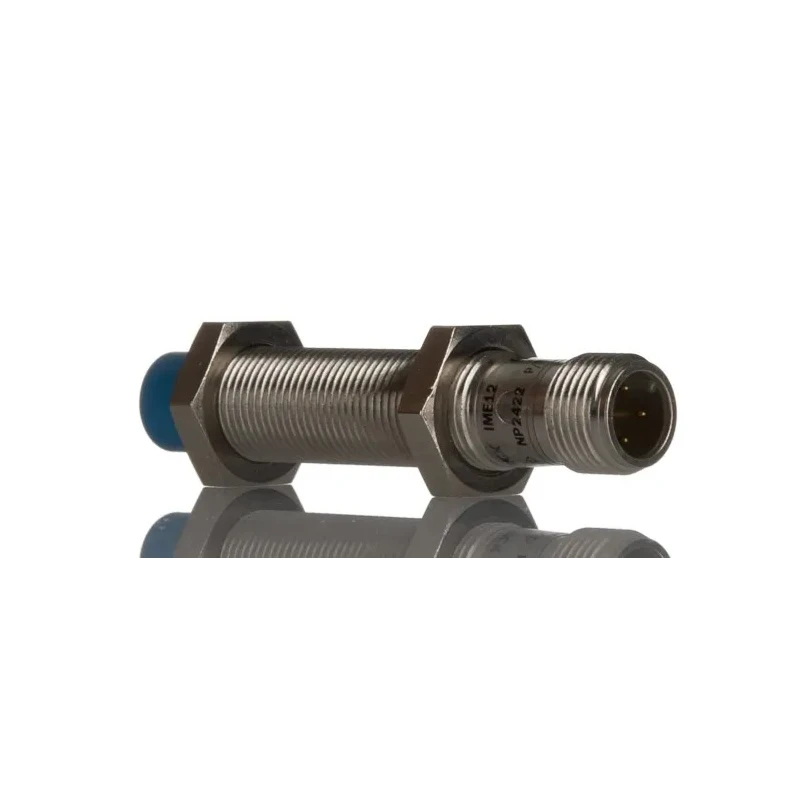

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 30 V DC 200mA IP67 IME12-08NNSZC0S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 65mm |
| Model | IME12-08NNSZC0S |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | NPN |
| Series | IME12-08NNSZC0S |
| Maximum Operating Temperature | 75°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 8mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- This sensor features an M12 x 1 threaded barrel design for secure mounting.
- It has an IP67 rated metal housing ensuring protection against dust and water.
- The sensor supports NPN output type with a maximum switching frequency of 2 kHz.
- Operates reliably in a temperature range from -25°C to +75°C.
- It offers non-flush mount capability with a 4-pin terminal connection.
- The sensor is unshielded and detects metal objects with high positioning accuracy.
- Its length is 65 mm with a width of 12 mm, suitable for industrial automation applications.
- Manufactured in Hungary with compliance to EN 60529 and EN 60947-5-2 standards.
Product Description
The SICK IME12-08NNSZC0S is a precision Threaded Barrel Inductive Proximity Sensor designed for industrial automation and control applications. Featuring an M12 x 1 metal housing with IP67 protection, this sensor is built to withstand harsh environments and ensure high reliability.
Operating at 30 V DC with a maximum switching current of 200 mA and maximum switching frequency of 2 kHz, it provides responsive and accurate metal detection up to an 8 mm sensing distance. Its unshielded design and NPN output type enable versatile deployment in machinery, assembly lines, and safety monitoring.
With a length of 65 mm and a 4-pin terminal, the sensor supports non-flush mounting. It functions across a broad temperature range from -25 °C to +75 °C, making it suitable for various environmental conditions.
Manufactured in Hungary, the sensor complies with stringent EN 60529 and EN 60947-5-2 standards, ensuring electrical safety and durability.
Common industrial applications include presence detection of metal parts, position monitoring in automation systems, end position detection in conveyors, and speed monitoring in escalators. The rugged and precise performance of this sensor contributes to high machine availability and reduced downtime in manufacturing and processing plants.
This sensor features an M12 x 1 threaded barrel design for secure mounting. It has an IP67 rated metal housing ensuring protection against dust and water. The sensor supports NPN output type with a maximum switching frequency of 2 kHz.
Operates reliably in a temperature range from -25°C to +75°C. It offers non-flush mount capability with a 4-pin terminal connection. The sensor is unshielded and detects metal objects with high positioning accuracy. Its length is 65 mm with a width of 12 mm, suitable for industrial automation applications.
Manufactured in Hungary with compliance to EN 60529 and EN 60947-5-2 standards. Explore the range of SICK sensors at EnvMart for reliable industrial sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 8 mm for metal objects.
It operates reliably within a temperature range of -25 °C to +75 °C.
This sensor supports an NPN output type.
The maximum switching frequency for this sensor is 2 kHz.
The housing of this sensor has an IP67 rating, ensuring protection against dust and water.
The sensor features an M12 x 1 threaded barrel design for secure mounting.
The sensor has a length of 65 mm and a width of 12 mm.
It utilizes a 4-pin terminal connection.
No, this model is designed for non-flush mounting.
It complies with EN 60529 and EN 60947-5-2 standards.
This inductive proximity sensor is designed to detect metal objects.
This sensor is manufactured in Hungary.
