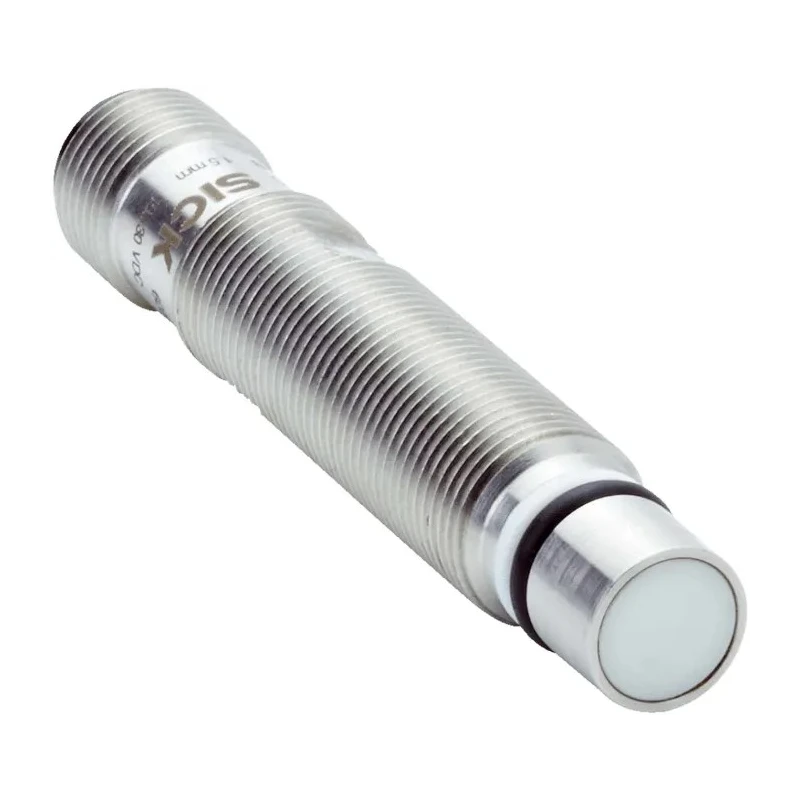

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 30 V DC 200mA IMP12-1B5PSVC0B

SICK IMP12-1B5PSVC0B Threaded Barrel Inductive Proximity Sensor M12 x 1, PNP output, 30 V DC, 200mA, is a robust sensor designed to detect metal materials in harsh industrial environments. It features a threaded barrel body style with a compact length of 56mm and width of 12mm, enabling easy flush mounting in tight spaces.

The sensor’s stainless steel housing and a high-performance ceramic active surface provide excellent resistance against mechanical stress and corrosion. It is pressure resistant up to 500 bar and gas-tight, making it suitable for hydraulic cylinder end position detection applications. The device is rated IP68, ensuring protection against dust and water ingress.

Designed to operate within a minimum temperature of -25°C and maximum of 80°C, this sensor supports a switching frequency of 600Hz, enabling fast and accurate sensing for dynamic processes. The PNP output configuration allows simple integration with industrial control systems. Additionally, the sensor is shielded to minimize electromagnetic interference and improve signal reliability.

Typical industrial uses include end position detection for piston strokes, controlled piston deceleration, and collision prevention, improving piston service life in hydraulic systems. With up to 1 million pressure cycles tested, it offers remarkable durability and significantly reduces maintenance costs.

Thread size M12 x 1 for versatile mounting options. Compact length of 56mm suitable for flush mount applications. High IP68 enclosure rating for robust protection in harsh environments. Pressure resistant up to 500 bar with gas-tight front design.

Operating temperature range from -25°C to 80°C. PNP output with 4-pin terminal for standard electrical connection. Maximum detection range of 1.5mm for precise metal sensing. Switching frequency of 600Hz for rapid response.

Stainless steel housing and ceramic active surface enhance durability. Compliance with EN 60947-5-2 standards for safety and performance.

This SICK Inductive Proximity Sensor series supports multiple sizes like M5, M8, M12, and M14, providing flexibility for various automation and control gear requirements. The sensor’s advanced ASIC technology ensures high system throughput and excellent load capability, suitable for demanding industrial and manufacturing environments.
