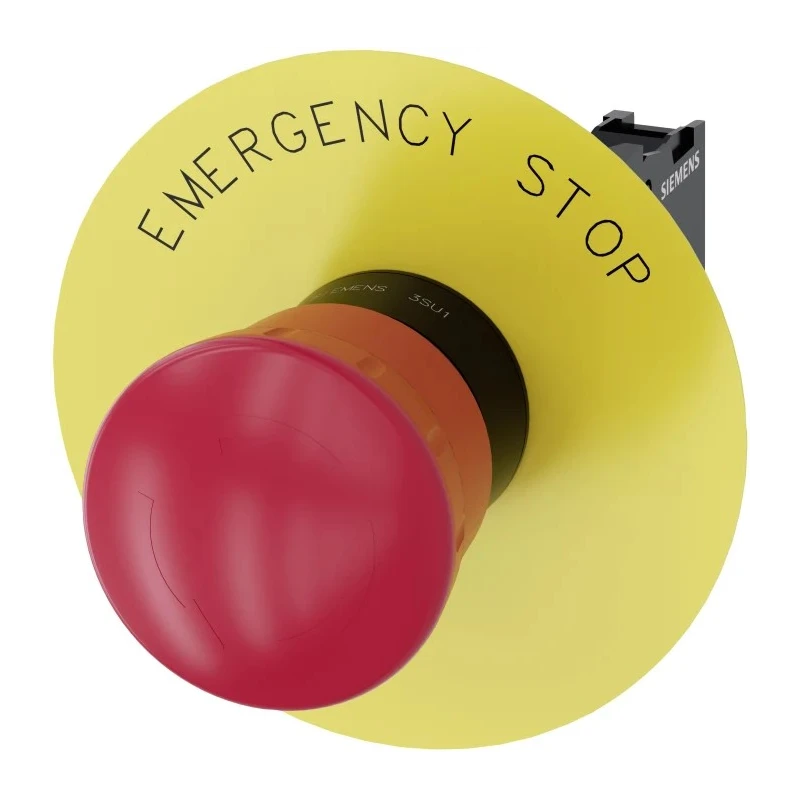

Siemens SIRIUS ACT Series Latching Emergency Stop Push Button Panel Mount 22mm Cutout Red Mushroom 3SU1100-1HB20-1PG0
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Colour | Red |
| Length | 40mm |
| Model | 3SU1100-1HB20-1PG0 |
| Depth | 70.6mm |
| IP Rating | IP66, IP67, IP69 |
| Width | 30mm |
| Mount Type | Panel Mount |
| Housing Material | Plastic |
| Series | SIRIUS ACT 3SU11 |
| Contact Configuration | 2 NC |
| Switch Configuration | 2 NC |
| Head Style | Mushroom |
| Head Diameter | 40mm |
| Terminal type | Screw |
| Contact DC Voltage | 500V dc |
| Contact AC Voltage | 500V ac |
| Better World Claim | Extended Product Life, Low Carbon Manufacture |
| Contact Current | 10A |
| Cutout Diameter | 22mm |
| Safety Contacts | 2 NC |
| Number of Auxiliary Contacts | 2 |
| Push Button Actuation | Latching |
| Push Button Material | Plastic |
Key Features
- Red mushroom-style push button for high visibility.
- Robust plastic housing designed for durability and industrial environments.
- Latching push-button actuation ensuring reliable emergency stop operation.
- Panel mount design with 22mm mounting cutout diameter for easy integration.
- Two normally closed (2 NC) safety contacts for secure circuit interruption.
- Rated for 500V AC/DC voltage and 10A contact current capacity.
- Screw-type terminals for secure and standard electrical connections.
- Compliant with international safety standards including IEC 61508 and EN ISO 13850.
Product Description
Siemens 3SU1100-1HB20-1PG0 is a high-quality SIRIUS ACT series latching emergency stop push button designed for industrial safety applications. Featuring a panel mount installation with a 22mm cutout diameter, the device includes a large 40mm diameter red mushroom-style actuator for rapid and clear emergency signaling.
The push button operates on a latching mechanism with two normally closed safety contacts (2 NC), rated for 500V AC/DC and 10A current, making it suitable for robust emergency shutdowns in manufacturing, automation, and control systems.
Equipped with IP66, IP67, and IP69 ingress protection ratings, this push button is capable of withstanding dust, water jets, and high-pressure cleaning, ensuring reliable performance in harsh industrial environments.
Constructed from durable plastic materials and designed with a screw terminal connection, the switch offers easy installation and long service life. The quick-rotate unlocking feature enhances user safety by allowing rapid reset after actuation.
Red mushroom push button for high visibility. Panel mount with 22mm cutout diameter. Latching operation mechanism. Two normally closed contacts rated for 500V and 10A. IP66, IP67, and IP69 ingress protection ratings. Compliant with IEC 61508 and EN ISO 13850 safety standards.
Screw terminal type for reliable wiring connections. Durable plastic housing for industrial use.
This Emergency Stop Push Button is ideal for use in manufacturing plants, automation systems, and any environment requiring rapid and reliable emergency shutdown capability. It supports industrial safety compliance and enhances machine operator protection.
Explore more Siemens automation and signaling products on EnvMart for comprehensive industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a contact current capacity of 10A.
The push button is rated for 500V AC and 500V DC.
This unit has IP66, IP67, and IP69 ingress protection ratings, making it suitable for harsh environments.
It is designed for panel mount installation with a cutout diameter of 22mm.
It features two normally closed safety contacts (2 NC).
The head diameter of this model is 40mm.
The housing is constructed from durable plastic materials.
This model operates on a latching mechanism.
It is compliant with IEC 61508 and EN ISO 13850 safety standards.
The overall depth is 70.6mm.
It uses screw-type terminals for secure electrical connections.
It is suitable for use in manufacturing plants, automation systems, and environments requiring rapid emergency shutdown capability.
