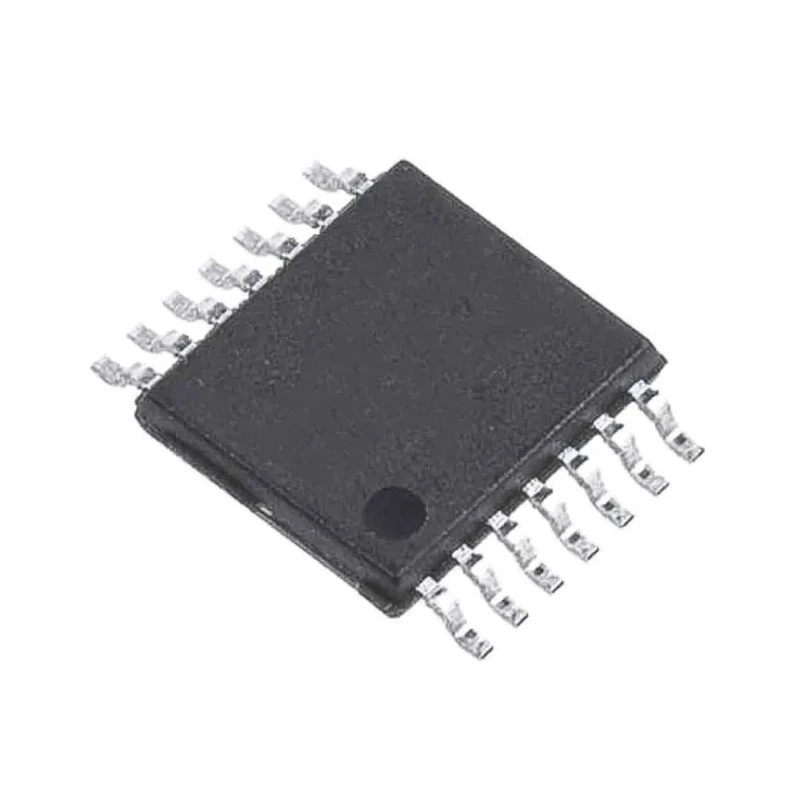

STMicroelectronics Operational Amplifier Quad Channel 20 MHz Gain Bandwidth 5.5V 14-Pin TSSOP TSV994AIPT

STMicroelectronics TSV994AIPT is a quad channel operational amplifier designed for advanced industrial and electronic applications. This device features rail-to-rail input and output functionality allowing it to operate efficiently at low voltage levels between 2.5 V and 5.5 V, making it ideal for battery-powered and portable electronics.

The TSV994AIPT offers a high gain bandwidth of 20 MHz and a slew rate of 10 V/μs, providing fast signal processing capabilities. Its ultra-low input bias current of 100 picoamperes and low input offset voltage ensure high accuracy and signal fidelity in sensor interfaces and active filtering applications.

This operational amplifier supports output currents up to 35 mA and is stable for gains above 4 with capacitive loads up to 100 pF, ensuring reliable performance across various circuit configurations.

Engineered to withstand harsh environments, the TSV994AIPT operates across a wide temperature range from -40°C to 125°C and includes robust internal ESD protection rated at 5 kV. It complies with RoHS directives and meets the automotive industry standard AEC-Q100, confirming its quality and reliability in critical applications.

The compact 14-pin TSSOP package with dimensions of 5.1 mm length, 4.5 mm width, and 1.05 mm height facilitates easy integration into high-density circuit boards. Low voltage operation and rail-to-rail input/output functionality.

High gain bandwidth product of 20 MHz for high-speed amplification. Four independent operational amplifiers in a single package. Supply voltage range of 2.5 V to 5.5 V for flexible power options. Ultra-low input bias current and low offset voltage for precision applications.

High output current of up to 35 mA suitable for varied loads. Fast slew rate enabling quick signal response. Wide operating temperature range suitable for industrial and automotive uses. Robust ESD protection and adherence to safety standards.

Compliance with RoHS and automotive AEC-Q100 standards ensuring safety and reliability.

This amplifier is ideally suited for industrial, automotive, and portable electronic design applications requiring efficient, precise, and robust analog signal processing. Explore similar Operational Amplifiers and semiconductor components in the Electronics & Electricals category on EnvMart to find complementary and compatible products.
