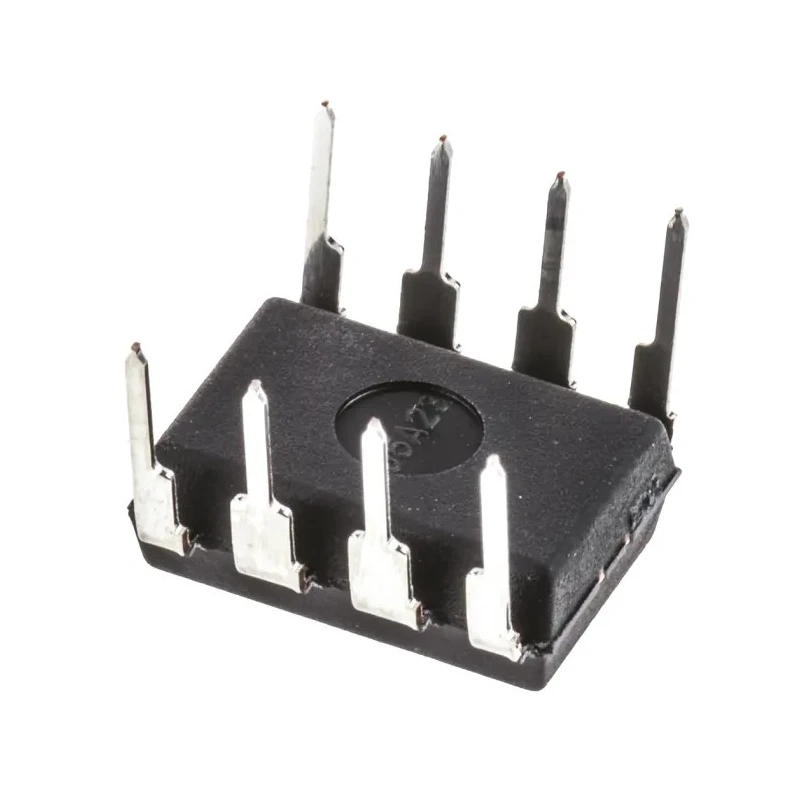

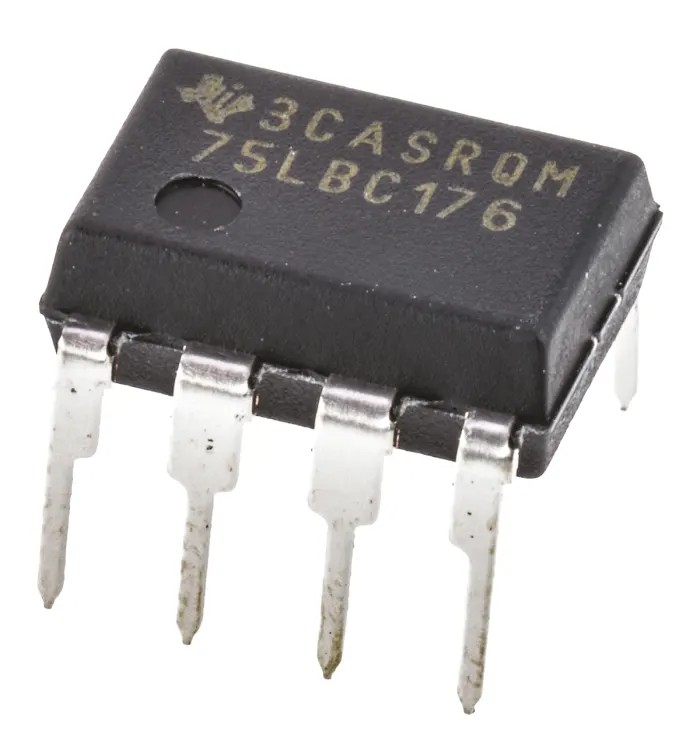

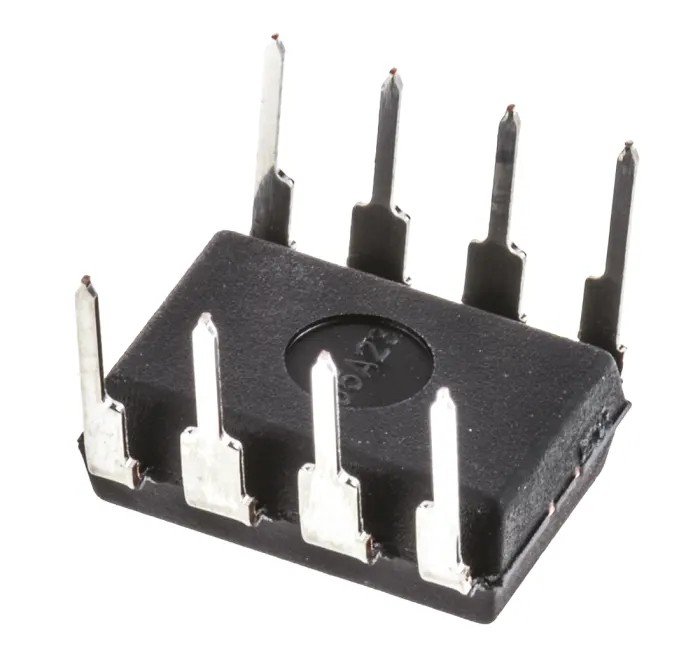

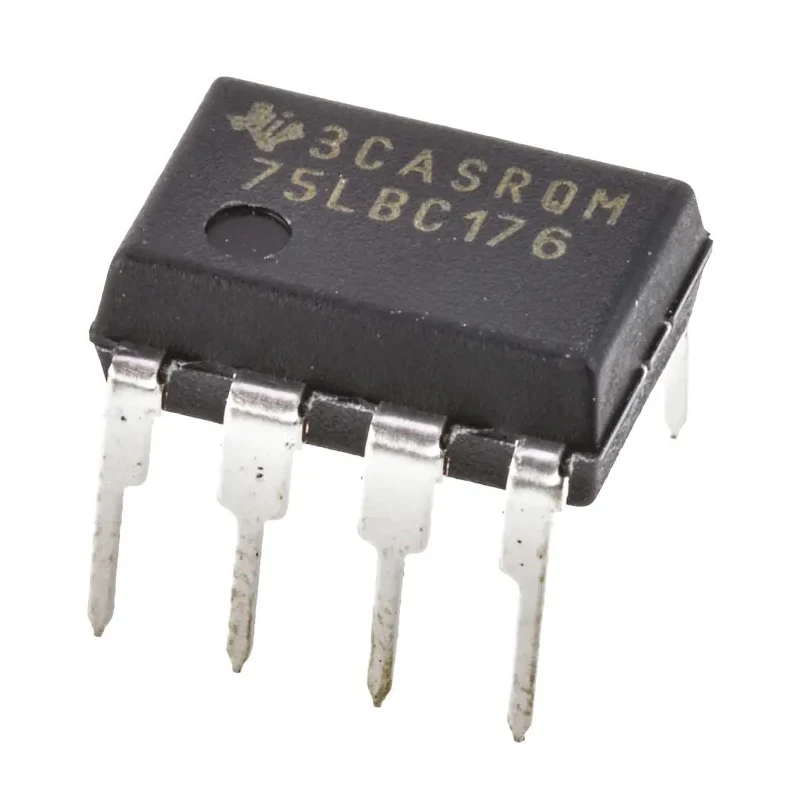

Texas Instruments Line Transceiver, Differential, Non-Inverting, 8-Pin PDIP SN75LBC176P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 10.16mm |
| Model | SN75LBC176P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | Differential |
| Series | SN75LBC176 |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 33ns |
| Supply Current | 1.75mA |
| Maximum Low Level Output Current | 60mA |
| Texas Instruments SN75LBC176P, Line Transceiver, ISO 8482, 5 V, 8-Pin PDIPBrand | Texas Instruments |
Key Features
- Operates with a supply voltage range of 4.75V to 5.25V.
- Features 1 channel for differential input and output signals.
- Supports through hole mounting with PDIP package.
- Maximum propagation delay time at CL is 33 ns ensuring high speed data transmission.
- Operates reliably from 0°C to 70°C operating temperature range.
- Maximum output current is ±60mA for both high and low levels.
- Low supply current consumption of 1.75mA enhances efficiency.
- Complies with automotive standard AEC-Q100 for high reliability.
Product Description
Texas Instruments SN75LBC176P is a high-speed RS-485 line transceiver designed for differential, non-inverting signal transmission applications. It is packaged in an 8-pin PDIP through-hole package suitable for insertion into printed circuit boards for industrial and communication uses.
This device operates on a supply voltage between 4.75V and 5.25V and features a maximum propagation delay of 33ns, enabling fast data communication. It supports single-channel differential input and output to maintain signal integrity in noisy environments.
The SN75LBC176P complies with automotive standard AEC-Q100, ensuring its robustness and suitability for automotive and other demanding industrial applications. Its compact size with length 10.16mm, width 6.6mm, and height 5.08mm allows versatile use in constrained spaces.
The device provides output currents up to ±60mA for high and low levels, suitable for driving RS-485 networks. Its low supply current of 1.75mA contributes to energy efficiency in embedded systems.
Operates with supply voltage range of 4.75V to 5.25V ensuring compatibility with standard 5V systems. Supports differential input and output for noise-resistant communication. Packaged in 8-pin PDIP through-hole format for easy mounting.
High-speed operation with propagation delay of 33ns suitable for 10 Mbit/s data rates. Wide operating temperature range from 0°C to 70°C for industrial environments. Compliance with Automotive AEC-Q100 standard ensures high reliability.
Compact dimensions of 10.16mm x 6.6mm x 5.08mm for efficient PCB space utilization. Low supply current consumption reduces power requirements.
Widely applied in industrial, telecommunications, automotive, and embedded system environments, the SN75LBC176P enables robust and reliable RS-485 data transmission. Its design facilitates improved production efficiency and system performance.
Explore more semiconductor line transceivers and interface ICs on EnvMart for your electronic component sourcing needs.
Explore more products in our Line Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of 4.75V to 5.25V, ensuring compatibility with standard 5V systems.
The maximum propagation delay time at CL for the SN75LBC176P is 33 ns, allowing for high-speed data transmission.
It operates reliably within a temperature range of 0°C to 70°C, making it suitable for various industrial environments.
The SN75LBC176P supports a single channel for differential input and output signals.
This model supports through-hole mounting with an 8-pin PDIP package, making it suitable for insertion into printed circuit boards.
The maximum output current for both high and low levels is ±60mA, suitable for driving RS-485 networks.
It has a low supply current consumption of 1.75mA, contributing to energy efficiency in embedded systems.
The dimensions of this model are 5.08mm in height, 10.16mm in length, and 6.6mm in width, allowing for efficient PCB space utilization.
This line transceiver complies with the automotive standard AEC-Q100, ensuring high reliability for automotive applications.
It supports differential, non-inverting signal transmission, maintaining signal integrity in noisy environments.
This model is widely applied in industrial, telecommunications, automotive, and embedded system environments for robust RS-485 data transmission.
The SN75LBC176P belongs to the SN75 logic family, designed for bus transceiver applications.
