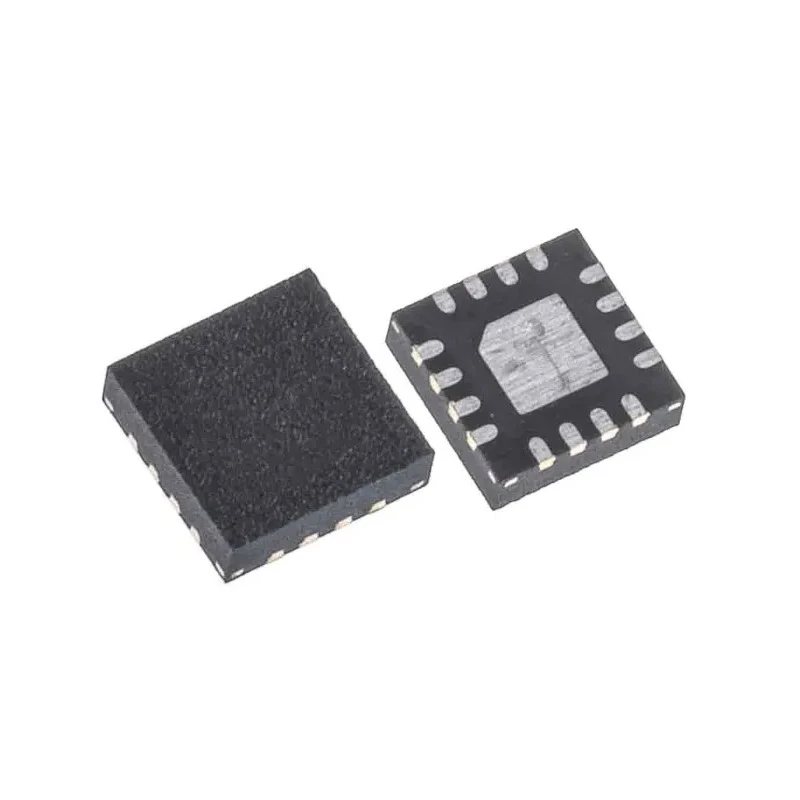

STMicroelectronics Operational Amplifier 1.3 MHz Gain Bandwidth Product 16-Pin QFN TSV854IQ4T
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.95mm |
| Length | 3.1mm |
| Model | TSV854IQ4T |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | TSV854 |
| Output Current | 70mA |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| GBP - Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 110 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 50 nA |
| Low supply voltage | 2.3 V - 5.5 V |
| Low offset voltage | 0.8 mV max at 25 °C |
| Extended temperature range | -40 °C to 125 °C |
Key Features
- Low supply voltage range from 2.3 V to 5.5 V ensures flexible power compatibility.
- Quad channel design with 16 pins supports multiple high-performance applications.
- Wide operating temperature range from -40°C to 125°C suitable for harsh environments.
- Low offset voltage and input bias current improve signal accuracy and stability.
- Compact 3.1 mm x 3.1 mm x 0.95 mm package size for space-constrained PCB designs.
- Low power consumption of 180 μA max at 5 V reduces energy usage in battery-powered devices.
- Features automotive standard AEC-Q100 qualification ensuring reliability in automotive circuits.
- Rail-to-rail output swing enables use in low voltage, single-supply designs.
Product Description
STMicroelectronics TSV854IQ4T is a quad operational amplifier designed with a gain bandwidth product of 1.3 MHz, packaged in a compact 16-pin QFN surface mount package measuring 3.1 mm by 3.1 mm with a height of 0.95 mm. Operating from a low supply voltage range of 2.3 V to 5.5 V, this device is ideal for low voltage and battery-powered applications requiring a rail-to-rail output swing for maximum dynamic range.
This amplifier offers excellent electrical characteristics including a low input offset voltage of 0.8 mV maximum at 25 °C, an input bias current of 110 nA, and an output current capability of 70 mA. The slew rate of 0.6 V/μs and low power consumption of 180 μA ensure both efficiency and performance in signal conditioning tasks.
Designed to meet automotive grade AEC-Q100 standards and certified RoHS compliant, the TSV854IQ4T withstands harsh temperature environments from -40 °C up to 125 °C, making it suitable for automotive, industrial, and commercial electronic applications.
The operational amplifier supports a shutdown mode that reduces supply current to a maximum of 50 nA at 25 °C, which is useful for power-sensitive designs. Its compact QFN package minimizes PCB space and enhances thermal dissipation.
Low supply voltage range enables versatile power source usage. Quad channels increase circuit integration and reduce component count. Wide operating temperature range suits automotive and industrial environments. Low input offset voltage and bias current enhance precision and signal fidelity.
Small QFN package suits compact, high-density circuit boards. Low quiescent current extends battery life in portable devices. Automotive standard AEC-Q100 ensures robust reliability. Rail-to-rail output for optimized signal swing in single-supply systems.
This Operational Amplifier is widely applicable across industrial control systems, automotive electronics, audio processing, instrumentation, and general-purpose amplification tasks. EnvMart offers this high-performance component supporting advanced designs demanding low voltage operation and high precision.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSV854IQ4T has a gain bandwidth product of 1.3 MHz.
It operates within a supply voltage range of 2.3 V to 5.5 V.
This operational amplifier can provide a maximum output current of 70 mA.
It can operate in a temperature range from -40 °C to 125 °C.
The QFN package measures 3.1 mm in length and width, with a height of 0.95 mm.
The input offset voltage is a maximum of 0.8 mV at 25 °C.
Yes, it is qualified according to the automotive standard AEC-Q100.
The input bias current is specified at 110 nA.
The slew rate is 0.6 V/μs.
This operational amplifier is designed for surface mounting.
Yes, it is certified as RoHS compliant.
It is suitable for automotive, industrial, and commercial electronic applications, including audio processing and instrumentation.
