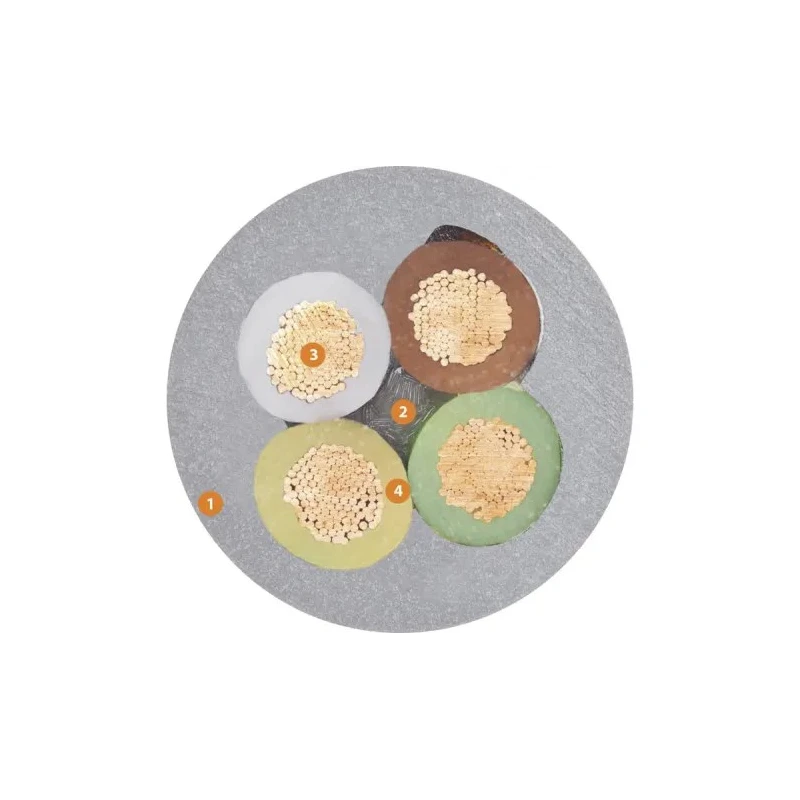

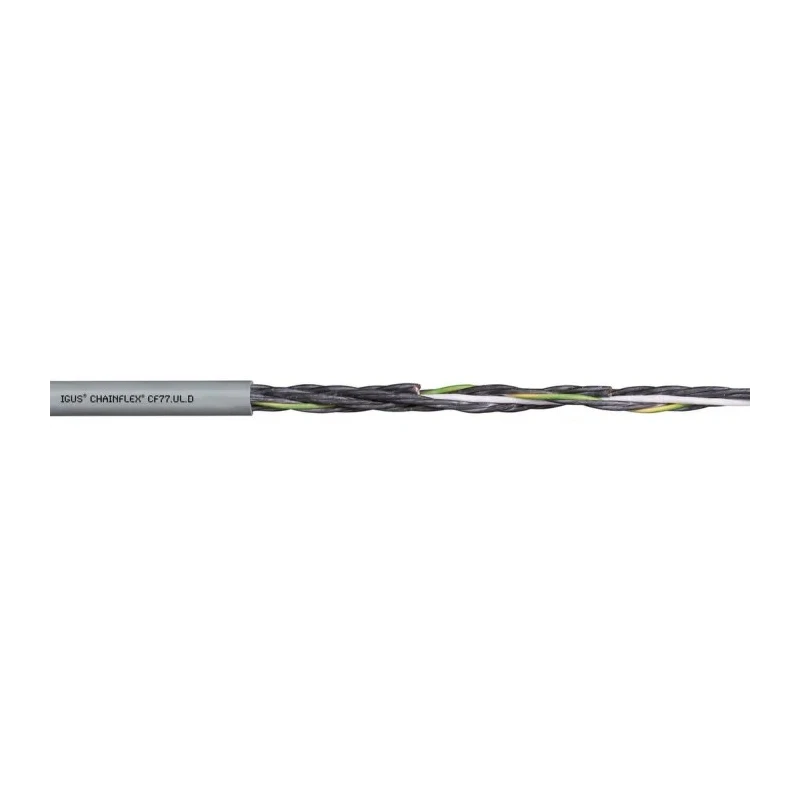

Igus chainflex CF77.UL.D Control Cable, 4 Cores, 2.5mm² 14 AWG, Unscreened, 25m, Grey Polyurethane Sheath CF77.UL.25.04.D
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | Igus |
| Model | CF77.UL.25.04.D |
| Cable Length | 25m |
| Series | chainflex CF77.UL.D |
| Outside diameter | 9.5mm |
| Maximum Operating Temperature | 80°C |
| Outer Jacket | PUR |
| Number Of Cores | 4 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -25°C |
| Jacket Material | Polyurethane |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 14AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 2.5mm² |
Key Features
- Constructed with stranded copper conductors for flexibility and reliable electrical performance.
- Features a grey polyurethane outer jacket which is coolant resistant, notch-resistant, hydrolysis and microbe resistant.
- Unscreend cable with flame retardant, halogen-free, silicone-free, and UV-resistant properties.
- Designed for applications requiring up to 1kV voltage rating and operates within -25°C to 80°C temperature range.
- Armoured construction suitable for indoor and outdoor use, including unsupported travel distances and gliding applications up to 100 m.
- Compliant with various international standards and approvals such as CE, cRUus, CSA, DIN EN 50363-4-1, IEC 60332-1-2, UL, and NFPA 79.
- Ideal for use in machining centres, machine tools, packaging industry, handling systems, and refrigerating areas.
Product Description
The Igus chainflex CF77.UL.D control cable model CF77.UL.25.04.D is a high-performance industrial cable designed for demanding environments. It features 4 cores with a 2.5mm² (14 AWG) conductor size, constructed from stranded copper to provide excellent flexibility and conductivity. The outer jacket is grey polyurethane (PUR), offering enhanced resistance to coolant, notching, hydrolysis, microbes, and UV exposure, making it suitable for harsh indoor and outdoor conditions.
This control cable is unscreened, armoured, and rated for a maximum voltage of 1kV. It operates within a broad temperature range from -25°C to 80°C, supporting a variety of industrial applications including machining centres, machine tools, storage and retrieval systems, packaging industry, handling equipment, and refrigerated environments.
The chainflex CF77.UL.D is flame retardant, halogen-free, and silicone-free, complying with strict safety standards such as CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, IEC 60332-1-2, NFPA 79, UL, and VW-1. Its armoured and rugged design enables nearly unlimited resistance to oils and supports unsupported travel distances and gliding applications up to 100 meters.
This cable is engineered for longevity and reliability in control environments where flexibility and durability are critical. Its PUR outer jacket ensures resistance to mechanical stress and environmental factors to maintain performance in automation, electrical, and industrial settings.
Stranded copper conductor material for optimal conductivity and flexibility. Grey polyurethane jacket providing coolant resistance, hydrolysis resistance, and notch protection. Flame retardant and halogen-free for enhanced safety compliance.
Rated for 1kV voltage and operating temperature range from -25°C to 80°C. Armoured and unscreened construction suitable for heavy duty applications. Compliance with multiple international safety and quality standards. Application in machining centres, packaging, handling, and refrigeration industries.
Choose the Igus chainflex CF77.UL.D Control Cable for durable, reliable performance in demanding industrial control and automation applications. Explore more cables and industrial automation products from EnvMart for your technical and operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This control cable is rated for a maximum voltage of 1kV.
It operates within a temperature range of -25°C to 80°C.
This model features 4 cores.
The outer jacket is made of grey polyurethane (PUR).
The outside diameter of this control cable is 9.5mm.
This cable is unscreened.
It uses stranded copper conductors for flexibility and conductivity.
It is suitable for applications in machining centres, machine tools, packaging industry, handling systems, and refrigerated areas.
The cable is flame retardant, halogen-free, and silicone-free.
The length of this control cable is 25 meters.
It complies with various international standards including CE, cRUus, CSA, DIN EN 50363-4-1, IEC 60332-1-2, UL, and NFPA 79.
The conductors in this model are sized at 14 AWG.
