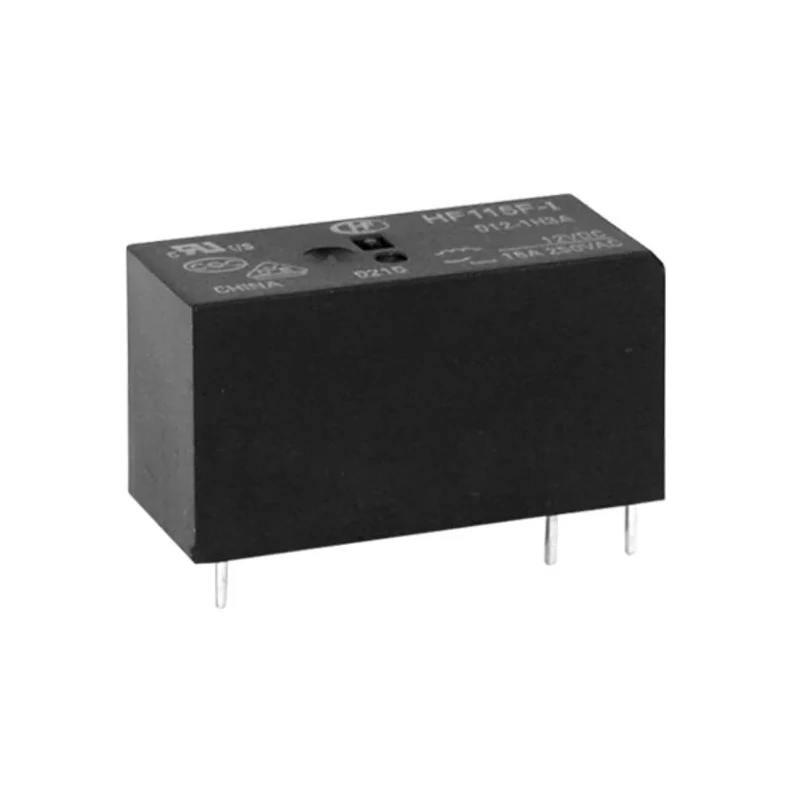

Hongfa Europe GMBH PCB Power Relay 5V Coil Voltage 16A Switching Current 1 NO Contact Configuration HF115F-I/005-1H3AF(610)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.7mm |
| Length | 29mm |
| Model | HF115F-I/005-1H3AF(610) |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF115F-I |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 1 NO |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 62Ω |
| Coil Voltage | 5V |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V |
| Coil Power | 400mW |
| Outline Dimensions | (29.0 x 12.7 x 15.7) mm |
| Creepage distance | 10mm |
| High inrush | TV-5 80A (NO contact, at 125VAC) |
Key Features
- The relay is designed for PCB mounting with PCB pin terminals.
- It supports switching DC voltage up to 300V and AC voltage up to 440V.
- Coil resistance is 62 ohms with a coil power consumption of 400mW.
- Operating temperature range is from -40°C to 85°C ensuring wide environmental compatibility.
- Constructed with silver alloy contact material and offers contact resistance as low as 100 milliohms.
- The relay has a compact size with outline dimensions of 29.0 x 12.7 x 15.7 mm (LxWxH).
- Designed to meet RoHS environmental standards for compliance and safety.
- Creepage distance of 10 mm provides enhanced insulation and safety.
Product Description
Hongfa Europe GMBH HF115F-I/005-1H3AF(610) PCB Power Relay is a high-performance power relay designed for electronic and electrical applications requiring reliable switching at 5V coil voltage and 16A switching current. It features a single normally open (1 NO) contact configuration ideal for compact PCB mounting using PCB pin terminals.
Its robust design allows operation in harsh environments with a minimum operating temperature of -40°C and maximum of 85°C. The relay can switch DC voltages up to 300V and AC voltages up to 440V, supporting a switching power of up to 4 kVA. The coil resistance is precisely 62 ohms, with coil power consumption at 400mW, ensuring efficient operation with minimal power loss.
Constructed with silver alloy contacts, the relay provides excellent contact conductivity and reliability, with a contact resistance of only 100 milliohms. Its physical dimensions measure 29.0 mm in length, 12.7 mm in width, and 15.7 mm in height, making it a compact solution for high-density PCB layouts.
Additional technical benefits include a high inrush current capacity of TV-5 80A on the normally open contact at 125VAC, enhancing performance during surges and transient states. The relay complies with RoHS standards, ensuring it is environmentally friendly and safe for use in various industrial and commercial electrical applications. It also features a creepage distance of 10 mm, improving insulation and reducing the risk of electrical shorts.
The relay suits industries such as industrial automation, manufacturing electrical control panels, HVAC systems, and power management circuits. It is ideal for PCB mounted circuit designs requiring durable, efficient switching components capable of handling significant current loads.
The relay’s slim profile and reliable electrical specs make it a versatile component for power relay applications in commercial and industrial settings. Discover more products in the Power Relay category and explore Hongfa Europe GMBH’s complete range of high-performance relays here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A.
The outline dimensions are 29.0 mm in length, 12.7 mm in width, and 15.7 mm in height.
It requires a coil voltage of 5V.
This relay features a single normally open (1 NO) contact configuration.
It can switch DC voltages up to 300V and AC voltages up to 440V.
The coil power consumption is 400mW.
The contact resistance is as low as 100 milliohms.
The operating temperature range is from -40°C to 85°C.
The contacts are constructed from silver alloy material.
The creepage distance is 10 mm, enhancing insulation and safety.
The relay is manufactured in China.
It is suitable for applications in industrial automation, electrical control panels, HVAC systems, and power management circuits.
