ROHM Digital Transistor, 50 V Maximum Collector Emitter Voltage, 100 mA Maximum Continuous Collector Current DTC114ECAT116

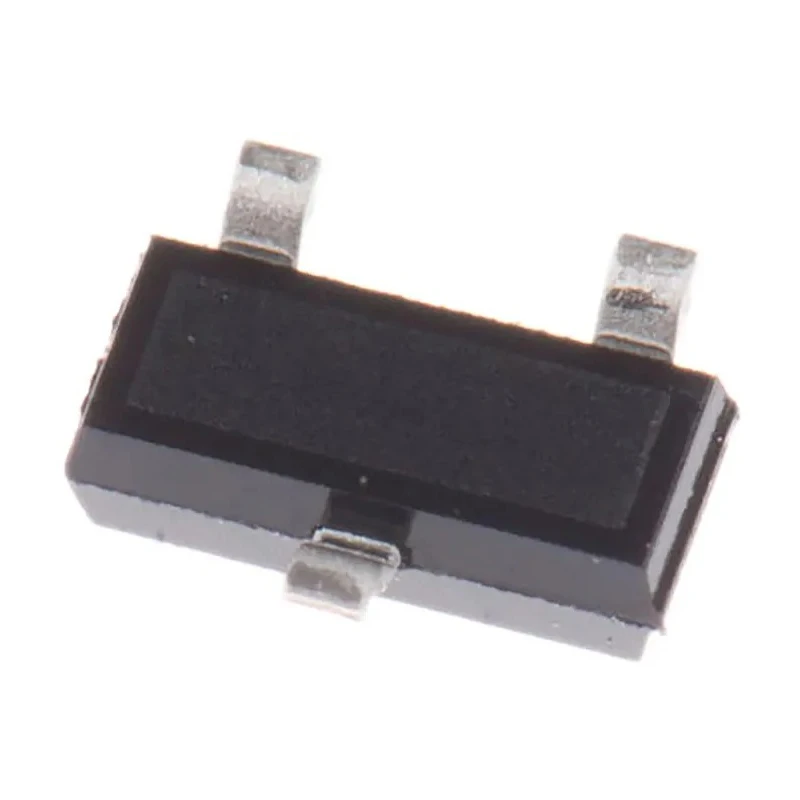

ROHM DTC114ECAT116 is a high-quality digital transistor featuring an NPN transistor polarity and a maximum collector emitter voltage of 50 V, designed specifically for digital and switching applications. It is housed in a small SOT-23 surface mount package that measures 3.1 mm in length, 1.5 mm in width, and 1.2 mm in height, making it suitable for compact electronic assemblies.

It operates with a common emitter configuration and supports a continuous collector current up to 100 mA with a maximum power dissipation of 200 mW. The transistor exhibits a minimum DC current gain (hFE) of 30, providing solid switching performance in standard digital circuits. The maximum emitter base voltage is 50 V, and it supports operation up to 150°C, ensuring durability in demanding environments.

The DTC114ECAT116 features integrated resistors allowing it to be easily driven directly from digital sources without additional external resistors, optimizing PCB space and simplifying circuit design.

This transistor finds applications in industrial machinery, communication devices, automation systems, and testing / measurement equipment where reliable switching is essential. Compact SOT-23 surface mount package for easy PCB integration.

50 V maximum collector emitter voltage for high-voltage digital switching. 100 mA maximum continuous collector current suitable for control applications. Integrated resistors built-in for simplified circuit design. Wide operating temperature range up to 150°C for industrial reliability.

Minimum DC current gain of 30 ensures effective switching performance. Common emitter transistor configuration for general purpose use. Dimensions: 3.1 mm length, 1.5 mm width, 1.2 mm height.

This ROHM Digital Transistor model DTC114ECAT116 provides an ideal solution for electronic component suppliers and design engineers looking for robust digital NPN transistor components. Browse the Electronics & Electricals Semiconductor category on EnvMart for similar semiconductors and discrete components.
