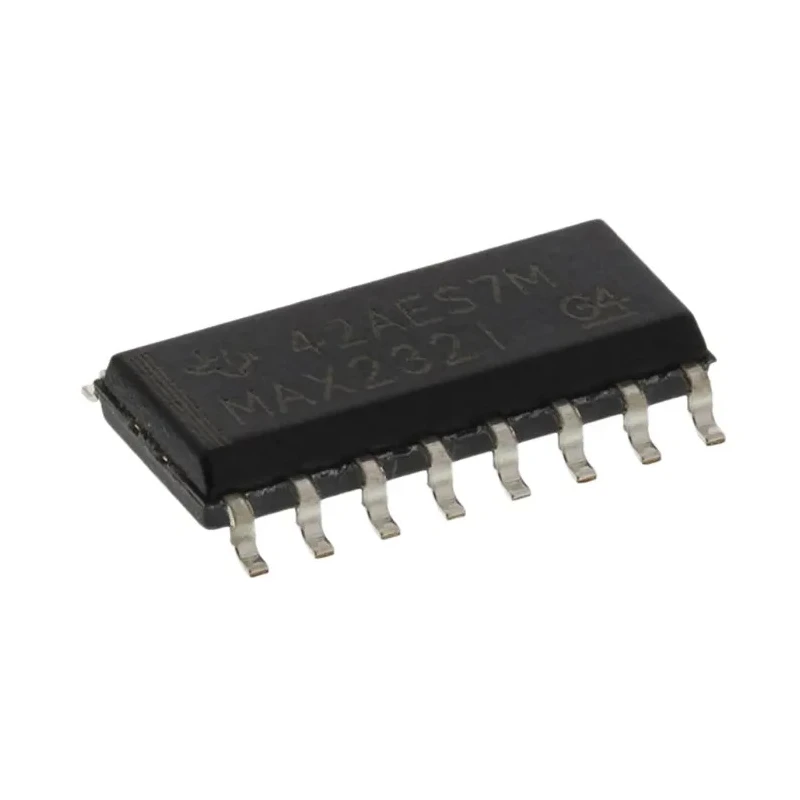

Texas Instruments 2-Channel RS-232 Line Transceiver CMOS Inverting 16-Pin SOIC MAX232ID
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 32mm |
| Length | 340.5mm |
| Model | MAX232ID |
| Width | 336.1mm |
| Mount Type | Surface |
| Output type | CMOS |
| Series | MAX232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 6V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Driver, Driver, Converter |
| Minimum Supply Voltage | -0.3V |
| Maximum High Level Output Current | 10mA |
| Maximum Propagation Delay Time @ CL | 500ns |
| Supply Current | 10mA |
| Maximum Low Level Output Current | -10mA |
Key Features
- Operates over a supply voltage range from -0.3V to 6V.
- Supports two channels with line driver and receiver capabilities.
- CMOS output type with inverting polarity.
- Maximum propagation delay time of 500 nanoseconds at capacitive load.
- Suitable for operating temperatures from -40°C to 85°C.
- Provides ESD protection compliant with RS-232 standards for reliable line interface.
- Compact 16-pin SOIC package enabling easy surface mounting.
- Supply current consumption is approximately 10 mA.
Product Description
Texas Instruments MAX232ID is a dual-channel RS-232 line transceiver designed for reliable serial communication interfacing. It operates with CMOS logic levels and features inverting outputs in a compact 16-pin SOIC package suitable for surface mounting.
The device meets the requirements of TIA/EIA-232-F and ITU v.28 standards, making it suitable for a broad range of industrial, laboratory, and commercial electronic equipment requiring serial data transmission.
Designed to operate over a wide supply voltage range (-0.3V to 6V) and temperature range (-40°C to 85°C), the MAX232ID delivers robust performance, featuring a maximum propagation delay of 500 nanoseconds to support communication speeds up to 1 Mbps.
It provides dual line drivers and receivers per package, integrates ESD protection up to ±15 kV (Human Body Model), and consumes approximately 10 mA supply current, optimizing power efficiency for embedded systems.
The 16-pin SOIC surface-mount package enables convenient PCB layout and compact design. Applications include industrial control, data acquisition systems, instrumentation, and other interfaces requiring RS-232 level shifting and line driving.
Two-channel interface with line driver and receiver functions. CMOS logic family compatibility with inverting output polarity. Wide operating voltage and temperature ranges. Meets RS-232 standards with integrated ESD protection.
Compact 16-pin SOIC package for surface mounting. Supply current approximately 10 mA supporting efficient operation. Propagation delay time supports fast data rates. Manufactured under high-quality semiconductor processes in Malaysia.
Explore more semiconductor interface ICs and line transceiver components on EnvMart for your electronic design and industrial applications.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MAX232ID operates over a supply voltage range from -0.3V to 6V.
This model supports two channels with line driver and receiver capabilities.
The maximum propagation delay time is 500 nanoseconds at capacitive load.
It is suitable for operating temperatures from -40°C to 85°C.
This unit features a CMOS output type with inverting polarity.
The supply current consumption is approximately 10 mA.
It comes in a compact 16-pin SOIC package suitable for surface mounting.
Yes, it provides ESD protection compliant with RS-232 standards, up to ±15 kV (Human Body Model).
The MAX232ID is compatible with CMOS/TTL logic families.
It is suitable for industrial control, data acquisition systems, instrumentation, and other interfaces requiring RS-232 level shifting and line driving.
The maximum high-level output current is 10 mA.
The input type is single-ended.
