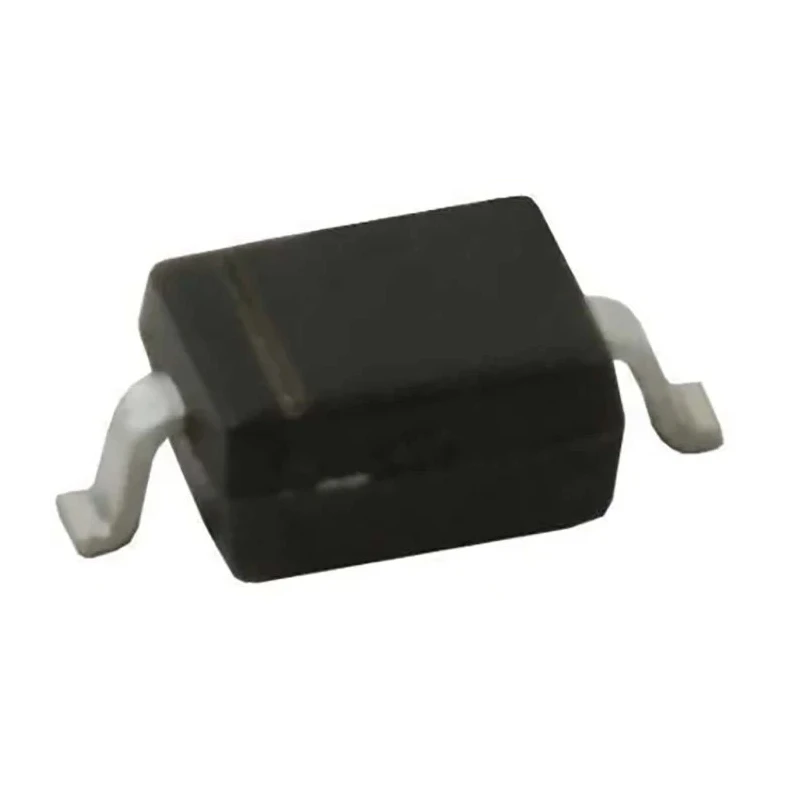

DiodesZetex 1-Element Bi-Directional TVS Diode, 600 W, 2-Pin SOD-323 SD03C-7

DiodesZetex SD03C-7 is a high-performance 1-Element Bi-Directional Transient Voltage Suppression (TVS) diode engineered to protect electronic circuits from electrostatic discharge (ESD) and voltage transients. It features a robust peak pulse power dissipation rating of 600 W, suitable for safeguarding sensitive components in various industrial and consumer electronic applications.

Designed in a compact 2-pin SOD-323 surface mount package measuring 2.7 mm in length, 1.4 mm in height, and 1.1 mm in width, this diode offers easy PCB integration for space-constrained designs. It supports a minimum breakdown voltage of 4 V and a maximum reverse stand-off voltage of 3.3 V, clamping voltage of 11 V, and can handle up to 55 A of peak pulse current to effectively divert harmful transient voltages.

The diode operates over a wide temperature range from -65°C to 150°C, making it well-suited for demanding automotive environments and portable electronic devices like cellular phones and digital cameras. It complies with international safety standards including IEC 61000-4-2 for ESD protection and RoHS directives, ensuring reliability and regulatory compliance. The product also meets stringent automotive certification standards AEC-Q100, AEC-Q200, and AEC-Q101, confirming its suitability for automotive electronics and other high-reliability applications.

Its single-element configuration and ultra-low channel input capacitance optimize protection performance while minimizing signal interference. This makes the SD03C-7 ideal for circuit protection in precision electronic components and telecommunications equipment.

Provides effective bi-directional transient voltage suppression. Supports peak pulse power dissipation of 600 watts. Includes a single diode element in a surface mount SOD-323 package. Allows maximum peak pulse current of 55 amperes.

Complies with IEC 61000-4-2 standards for ESD protection. Operates reliably between -65°C and 150°C operating temperature range. Small form factor with dimensions 2.7 mm length, 1.4 mm height, and 1.1 mm width. Meets automotive standards AEC-Q100, AEC-Q200, and AEC-Q101.

Ideal for industrial, automotive, portable electronics, and telecommunications device protection.

This DiodesZetex SD03C-7 TVS Diode is a critical component for ensuring circuit longevity and performance in industrial, automotive, laboratory, and consumer electronics applications. EnvMart offers this diode as part of its comprehensive semiconductor category for advanced transient voltage and ESD protection solutions.
