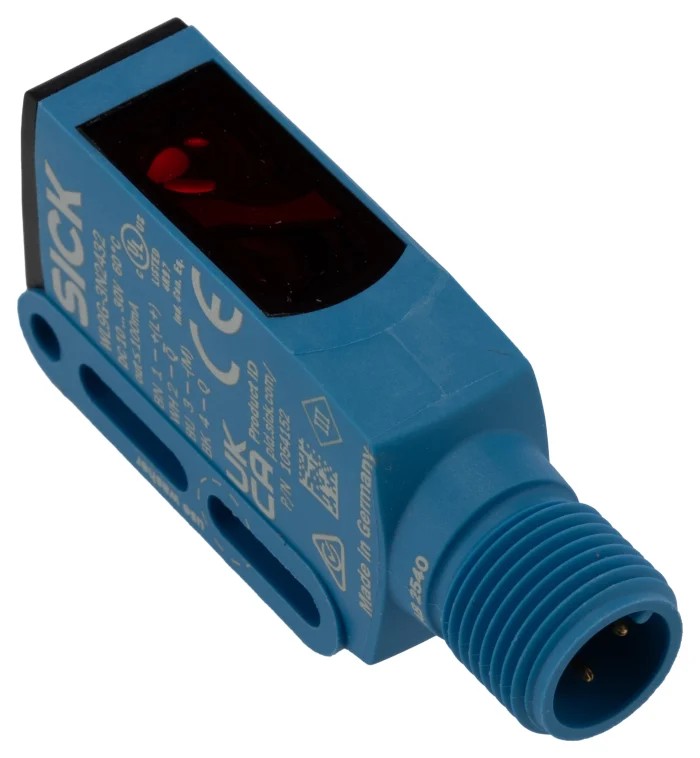

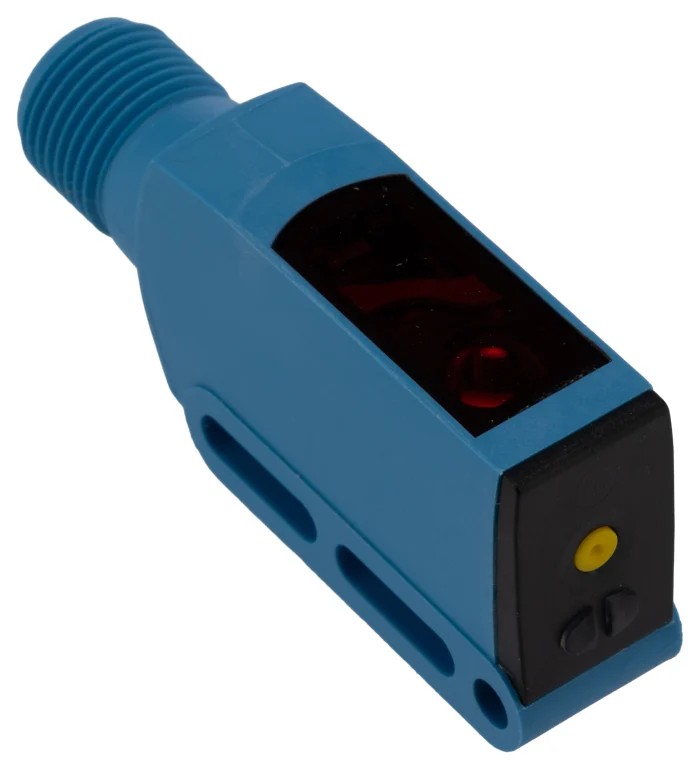

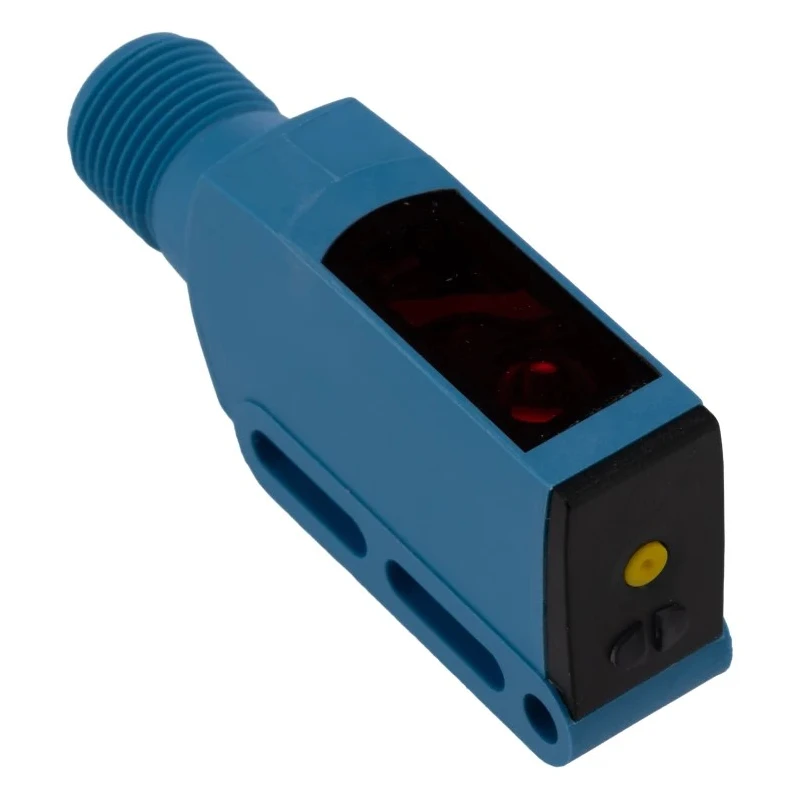

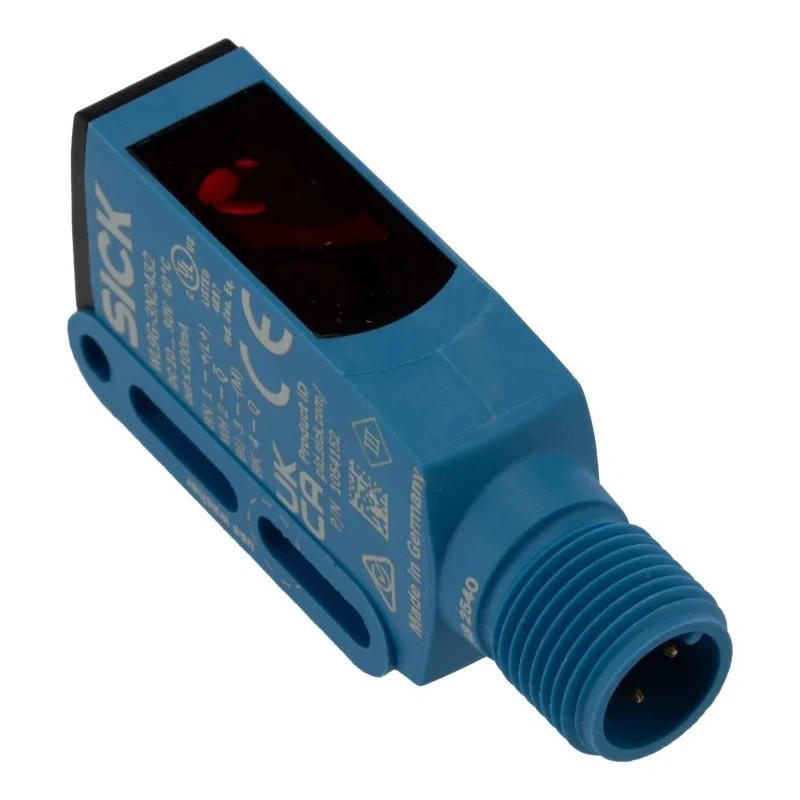

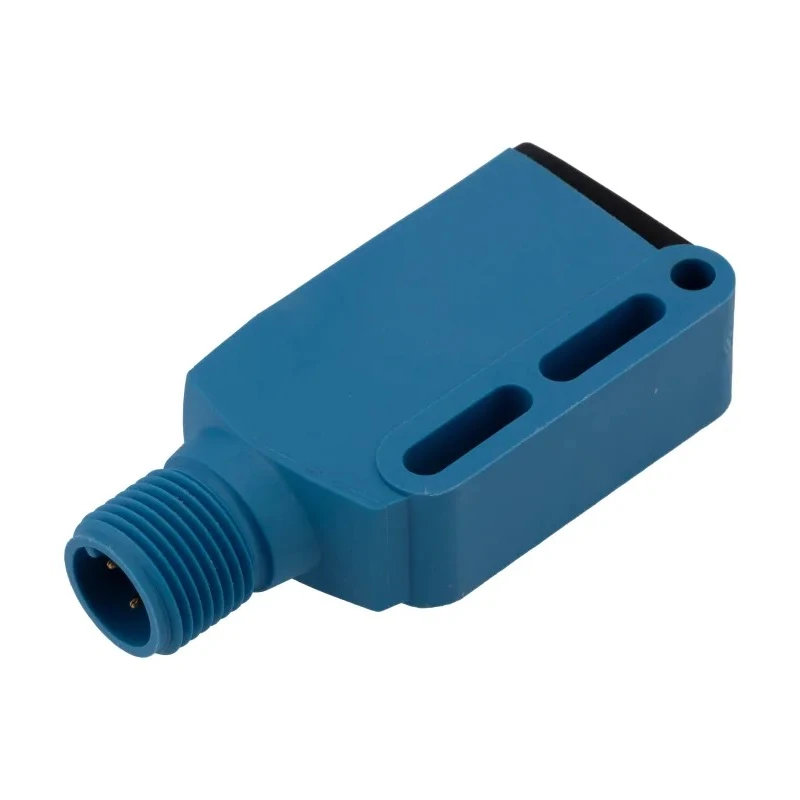

SICK Retroreflective Photoelectric Sensor, Block Style, 5 m Detection Range, NPN Output, IP69K/IP67/IP66 Rated WL9G-3N2432
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 5 m |
| Model | WL9G-3N2432 |
| IP Rating | IP69K, IP67, IP66 |
| Housing Material | Vistal Plastic |
| Output type | NPN |
| Series | W9 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 4-Pin Connector |
| Interface Type | M12 Connector, 4-Pin |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | UL File No. NRKH.E181493 |
| Materials Detected | Transparent Object |
| Sensor Style | Block |
Key Features
- The sensor delivers NPN output suitable for sinking inputs in automation systems.
- Constructed with durable Vistal Plastic housing and rated IP69K, IP67, and IP66 for robust washdown and dust resistance.
- Features LED light source enabling precise transparent object detection.
- Operates between -40°C to 60°C making it suitable for harsh temperature conditions.
- Offers a fast 500 microsecond response time for high-speed detection tasks.
- Includes an M12 4-pin connector for seamless industrial integration.
- Complies with EN IEC 63000 hazardous area certification and UL safety approvals.
- Suitable for conveyor inspection, level sensing, robotic systems, and presence detection of clear materials.
Product Description
SICK WL9G-3N2432 Retroreflective Photoelectric Sensor is a block style sensor with a detection range of 5 meters, utilizing an LED light source and delivering an NPN output. It is ideal for industrial automation applications including conveyor inspection of transparent materials, high-speed part counting, presence detection, and non-invasive liquid level sensing.
The sensor features a robust Vistal Plastic housing ensuring resistance to harsh washdown environments with IP69K, IP67, and IP66 ratings. Operating temperature ranges from minus 40 degrees Celsius up to 60 degrees Celsius, allowing deployment in cold storage and elevated temperature industrial settings.
Equipped with an M12 4-pin connector, it supports easy and reliable integration into machine control systems. The device supports maximum DC voltage of 30 V and maximum current of 100 mA, aligning with standard industrial automation voltages and currents.
Safety and standards compliance include EN IEC 63000 hazardous area certification and UL file number NRKH.E181493. The sensor's fast 500 microsecond response time benefits applications requiring rapid and accurate detection such as robotic pick-and-place and converting machinery.
The sensor detects transparent objects with precision retroreflective technology. The NPN output configuration suits common PLC and sensor interface modules. The durable IP69K rated housing resists dust, water ingress, and high-pressure cleaning.
The included connector type eases wiring installation for industrial setups. Wide temperature tolerance enables usage in various industrial climates. Meets recognized safety standards enhancing system reliability. Applicable across multiple sectors including manufacturing, packaging, and automation.
The SICK WL9G-3N2432 sensor is a dependable component for industrial automation requiring accurate detection of transparent and clear objects, supporting increased efficiency and safety. Explore additional sensors and automation controls available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 5 meters, allowing it to effectively detect transparent objects at this distance.
It delivers an NPN output, which is suitable for sinking inputs in automation systems.
The maximum operating temperature for this model is 60°C, making it suitable for various industrial environments.
This sensor is designed to detect transparent objects using retroreflective technology.
The sensor is rated IP69K, IP67, and IP66, providing robust resistance to dust and water ingress.
The response time of the SICK WL9G-3N2432 is 500 microseconds, allowing for high-speed detection tasks.
It includes an M12 4-pin connector for seamless integration into industrial systems.
The minimum operating temperature is -40°C, enabling its use in cold storage environments.
The maximum current rating for this model is 100 mA, which aligns with standard industrial automation requirements.
It complies with the EN IEC 63000 hazardous area certification, ensuring safety in industrial applications.
This sensor is suitable for applications such as conveyor inspection, level sensing, and presence detection of clear materials.
The housing is constructed from Vistal Plastic, which is designed for durability in harsh environments.
