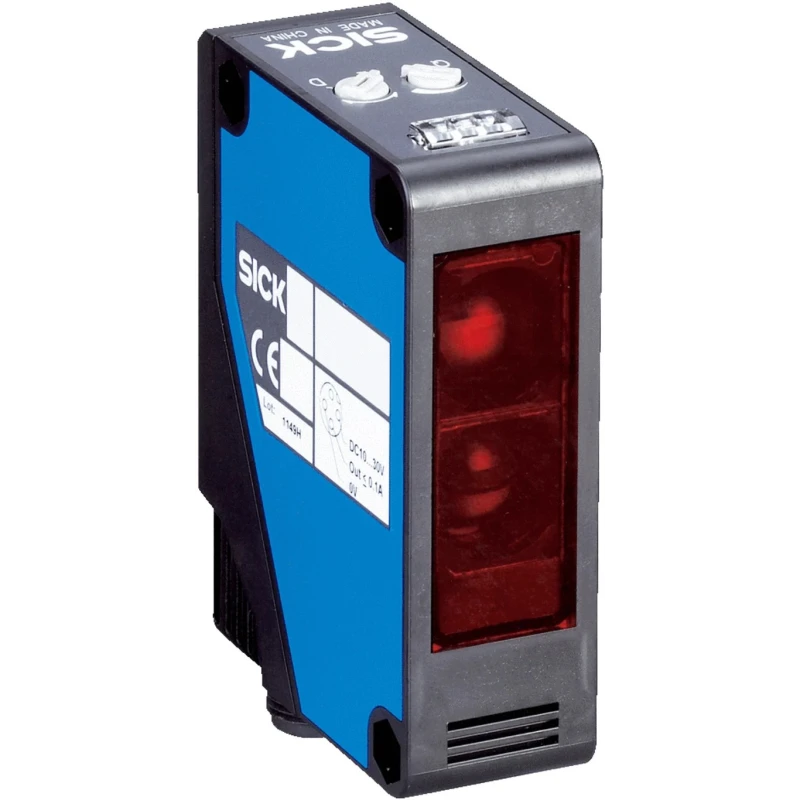

SICK Retroreflective Photoelectric Sensor Block Style 15 m Detection Range Relay Output IP66 IP67 WL280-2R1631

SICK WL280-2R1631 Retroreflective Photoelectric Sensor is a block style sensor designed for industrial automation control and object detection over long distances up to 15 meters. It features a relay output that offers reliable switching capability for automation systems.

The sensor is housed in a durable plastic casing rated IP66 and IP67, providing excellent protection from dust and water ingress, making it suitable for harsh industrial and outdoor environments. The detection principle is retroreflective, leveraging a bright LED light source to accurately sense objects with minimal contamination and false alarms.

Operating temperature ranges from -25°C to 55°C, ensuring performance stability in varied ambient conditions. Electrical specifications include support for both AC and DC voltages up to 240 volts and a maximum current of 3 amps, accommodating a wide range of control voltages in automation setups.

Compliance with UL (NRKH2.E300503 & NRKH8.E300503), EN 60947-5-2, and EN 61000-6-3 standards attests to its safety and electromagnetic compatibility, enhancing suitability for professional industrial applications like door and gate automation, manufacturing lines, and material handling systems.

The product includes a BEF-W280 stainless steel mounting bracket to enable fast and easy installation, even in space-restricted locations. The sensor also features a rotatable M12 connector and cable or screw terminal options for flexible wiring.

Block style sensor with retroreflective detection type ensuring reliable object sensing. Relay output for straightforward integration with control systems. Robust housing with IP66 and IP67 ratings for protection against dust and water.

Detection range up to 15 meters suitable for various industrial applications. Operates within temperature range of -25°C to 55°C for versatile environment usage. Powered by LED light source providing clear detection signal.

Features a 5-pin connector terminal for secure and easy wiring. Compliant with standards UL NRKH2.E300503, NRKH8.E300503, EN 60947-5-2 and EN 61000-6-3. Maximum voltage 240V AC/DC and maximum current 3A for robust electrical performance.

Includes stainless steel BEF-W280 mounting bracket for quick installation.

This sensor is ideal for industrial, manufacturing, automation, HVAC, and water treatment applications requiring precise object detection and reliable switching performance. EnvMart offers this SICK sensor model WL280-2R1631 for professional technical use.
