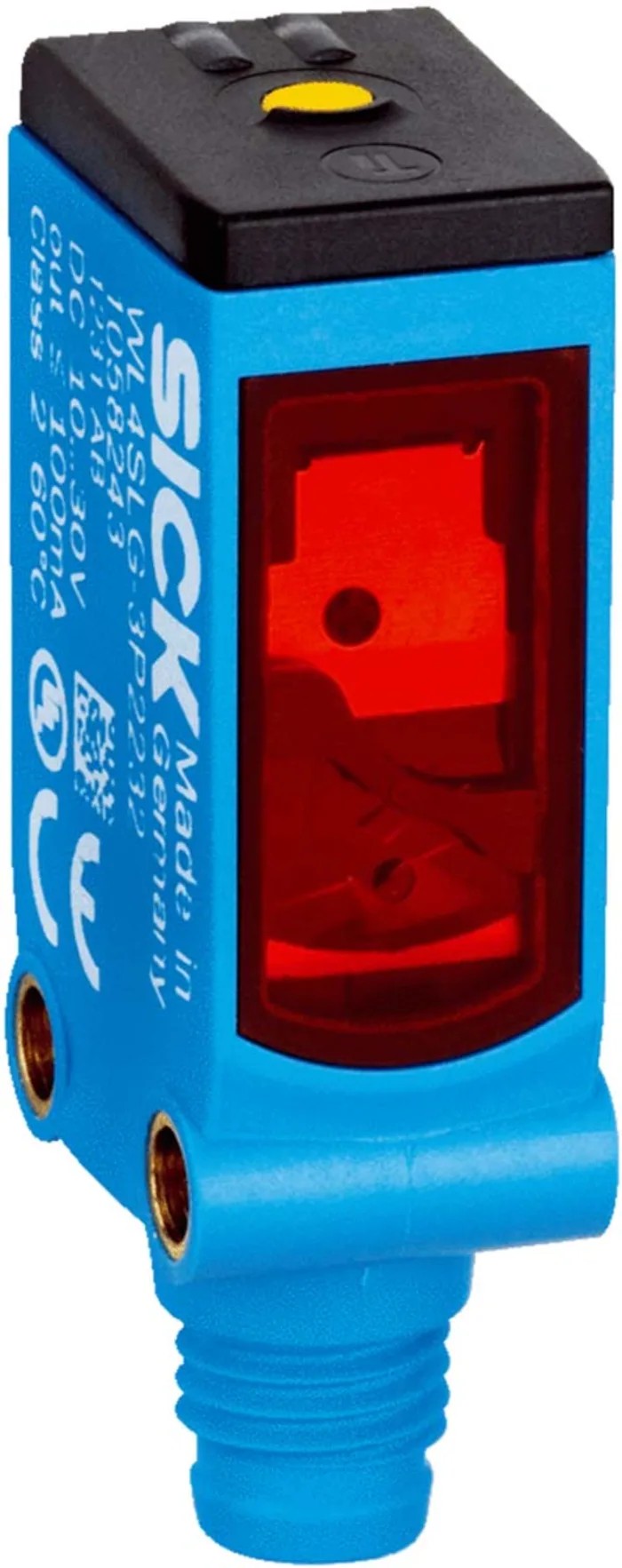

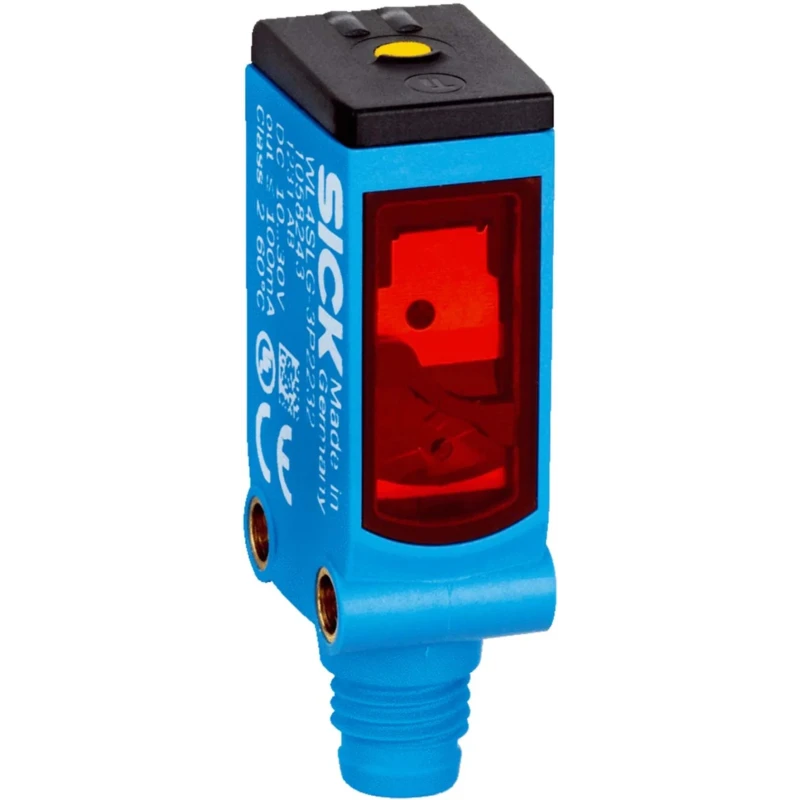

SICK Retroreflective Photoelectric Sensor, Block Sensor, PNP Output, 12 m Detection Range, IP66/IP67, WL4SL-3P2232
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | Laser |
| Detection range | 12 m |
| Model | WL4SL-3P2232 |
| IP Rating | IP66, IP67 |
| Mount Type | Hole |
| Housing Material | Plastic |
| Output type | PNP |
| Series | W4SL-3 |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 4-Pin Connector |
| Interface Type | 4-Pin, M8 Connector |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Sensor Style | Block |
Key Features
- Features a precise laser light spot for accurate switching behavior.
- Offers high optical ambient light immunity to reduce incorrect switching.
- Equipped with a robust IP66 and IP67 rated housing for protection against dust and water.
- Includes a teach-in pushbutton for detecting both transparent and non-transparent objects.
- Utilizes proprietary laser and ASIC technologies for outstanding background suppression.
- Supports multiple adjustment methods including teach-in button, potentiometer, cable, or IO-Link.
- Compact block sensor style suitable for demanding detection tasks.
- Operating temperature range from -10°C to 50°C ensures industrial reliability.
Product Description
SICK WL4SL-3P2232 is a retroreflective Photoelectric Sensor of block sensor style designed for precise object detection over a 12 meter range. Featuring PNP output, this sensor operates within an industrial temperature range of -10°C to 50°C and is protected to IP66 and IP67 standards, ensuring durability and reliable operation in harsh environments.
The sensor employs a precise laser light spot combined with proprietary laser and ASIC technologies, offering exceptional optical light immunity against ambient light and background reflections. This reduces false switching and minimizes machine downtime, enhancing reliability in automation processes.
Its compact housing is of plastic material with a hole mount type for simple installation. Multiple adjustment options are available such as teach-in pushbutton, potentiometer, cable, or IO-Link interface allowing initial system diagnostics and additional sensor functionality without complex programming.
Designed to handle demanding detection tasks, the sensor detects both transparent and non-transparent objects, background suppression eliminates unintended reflections, while autocollimation facilitates detection through small drilled holes. The quick 500μs response time enables precise and timely object positioning and edge detection.
Ideal industrial applications include overhang control, precise object positioning for quality checks, glass panel edge detection, monitoring part features such as boreholes, and verifying presence of parts in robotic grippers.
Precise laser light spot for high accuracy in switching. High ambient light immunity reduces false triggers and downtime. Robust IP66/IP67 protection suitable for tough industrial environments. Multiple flexible adjustment methods including IO-Link support.
Background suppression and autocollimation enhance detection reliability. Compact block sensor housing with plastic material and hole mount. Fast 500μs response time for rapid switching requirements. Wide operating temperature range (-10°C to 50°C) for industrial use.
Detects both transparent and opaque objects effectively. Country of origin is Germany. This SICK sensor model WL4SL-3P2232 is part of the W4SL-3 series and conforms to EN 60825-1:2014 standards. Explore more sensors and automation control gear at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SICK WL4SL-3P2232 sensor has a detection range of 12 meters.
This model features a PNP output type.
The response time of this sensor is 500 microseconds.
It is rated IP66 and IP67, providing protection against dust and water.
The operating temperature range is from -10°C to 50°C.
The housing of the sensor is made of plastic material.
This unit features a hole mount type for installation.
It can detect both transparent and non-transparent objects effectively.
Multiple adjustment methods include a teach-in pushbutton, potentiometer, cable, or IO-Link interface.
The maximum current rating for this sensor is 100 mA.
It conforms to the EN IEC 63000 hazardous area certification.
The sensor is manufactured in Germany.
