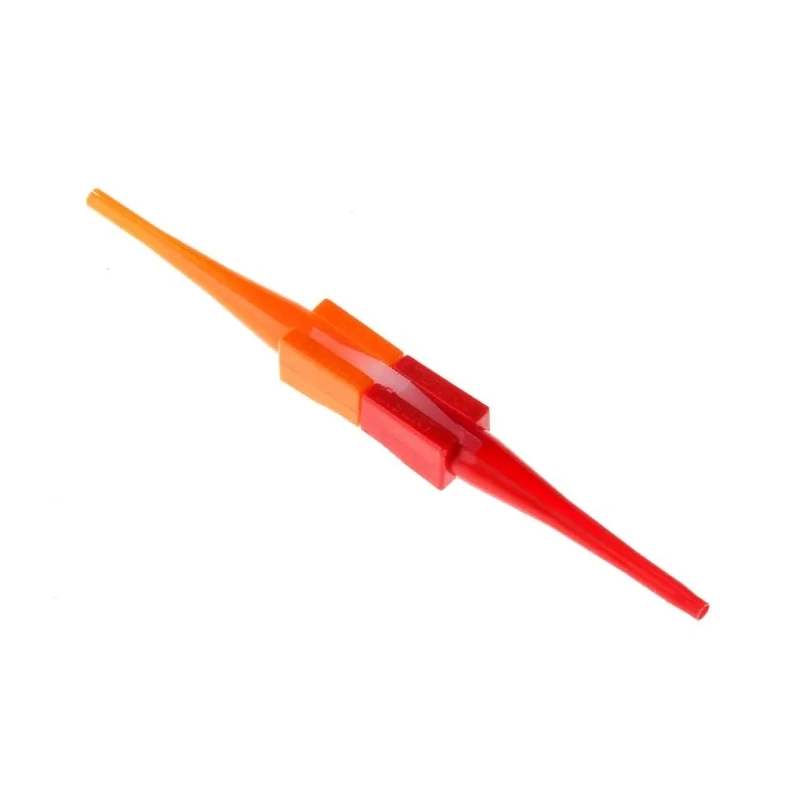

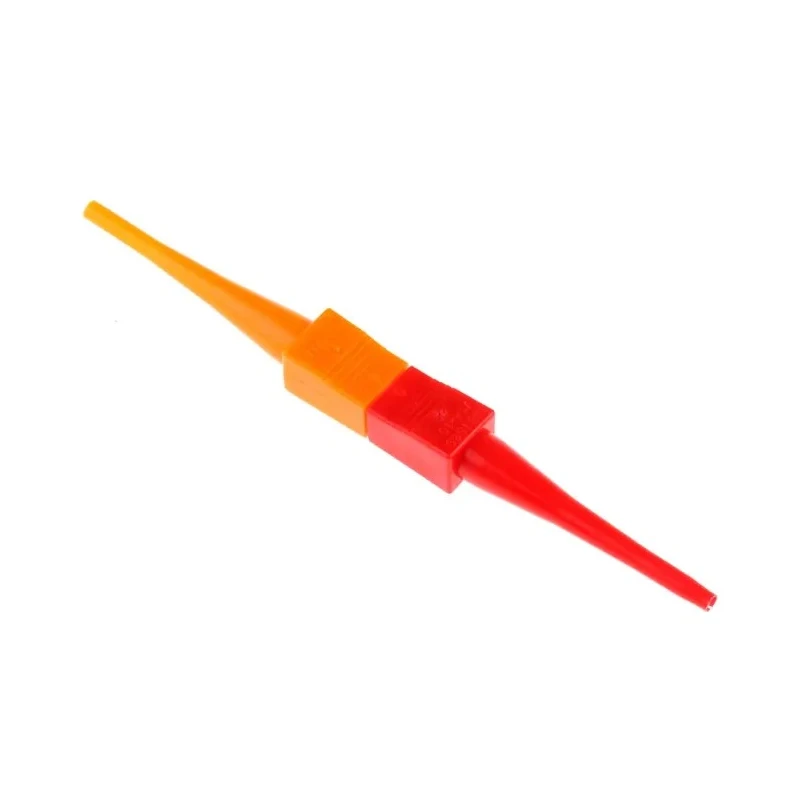

Amphenol Socapex Insertion & Extraction Tool T20 Series 42.06mm Overall Length 809854

Amphenol Socapex 809854 Insertion & Extraction Tool T20 Series is a precision plastic tool engineered with an overall length of 42.06mm for efficient insertion and removal of contacts. It is specifically built for use with MIL-DTL-38999 Series I connectors and is compliant with rigorous standards including EIA364.10, MIL-DTL-83133, and MIL-STDs pertinent to military and industrial applications.

The tool features a dual-ended design where the white end serves extraction tasks and the coloured end is designated for insertion, facilitating ease of use and minimizing handling errors during connector servicing.

This insertion & extraction tool supports LJT Series professional connectors following MIL-C 38999 Series I (HE 308) standards, characterized by bayonet snap-lock latches and scoop-proof male contact mechanical protection, ensuring secure and safe electrical connections in demanding environments.

The standard rear threading enables the accommodation of cable connectors or cable glands, guaranteeing earthing continuity via the cable braid, which is critical in applications requiring electromagnetic compatibility and grounding safety.

Contact insertion and extraction require the use of crimping pliers M 22520//1-01 for contact sizes 20 and 16 or M 22520//2-01 for sizes 20 and 22D with the correct positioners to maintain connector integrity and reliability.

This tool is widely applied in industrial, aerospace, defense, and manufacturing sectors where secure cable termination and maintenance under stringent military standards are mandatory.

Constructed as a plastic tool for reliable contact insertion and extraction. The white end is dedicated for extraction, while the coloured end facilitates insertion. Compatible with LJT Series professional connectors (HE 308) meeting MIL-C 38999 Series I standards.

Features bayonet snap-lock latch and scoop-proof male contact mechanical protection. Standard rear threading allows fitting of cable connectors or glands ensuring earthing continuity. Designed to meet multiple military and industrial standards for connector handling.

Contacts require crimping with pliers M 22520//1-01 (sizes 20 & 16) or M 22520//2-01 (sizes 20 & 22D) using appropriate positioners. Explore additional Amphenol Socapex insertion and extraction tools for professional and industrial cable connector handling on EnvMart.
