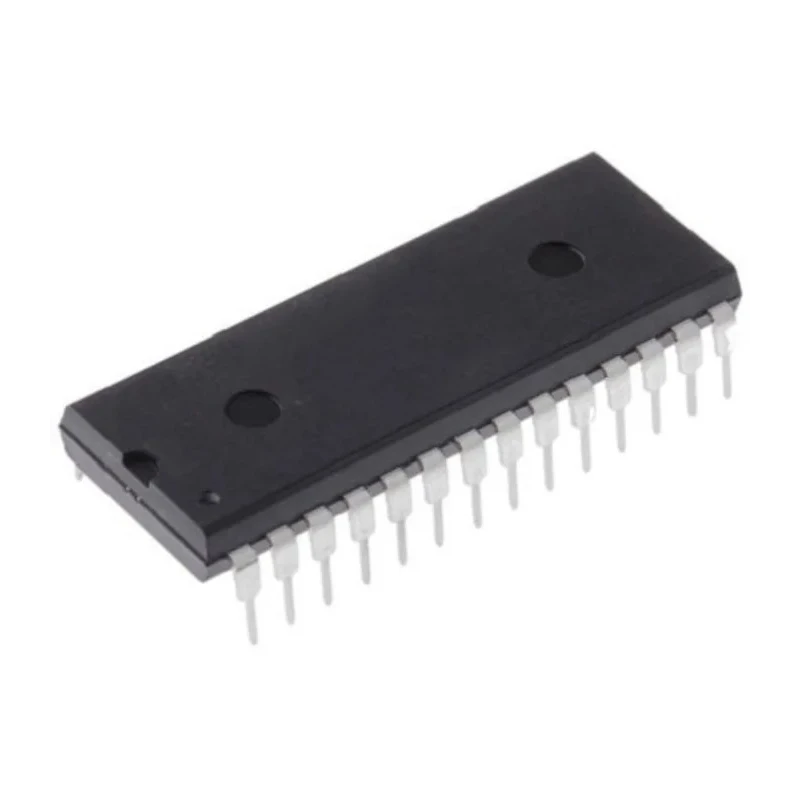

Renesas Electronics 4.5 Digits Dual Slope ADC, 28-Pin PDIP ICL7135CPIZ
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 4.5 Digits |
| Brand | Renesas Electronics |
| Height | 7.37mm |
| Length | 36.96mm |
| Model | ICL7135CPIZ |
| Mount Type | Through Hole |
| Series | ICL7135 |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Architecture | Dual Slope |
| Pin Count | 28 |
| Maximum Supply Voltage | 6V |
Key Features
- High accuracy with ±1 in 20,000 count resolution ensures precise digital measurements.
- Features multiplexed BCD output and digit drivers optimized for display applications.
- Through hole mount type facilitates easy PCB integration and replacement.
- Operates reliably within a temperature range of 0°C to 70°C for versatile environmental use.
- True differential input and polarity at zero count for accurate null detection.
- Low 1pA typical input leakage current enhances measurement stability.
- Single reference voltage operation simplifies design complexity.
- Over range and under range signals provide auto range capability with clear visual blinking indication.
Product Description
Renesas Electronics ICL7135CPIZ is a high precision 4.5 digit analogue-to-digital converter (ADC) based on dual slope architecture, housed in a 28-pin PDIP package suitable for through hole mounting. It features multiplexed BCD output and digit drivers integrated for driving visual displays such as digital voltmeters and panel meters.
This ADC offers a guaranteed ±1 in 20,000 count accuracy with true differential input and zero polarity detection, making it ideal for highly accurate and precise measurement applications in industrial, laboratory, and instrumentation systems.
With a typical input leakage current of just 1pA, the device ensures stable input signals. Its operating temperature range from 0°C to 70°C allows for broad environmental compatibility, and it supports a maximum supply voltage of 6V. The compact dimensions of 36.96mm length and 7.37mm height enable integration in space-constrained designs.
The integrated over range and under range signals support auto-ranging functionality, with blinking output indicators providing clear visuals for over range conditions, enhancing ease of use for system operators.
Application areas include industrial instrumentation for voltage and current measurements, laboratory equipment requiring precision data acquisition, and embedded systems demanding reliable and economical ADC solutions.
High accuracy for industrial and laboratory instrumentation. Integrated digit drivers for direct display interface. True differential input with precise null detection. Auto range with clear visual over range indication.
Compact PDIP package for easy PCB installation. Stable operation over a wide temperature range. Low input leakage current for enhanced measurement fidelity. Single reference voltage operation simplifies circuitry. Supports visual display digital voltmeters and panel meters.
Explore more Electronic Components, semiconductors, and precision ADC solutions at EnvMart for your industrial and laboratory applications.
