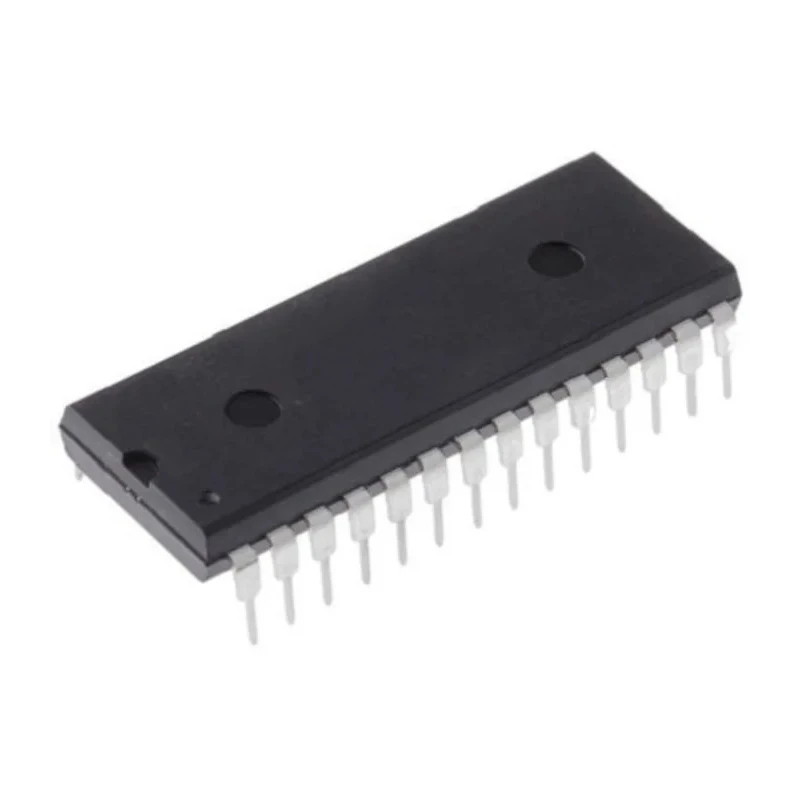

Renesas Electronics 4.5 Digits Dual Slope Analogue to Digital Converter 28-Pin PDIP ICL7135CPIZ
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 4.5 Digits |
| Brand | Renesas Electronics |
| Height | 7.37mm |
| Length | 36.96mm |
| Model | ICL7135CPIZ |
| Mount Type | Through Hole |
| Series | ICL7135 |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Architecture | Dual Slope |
| Pin Count | 28 |
| Maximum Supply Voltage | 6V |
Key Features
- Employs dual slope architecture for high accuracy conversion.
- Features 4.5 digit resolution suitable for digital voltmeters and panel meters.
- Designed for through hole mount with 28-pin PDIP package.
- Input type is differential, supporting true input polarity detection.
- Operates reliably within 0°C to 70°C temperature range.
- Maximum supply voltage is 6V ensuring power efficiency.
- True zero reading at 0V input with 1pA typical input leakage current.
- Includes over range and under range signals for auto ranging capability.
Product Description
Renesas Electronics ICL7135CPIZ is a high precision 4.5 digits analogue to digital converter that employs a reliable dual slope conversion architecture. Packaged in a 28-pin PDIP, it is optimized for visual display digital voltmeters (DVM) and digital panel meters (DPM) applications requiring exceptional accuracy.
This converter provides true differential input and zero input polarity detection, essential for precise nulling and signal measurement. The device delivers ±1 in 20,000 count accuracy, making it ideal for laboratory instrumentation, industrial measurement, and test equipment.
The ICL7135CPIZ operates at supply voltages up to 6V and supports a temperature range from 0°C to 70°C, suitable for various environmental conditions in manufacturing, electronics prototyping, and quality control settings.
Its integrated features include guaranteed zero reading on 0V input and ultra-low 1pA input leakage current, enhancing measurement reliability. The device provides over range and under range signals to support auto-ranging capability and blinking outputs for visual indication of measurement status.
Designed for through hole mounting with a 28-pin PDIP package, it offers ease of integration in PCB designs. The physical dimensions make it compact and space efficient for embedded systems.
Dual slope architecture ensures high accuracy conversion. 4.5 digit resolution supports precise measurement applications. Through hole mount in 28-pin PDIP package for easy PCB implementation. True differential input and polarity detection enhance measurement fidelity.
Operating temperature range suitable for industrial environments. Low supply voltage requirement of 6V aids power sensitive designs. Guaranteed zero reading and minimal input leakage current improve stability. Auto range capability with over range and under range signals.
Blinking outputs provide clear over range visual alerts. Compact dimensions facilitate versatile integration.
This Renesas Electronics ICL7135CPIZ ADC is well suited for Electronic Components, semiconductor applications, industrial electronics, and instrumentation roles. Browse our extensive catalog at EnvMart for more advanced analogue to digital converter solutions and other semiconductor components from leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ICL7135CPIZ has a resolution of 4.5 digits, making it suitable for high-accuracy measurement applications.
This model operates reliably within a temperature range of 0°C to 70°C.
It supports a differential input type, which includes true input polarity detection for precise measurements.
The maximum supply voltage for this unit is 6V, ensuring power efficiency in its applications.
The dimensions of this model are 36.96mm in length and 7.37mm in height, packaged in a 28-pin PDIP format.
It employs a dual slope architecture, which is known for high accuracy in analogue to digital conversion.
Yes, it includes over range and under range signals that support auto-ranging functionality.
The typical input leakage current for this model is 1pA, which enhances measurement reliability.
This unit is designed for through hole mounting, making it easy to integrate into PCB designs.
It is well-suited for digital voltmeters, digital panel meters, laboratory instrumentation, and industrial measurement.
The ICL7135CPIZ is manufactured in India.
The true zero reading feature guarantees a zero output at 0V input, which is crucial for accurate nulling and signal measurement.
