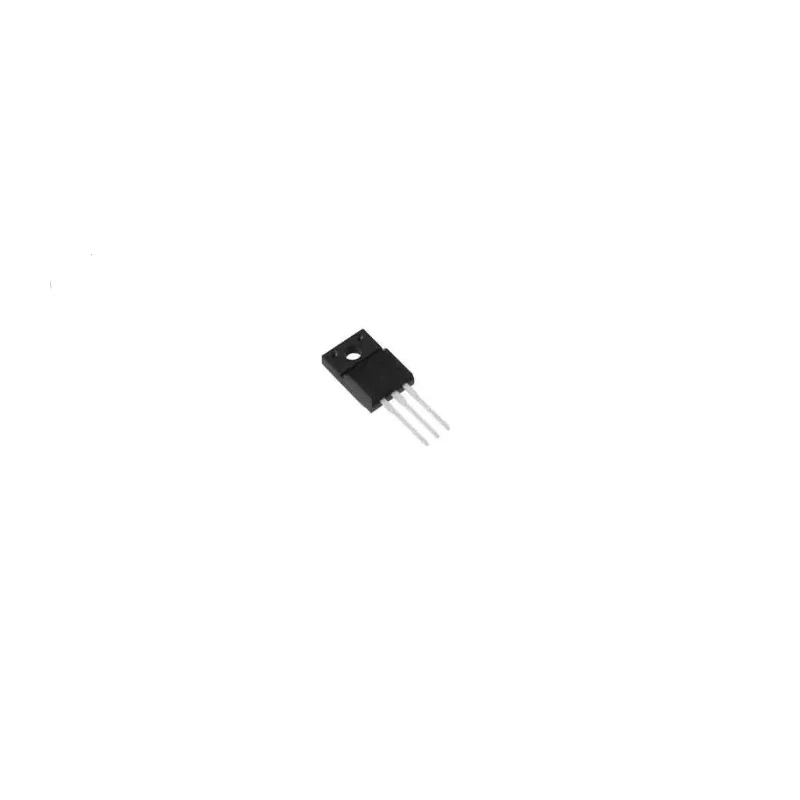

onsemi SUPERFET III N-Channel MOSFET & Diode 13 A 800 V Enhancement 3-Pin TO-220 NTPF360N80S3Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 4.5mm |
| Length | 28.45mm |
| Model | NTPF360N80S3Z |
| Width | 9.96mm |
| Mount Type | Surface |
| Series | SUPERFET III |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 13A |
| Maximum Drain Source Voltage Vds | 800V |
| Maximum Drain Source Resistance Rds | 360mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 31W |
| Typical Gate Charge Qg @ Vgs | 25.3nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1.2V |
Key Features
- The device features an enhancement-mode N-channel MOSFET with integrated diode for improved efficiency.
- It has a low drain-source resistance of 360 milliohms to minimize conduction losses.
- The 3-pin TO-220 surface mount package aids in effective heat dissipation and ease of mounting.
- Maximum power dissipation rating is 31 W supporting robust operation under load.
- Wide operating temperature range from -55°C to 150°C ensures reliability in diverse conditions.
- Low typical gate charge of 25.3 nC enhances fast switching performance with reduced energy loss.
- Suitable for industrial power supplies, laptop adapters, audio equipment, lighting, and ATX power applications.
- Internal zener diode improves electrostatic discharge (ESD) protection for enhanced durability.
Product Description
onsemi NTPF360N80S3Z SUPERFET III series is an N-channel enhancement-mode MOSFET with an integrated diode designed for switching power applications requiring high efficiency and reliability. It supports a continuous drain current of 13 A and a maximum drain-source voltage of 800 V, packaged in a TO-220 3-pin surface mount configuration.
This MOSFET & diode combination optimizes switching losses and thermal management, making it ideal for flyback converters and power supply designs. The device’s low drain-source resistance of 360 milliohms helps reduce conduction losses, while a maximum power dissipation of 31 W supports operation under demanding conditions.
The unit operates within a broad temperature range from -55°C to 150°C, ensuring suitability for various industrial and commercial environments. Its typical gate charge of 25.3 nC allows swift switching with low energy consumption. An internal zener diode significantly enhances electrostatic discharge protection, improving component robustness and longevity.
Applications include laptop adapters, audio devices, lighting systems, ATX power supplies, and other industrial power management uses. The compact TO-220 package facilitates easy mounting and efficient heat dissipation.
The device provides a combination of power MOSFET and diode for optimized switching efficiency. Low on-resistance reduces heat generation and power loss during operation. Robust thermal and voltage ratings ensure stable performance in harsh environments.
Enhanced ESD protection via internal zener diode increases device life. Compact TO-220 3-pin surface mount package allows versatile integration. Wide temperature operating range suitable for industrial and commercial applications.
Designed for use in power supplies, converters, and general power switching circuits. Explore onsemi products and similar MOSFETs in the Electronics & Electricals category on EnvMart for high-quality semiconductor components.
Explore more products in our Discrete Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 13 A.
This MOSFET has a maximum drain-source voltage rating of 800 V.
It supports a maximum power dissipation of 31 W.
The typical gate charge is 25.3 nC, which enhances fast switching performance.
The TO-220 package has a height of 4.5 mm, a length of 28.45 mm, and a width of 9.96 mm.
It operates within a temperature range of -55°C to 150°C.
This unit uses a surface mount type.
The maximum drain-source resistance is 360 milliohms.
This model complies with RoHS standards.
The TO-220 package features 3 pins.
It features an enhancement-mode N-channel.
