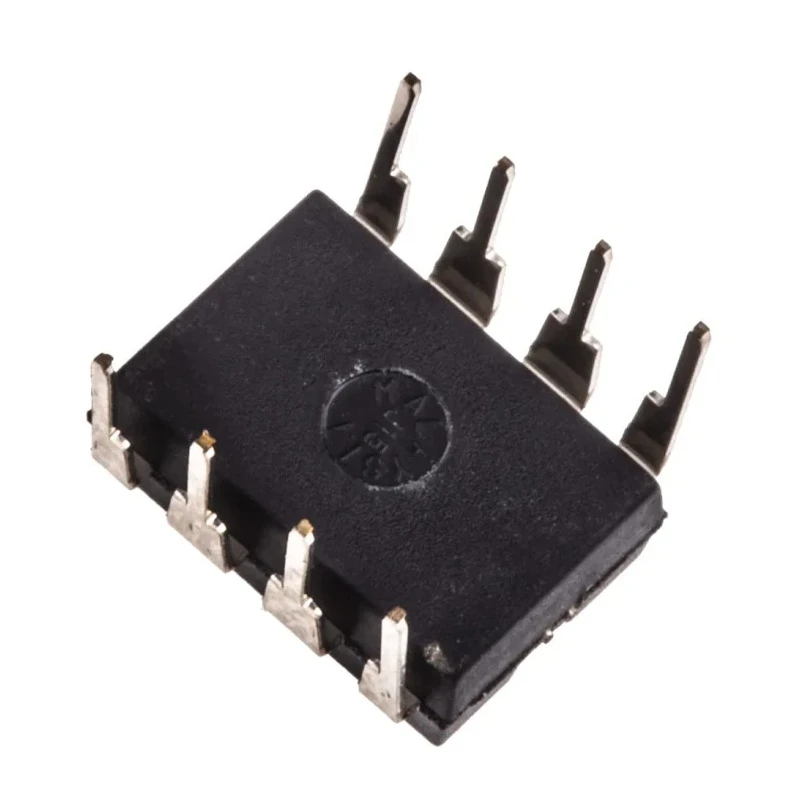

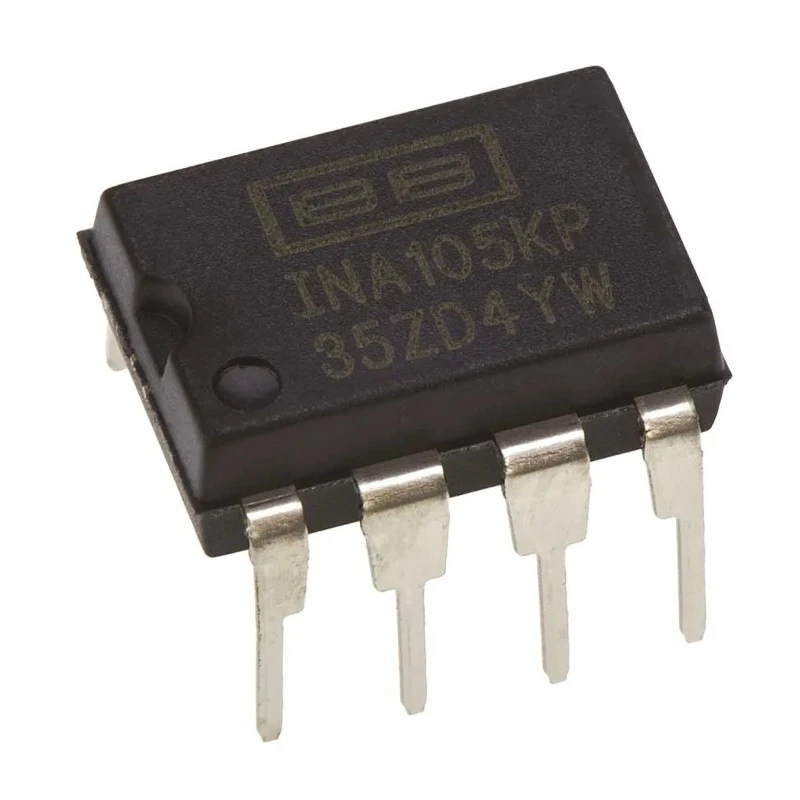

Texas Instruments Differential Amplifier 1 MHz 8-Pin PDIP INA105KP

Texas Instruments INA105KP Differential Amplifier 1 MHz 8-Pin PDIP is a precise and reliable component designed for amplifying differential input signals while rejecting common-mode noise. Operating within a supply voltage range of 5V to 18V, this device achieves a gain bandwidth product of 1 MHz, making it suitable for high-precision signal conditioning in industrial, laboratory, and electronic measurement systems.

The amplifier features a low input offset voltage of 0.5 mV, which ensures minimal signal distortion and high accuracy in measurement applications. Its excellent common mode rejection ratio (72 dB) suppresses unwanted noise signals efficiently, enhancing signal fidelity. With a slew rate of 3 V/μs, the INA105KP provides rapid response necessary for dynamic signal environments.

Packaged in an 8-pin PDIP with through-hole mounting type, this differential amplifier offers easy integration into electronic circuits. It operates reliably across a wide temperature range from -40°C to 85°C, supporting use in harsh and variable environments found in industrial manufacturing, laboratory instrumentation, and control systems.

Differential amplifiers like the INA105KP are crucial for applications requiring high input impedance and precise differential gain control. Texas Instruments' INA105KP incorporates on-chip resistors for defining gain, low DC offset, low noise, and high open loop gain, making it ideal for instrumentation and audio amplification tasks.

This device is RoHS compliant, evidencing adherence to environmental and safety standards. It is widely used in embedded systems, test and measurement equipment, and signal processing modules for commercial and industrial applications.

This differential amplifier operates with a supply voltage range of 5V to 18V. It features a gain bandwidth product of 1 MHz for accurate signal amplification. The device has an input offset voltage of 0.5 mV ensuring precision signal processing.

It offers a common mode rejection ratio (CMRR) of 72 dB for effective noise suppression. The slew rate of 3 V/μs allows for fast signal response. The amplifier is housed in an 8-pin PDIP package suitable for through-hole mounting.

Operating temperature ranges from -40°C to 85°C for robust performance in varied environments. The supply current is 2 mA, providing efficient power usage. Explore more Texas Instruments semiconductor components and precision amplifiers in the EnvMart catalog designed for advanced electrical and electronic engineering projects.
