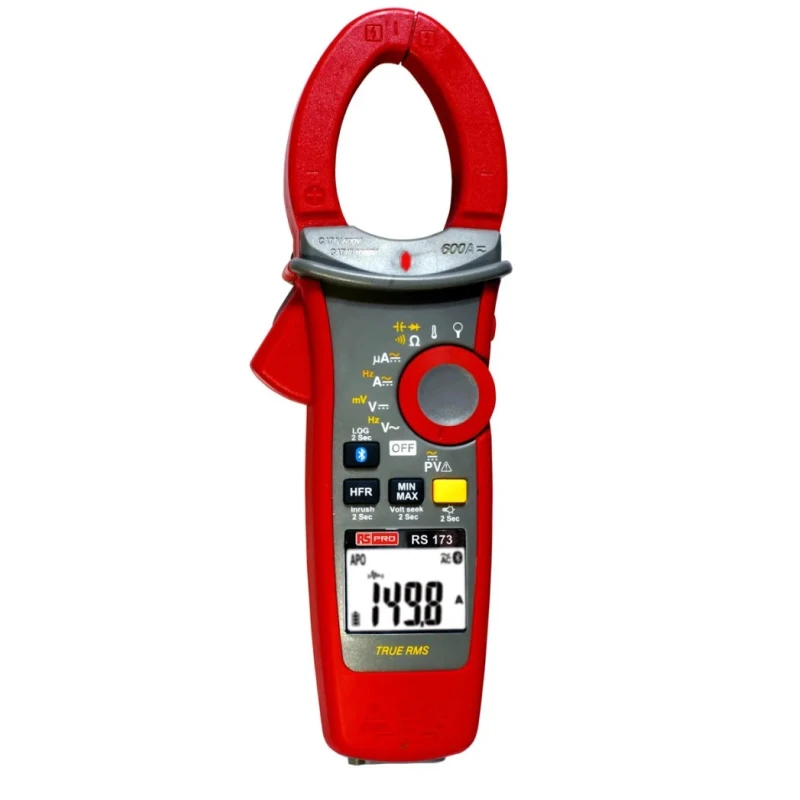

RS PRO Solar Clamp Meter, True RMS, 600 A AC/DC Current, 1000 V AC/DC Voltage, CAT III 1000 V, CAT IV 600 V 173 204-8311

The RS PRO 173 Solar Clamp Meter is a high-precision True RMS measuring instrument designed for both AC and DC current and voltage applications up to 600A and 1000V respectively. It is ideally suited for industrial electrical troubleshooting, maintenance of solar power installations, and other professional electrical testing tasks.

This instrument features a large backlit LCD for ease of reading measurements in dimly lit environments and is equipped with a non-contact voltage detector and a built-in torchlight, enhancing usability in diverse conditions. The fixed jaw with a 45 mm opening delivers high accuracy for current measurement, complemented by multiple measurement functions including continuity, resistance, capacitance, diode test, frequency, and temperature measurement.

The meter also supports photovoltaic system inspection up to 2000V DC using optional designated PV test leads. Its safety credentials are reinforced with CAT III 1000 V and CAT IV 600 V ratings, ensuring reliable and safe operation across various industrial and commercial settings.

Powered by two AA batteries, the unit offers extended battery life up to 200 hours, providing long periods of uninterrupted operation. The compact dimensions of 240mm length, 62mm width, and 41mm height, combined with a lightweight design at 430 grams, make it highly portable for field work.

Operating temperature ranges from -10°C to 50°C, with temperature measurement capabilities reaching up to 400°C, delivering versatility for diverse working environments. Constructed to meet CE, EN, and IEC standards, this clamp meter represents a robust and dependable tool for electricians and solar power technicians alike.

Features a 45mm fixed jaw for precise current measurement. Large backlit LCD screen provides clear visibility in poor lighting. Built-in torchlight aids operation in dark environments. Non-contact voltage detection enhances safety and convenience.

Supports photovoltaic system testing up to 2000V DC with PV test leads. Multiple measurement functionalities include continuity, resistance, capacitance, diode, frequency, and temperature. Rated to CAT III 1000 V and CAT IV 600 V safety standards.

Powered by AA batteries offering approximately 200 hours of use. Compact and lightweight for portability.

This RS PRO clamp meter is suitable for industrial, laboratory, HVAC, commercial electrical testing and solar panel installation applications. Explore more measuring instruments in the Clamp Meter category at EnvMart for additional solutions that meet professional testing requirements.
