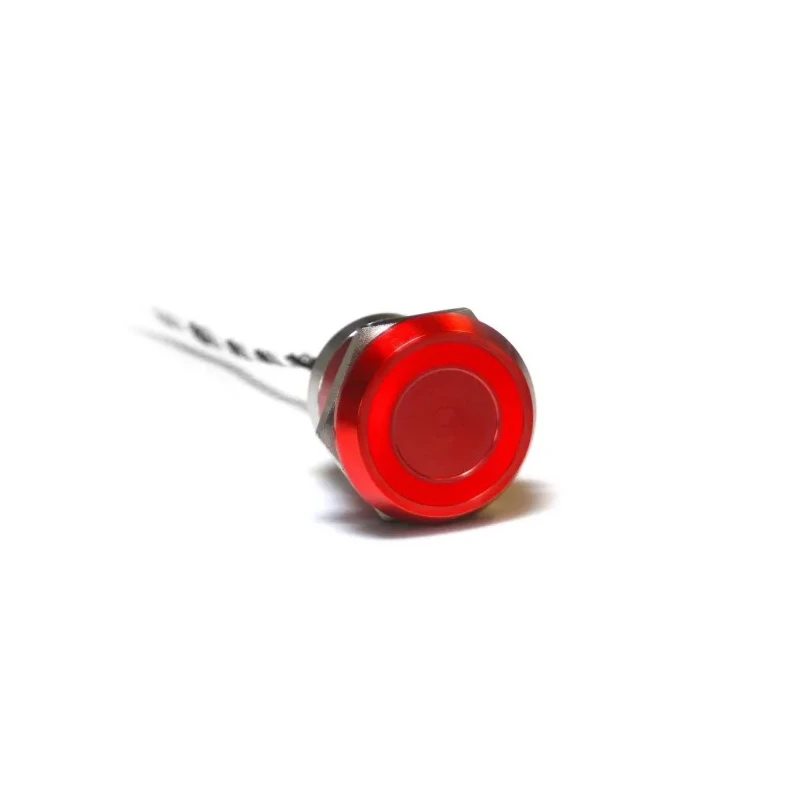

Bulgin Capacitive Switch Latching NC Illuminated Red Green SPST NC IP68 IP69K Aluminium MC25LCRGR

Free Delivery in India | Lowest Global Shipping Charges

Bulgin Capacitive Switch Latching NC Illuminated Red Green SPST NC IP68 IP69K Aluminium MC25LCRGR

Name: Bulgin Capacitive Switch Latching NC Illuminated Red Green SPST NC IP68 IP69K Aluminium MC25LCRGR
Brand: Bulgin
SKU: 277543
Price: 7507.58 INR
Availability: InStock



Category Capacitive Switch Brand Bulgin Condition New

Specifications

Country of Origin	China
Brand	Bulgin
Model	MC25LCRGR
IP Rating	IP68, IP69K
Housing Material	Aluminium
Contact Material	Red Anodised
Current Rating	500mA
Switch Type	Capacitive
Output type	SPST NC
Series	MC25LCRGR
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Maximum Input Voltage	24V dc
Standards/Approvals	RoHS
Minimum Input Voltage	12V dc
LED Colour	Red, Green
Switch Operation	Latching
Actuator Colour	Red
Housing Colour	Red
Switch Function	NC

Key Features

The switch operates with a latching mechanism and a normally closed (NC) function.
It features a capacitive switch type with illuminated red and green LED indicators.
Housing is made from durable aluminium with red anodised contact material.
The switch is rated IP68 and IP69K for superior waterproof and dustproof protection.
Operating temperature ranges from -25°C to 55°C ensuring robustness in varied environments.
The switch supports input voltages from 12V dc to 24V dc and output type is SPST NC.
Current rating is 500mA suitable for low power control applications.
The actuator color is red, complementing the housing color, and designed for ease of operation.

Product Description

Bulgin MC25LCRGR capacitive switch is engineered for precise touch activation with a latching mechanism and normally closed (NC) contact function. It is illuminated with red and green LEDs for clear status indication and housed in robust aluminium with red anodised contact surfaces to assure durability.

This switch is IP68 and IP69K rated, offering exceptional resistance to dust and water ingress, making it suitable for demanding electrical, automation, and industrial environments. It operates efficiently between -25°C and 55°C, accommodating a broad range of operating conditions.

The switch accepts input voltages from 12V to 24V DC, with an output configured as SPST NC, supporting a current rating up to 500mA. The actuator is ergonomically designed in red to enhance user interaction with the device.

The Bulgin MC25LCRGR is RoHS compliant and manufactured in China, emphasizing environmental responsibility and quality manufacturing standards. The switch utilizes a latching operation and normally closed function providing stable circuit control.

Illuminated with red and green LEDs for operational clarity and indication status. Constructed from aluminium housing with durable red anodised contacts for longevity. Certified IP68 and IP69K rated for extreme water and dust resistance.

Designed for operation within a temperature range of -25°C to 55°C. Compatible with 12V to 24V DC input voltages and supports 500mA current rating. Ergonomic red actuator with illuminated switch body enhances usability. Ideal for industrial, automation, electrical control, and rugged environmental applications.

Complies with RoHS standards for safe use and environmental compliance.

This capacitive switch is ideal for applications requiring durable, touch-based switching with environmental protection, including industrial automation, machinery controls, and electrical installations. Explore additional Bulgin Capacitive Switches in EnvMart’s extensive electronics and electrical components category.
