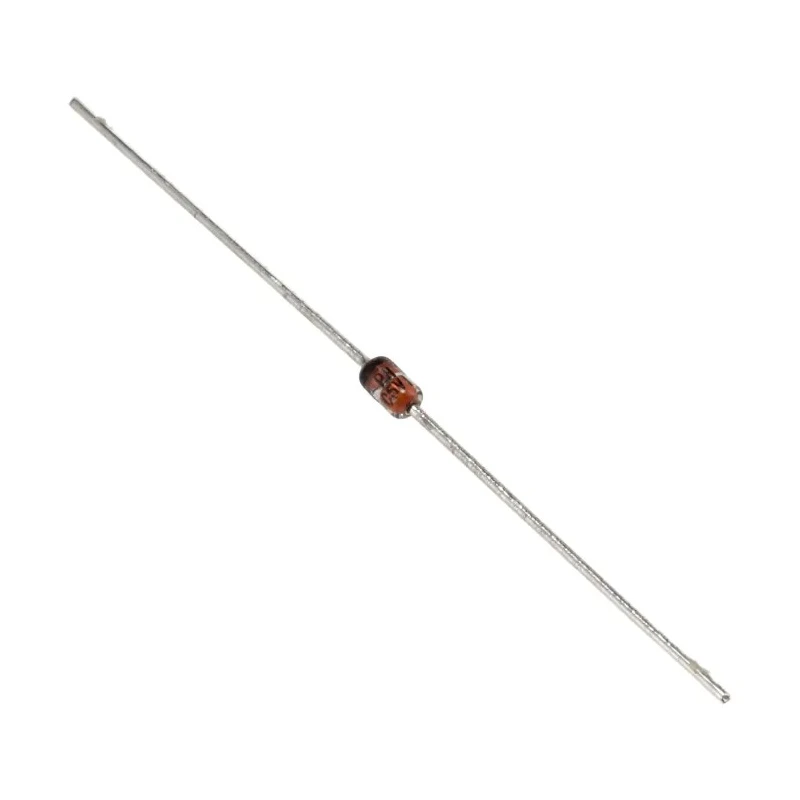

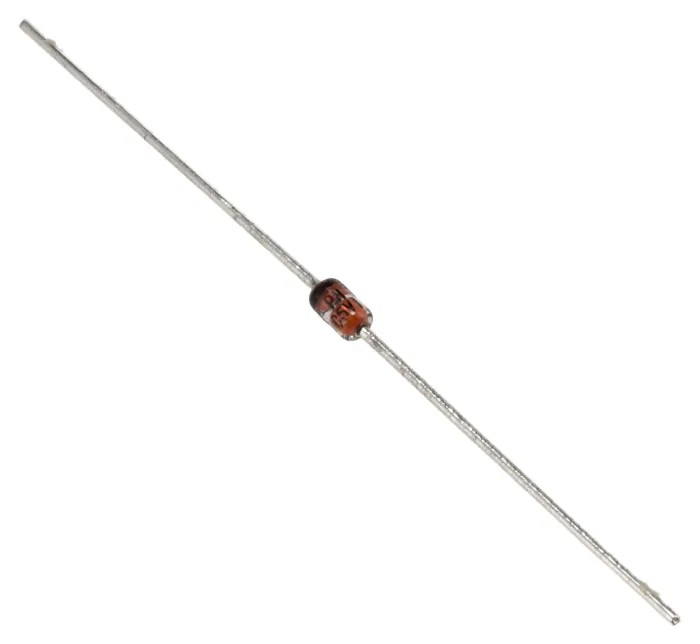

Nexperia Zener Diode 5.1 V 1.3 W Through Hole 2-Pin DO-41 BZV85-C5V1,113

Nexperia BZV85-C5V1,113 is a Zener Diode designed for voltage regulation applications in electronic circuits. It features a nominal Zener voltage of 5.1 V and a maximum power dissipation of 1.3 W, making it suitable for medium power use cases.

This diode is configured as a single element and housed in a through hole DO-41 package with 2 pins, allowing for straightforward integration into PCB designs and prototypes. The device supports a test current of 45 mA and delivers a stable voltage with a ±5% tolerance.

The diode can operate reliably over a wide temperature range from -65°C to 200°C and has a maximum reverse leakage current of 3 μA, which contributes to its low power loss and efficient operation.

Its compact size with dimensions 4.8 mm in length and 2.6 mm in height is ideal for space-constrained electronic assemblies. The maximum Zener impedance of 10 Ω ensures stable voltage regulation, along with a voltage temperature coefficient of 0.85 mV/°C providing consistent performance over temperature variations.

Features a single diode configuration for reliable performance. Through hole mount type with 2-pin DO-41 package for easy installation. Maximum power dissipation of 1.3 W suitable for medium power circuits. Nominal Zener voltage of 5.1 V with ±5% tolerance ensuring precise voltage regulation.

Test current rated at 45 mA with low maximum reverse leakage current of 3 μA. Operating temperature range from -65°C to 200°C enabling use in harsh environments. Compact dimensions with length 4.8 mm and height 2.6 mm. Maximum Zener impedance of 10 Ω for stable voltage output.

Voltage temperature coefficient of 0.85 mV/°C for predictable temperature behavior. Manufactured in China with compliance to industry standards. Explore more electronic components and Zener Diodes with Nexperia and other top manufacturers at EnvMart.
