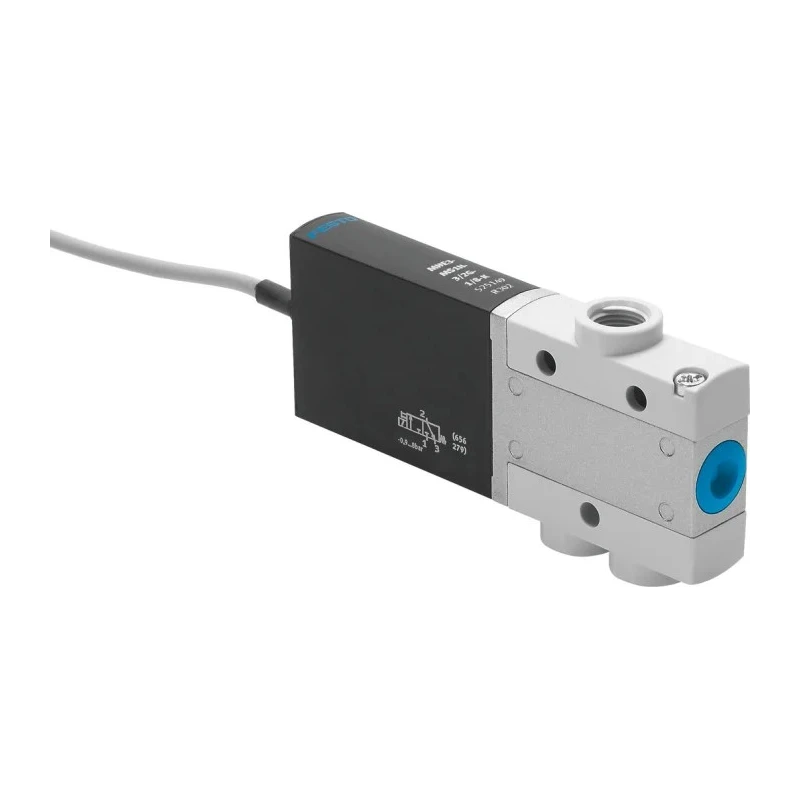

Festo Pneumatic Solenoid Pilot-Operated Control Valve 3/2 Closed Monostable Electric 24V 3.7W Die Cast MHE3-M1H-3/2G-1/8-K
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 24V |
| Brand | Festo |
| Body Material | Die Cast Zinc |
| Maximum Operating Pressure | 8 bar |
| Model | MHE3-M1H-3/2G-1/8-K |
| Width | 14mm |
| Mount Type | Through Hole |
| Series | MHE3-M1H-3/2G-1/8-K |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Port Type | Pneumatic |
| Number of Positions | 2 |
| Port Size | 1/8 in G |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Electric |
| Maximum Flow Rate | 4500L/min |
| Standards/Approvals | cULus |
| Connection Thread Standard | Metric |
| Minimum Pilot Pressure | -0.9bar |
| Valve Function | 3/2 Closed Monostable |
| Electrical Connection Type | Cable |
| Maximum Pilot Pressure | 10bar |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 3.7W |
Key Features
- The valve features a compact 14mm width for easy system integration.
- It supports a maximum operating pressure of 8 bar and pilot pressure range from -0.9 bar to 10 bar.
- The body is made of durable die cast zinc with nitrile rubber (NBR) seals.
- Designed for electric actuation with 3.7W solenoid power consumption and cable electrical connection.
- Mechanical spring reset and IP65 protection class ensure reliable operation and durability.
- The valve provides a maximum flow rate of 4500 L/min suitable for industrial pneumatic applications.
- Rated for operating temperatures from -5°C up to 60°C for various environmental conditions.
- Ideal for manufacturing, robotic control, and pneumatic system regulation.
Product Description
Festo MHE3-M1H-3/2G-1/8-K is a high-performance pneumatic solenoid/pilot-operated control valve designed for industrial pneumatic control applications. This valve features a 3/2 closed monostable function and is electrically actuated at 24V with a power consumption of 3.7W, providing precise valve control with mechanical spring reset and direct pilot operation.
Its compact 14mm width and through hole mount allow for easy integration into existing pneumatic systems. The valve is constructed from durable die cast zinc with nitrile rubber (NBR) sealing elements, ensuring reliable sealing and moderate corrosion resistance.
Operating pressure specifications include a maximum operating pressure of 8 bar, with pilot pressure ranging from -0.9 bar minimum to 10 bar maximum. Operating temperatures span from -5°C to 60°C making it suitable for various industrial environments. The valve has a maximum flow rate of 4500 L/min, enabling efficient air flow control.
The electrical connection is via cable, and the valve is designed with IP65 protection for dust and water resistance, enhancing durability in harsher conditions. Mechanical spring reset guarantees valve position return in case of power loss.
This valve is ideal for use in manufacturing plants, robotics, and automation systems that require reliable pneumatic control. It meets cULus standards but has no hazardous area certification.
The valve has 3 ports and 2 operational positions. It uses a pneumatic port type with metric thread standard and a 1/8 inch G port size and female port gender. The valve body comes with through hole mounting style for sturdy installation.
Nitrile rubber (NBR) sealing material offers good resistance to fluids and wear. The solenoid type is single coil, offering efficient electrical actuation. Festo's MHE3 series valves are trusted components in pneumatic system designs where precise and dependable valve control is essential.
Explore more solutions like this in EnvMart’s Pneumatic Solenoid Valves category to find compatible industrial valve components for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this model is 8 bar.
It has a maximum flow rate of 4500 L/min.
The valve features a cable electrical connection.
The operating temperature range is from -5°C to 60°C.
This model has 3 ports.
The body is made of die cast zinc, and it has nitrile rubber (NBR) seals.
The solenoid power consumption is 3.7W.
It operates as a 3/2 closed monostable valve.
The port size is 1/8 inch G, and it uses a pneumatic port type with a metric thread standard.
The valve comes with a through hole mounting style for installation.
The pilot pressure range is from -0.9 bar to 10 bar.
Yes, it meets cULus standards.
