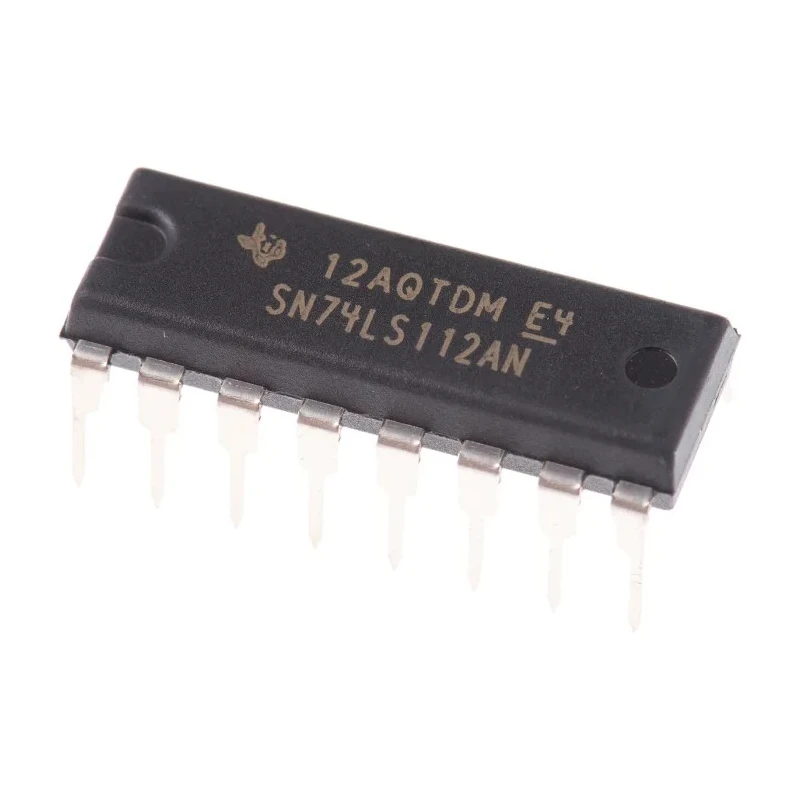

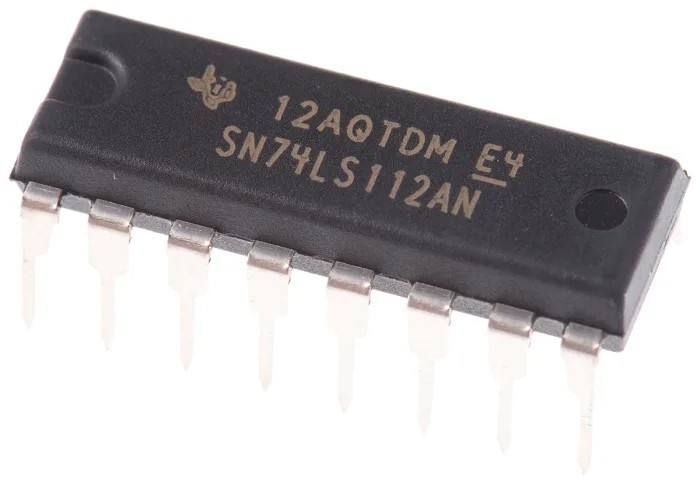

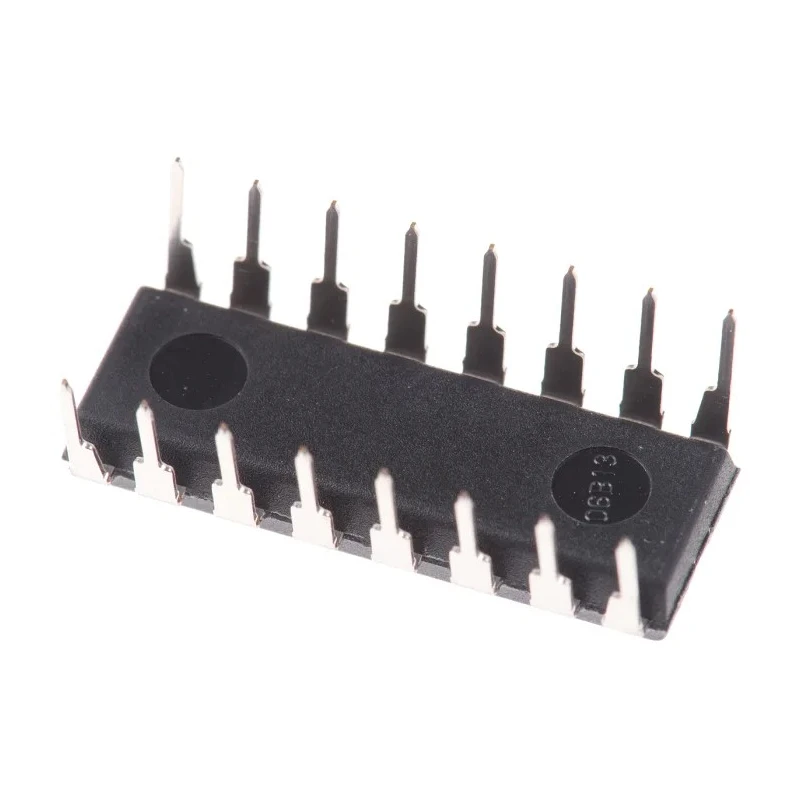

Texas Instruments 2 Flip Flop IC LS 16-Pin PDIP Logic Family SN74LS112AN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74LS112AN |
| Mount Type | Through Hole |
| Series | SN74LS112AN |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Inverting, Non-Inverting |
| Trigger Type | Negative Edge |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | LS |
| Minimum Supply Voltage | 4.75V |
| Maximum Propagation Delay Time @ CL | 20ns |
| Clock frequency | 45MHz |
| Flip-Flop Type | JK Type |
Key Features
- This device belongs to the 74LS Family, utilizing bipolar junction technology with Schottky diode clamps.
- Offers a clock frequency of up to 45MHz ensuring high-speed operation.
- Compatible with both inverting and non-inverting polarity inputs.
- Mounts through hole with 16 pins in a PDIP package for easy PCB integration.
- Operates within a supply voltage range of 4.75V to 5.25V ensuring reliable performance.
- Features a maximum propagation delay time of 20ns at CL conditions.
- Suitable for temperature ranges from 0°C to 70°C for industrial applications.
- Incorporates JK type flip-flop with negative edge triggering for versatile logic control.
Product Description
Texas Instruments SN74LS112AN 2 Flip Flop IC LS 16-Pin PDIP is a high-performance logic component based on the 74LS Family of Low Power Schottky logic ICs. It is designed with bipolar junction technology combined with Schottky diode clamps that achieve operating speeds comparable to the original 74TTL family but with significantly reduced power consumption.
This device features two JK flip-flops with negative edge triggering, offering inverting and non-inverting input polarity options. It operates at a clock frequency of up to 45MHz and supports a supply voltage range from 4.75V to 5.25V, making it suitable for various industrial and electronic applications.
The package type is a 16-pin PDIP with through-hole mounting, facilitating easy manufacturing integration. The flip-flop IC offers a maximum propagation delay time of 20ns under standard load conditions and is designed to perform reliably in temperatures between 0°C and 70°C.
Measuring 19.3mm in length and 4.57mm in height, this compact device is ideal for dense electronic circuit boards. It carries no special automotive standards or approvals but is suitable for general semiconductor use within electronic components assemblies, industrial automation, communication equipment, and logic control systems.
This IC is a part of the 74LS Family Low Power Schottky logic series. Two JK type flip-flops integrated within a single package for efficient circuit solutions. Supports negative edge triggering for responsive signal processing.
Capable of handling clock frequencies up to 45MHz for high-speed logic operations. Designed for through-hole mounting with a standard 16-pin PDIP package. Operates with a supply voltage between 4.75V and 5.25V ensuring low power consumption.
Offers reliable performance across an operating temperature range of 0°C to 70°C. Compact dimensions enable use in space-constrained electronic designs. Ideal for use in industrial, communications, and embedded systems applications.
Texas Instruments brand assurance with durable and tested semiconductor quality. Explore more semiconductor components and logic ICs within the Electronics & Electricals category on EnvMart for comprehensive industrial and electronic design applications.
Explore more products in our Flip Flop ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN74LS112AN can operate at a maximum clock frequency of up to 45MHz, ensuring high-speed logic operations.
It operates within a supply voltage range of 4.75V to 5.25V, providing reliable performance for various applications.
This model incorporates JK type flip-flops with negative edge triggering, allowing for versatile logic control.
The dimensions of this flip-flop IC are 19.3mm in length and 4.57mm in height, making it compact for electronic designs.
The SN74LS112AN contains two elements per chip, providing dual flip-flop functionality.
The maximum propagation delay time for the SN74LS112AN is 20ns under standard load conditions.
This model operates reliably within a temperature range of 0°C to 70°C, suitable for industrial applications.
The SN74LS112AN is designed for through-hole mounting, which facilitates easy integration into printed circuit boards.
It supports single-ended input types, providing flexibility in circuit design.
Yes, it is compatible with both inverting and non-inverting polarity inputs, enhancing its versatility in applications.
This IC belongs to the LS logic family, utilizing low power Schottky technology for efficient operation.
The country of origin for this product is India.
