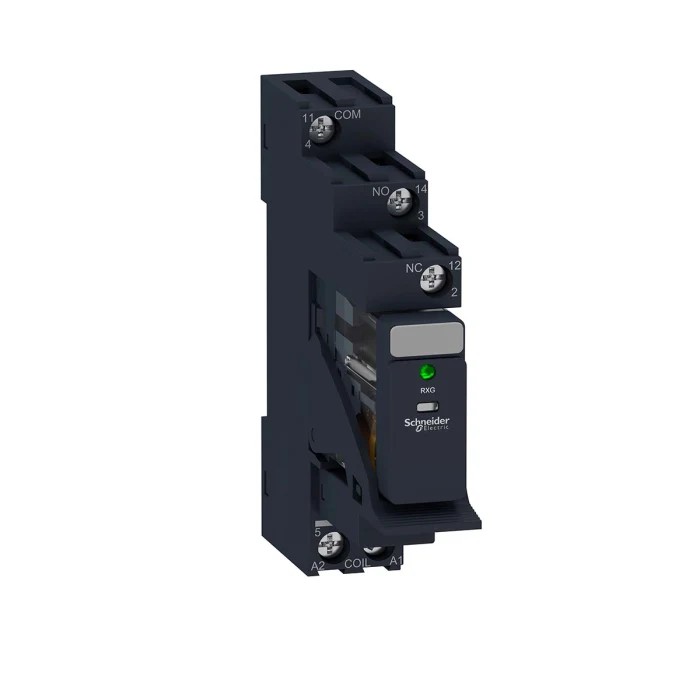

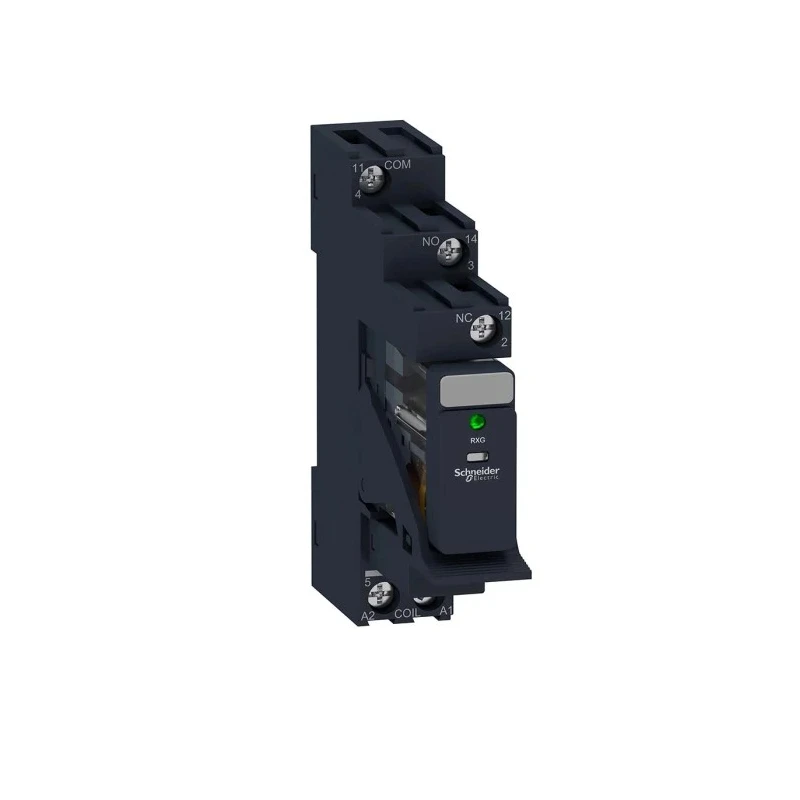

Schneider Electric Harmony Relay RXG Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT RXG13BDPV
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 79.6mm |
| Length | 72mm |
| Model | RXG13BDPV |
| Width | 15.6mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Connector |
| Coil Resistance | 100Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Equipped with a 24V dc coil voltage ensuring precise operation.
- Features SPDT silver alloy contacts suitable for switching up to 10A current.
- Compact dimensions of 72mm length, 79.6mm height, and 15.6mm width for efficient panel integration.
- Designed for robust industrial use with a wide operating temperature range from -40°C to 70°C.
- Complies with IEC 61810-1, CSA C22.2 No 14, UL 508, and IEC 61984 standards.
- Switching voltages include a maximum of 250V AC and 30V DC.
- Mount type is DIN Rail with connector terminals for easy wiring.
- Contact resistance and reliability are ensured by silver alloy contact material.
Product Description
Schneider Electric RXG13BDPV is an industrial-grade Harmony Relay RXG Series Interface Relay designed for reliable switching and signal conditioning in industrial and automation systems.
This electromechanical relay features a 24V dc coil voltage with a coil resistance of 100Ω, providing dependable coil operation with electrical isolation.
The relay has a single-pole double-throw (SPDT) contact configuration composed of durable silver alloy material, capable of managing switching currents up to 10A, suitable for both AC and DC loads.
It mounts easily on DIN rails, allowing versatile integration into electrical panels and control cabinets, while the connector terminal type simplifies wiring and maintenance.
Designed for challenging environments, it operates over a broad temperature range from -40°C to 70°C and maintains IEC 61810-1, CSA C22.2 No 14, UL 508, and IEC 61984 certifications, ensuring safety and compliance.
The relay supports switching voltages up to 250V AC and 30V DC, making it suitable for a wide range of industrial control circuits and interface applications. Equipped with a 24V dc coil voltage ensuring precise operation.
Features SPDT silver alloy contacts suitable for switching up to 10A current. Compact form factor with precise dimensions for panel mounting. Wide operating temperature range from -40°C to 70°C for harsh environments. Certified to international standards IEC 61810-1, CSA C22.2 No 14, UL 508, IEC 61984.
DIN Rail mounting facilitates easy installation and replacement. Connector terminals allow reliable electrical connections. Part of the Harmony Relay RXG series known for quality and durability. Manufactured in China ensuring consistent quality control.
This Schneider Electric Harmony Relay RXG Interface Relay is highly suited for industrial automation, electrical control panels, signal conditioning in laboratories, manufacturing equipment, HVAC systems, and water treatment plants.
Enhance your industrial control setup with this reliable DIN rail relay offering robust performance and long operational life. Explore full Harmony Relay RXG series and related Schneider Electric automation components on EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXG13BDPV relay operates with a coil voltage of 24V dc.
This model can manage a maximum switching current of 10A.
The relay has compact dimensions of 72mm in length, 79.6mm in height, and 15.6mm in width.
It features a single-pole double-throw (SPDT) contact configuration.
The RXG13BDPV operates within a wide temperature range from -40°C to 70°C.
The relay supports maximum switching voltages of 250V AC and 30V DC.
This relay is designed for DIN Rail mounting, facilitating easy installation.
The contacts are made of durable silver alloy material.
It features connector terminals for reliable electrical connections.
It complies with IEC 61810-1, CSA C22.2 No 14, UL 508, and IEC 61984 standards.
The coil resistance of the RXG13BDPV is 100Ω.
This relay is suitable for industrial automation, electrical control panels, and signal conditioning in various systems.
