Semikron Danfoss Dual Thyristor Module SEMIPACK1 1600 V 50 A 1.5 kA SKKT 57B16 E

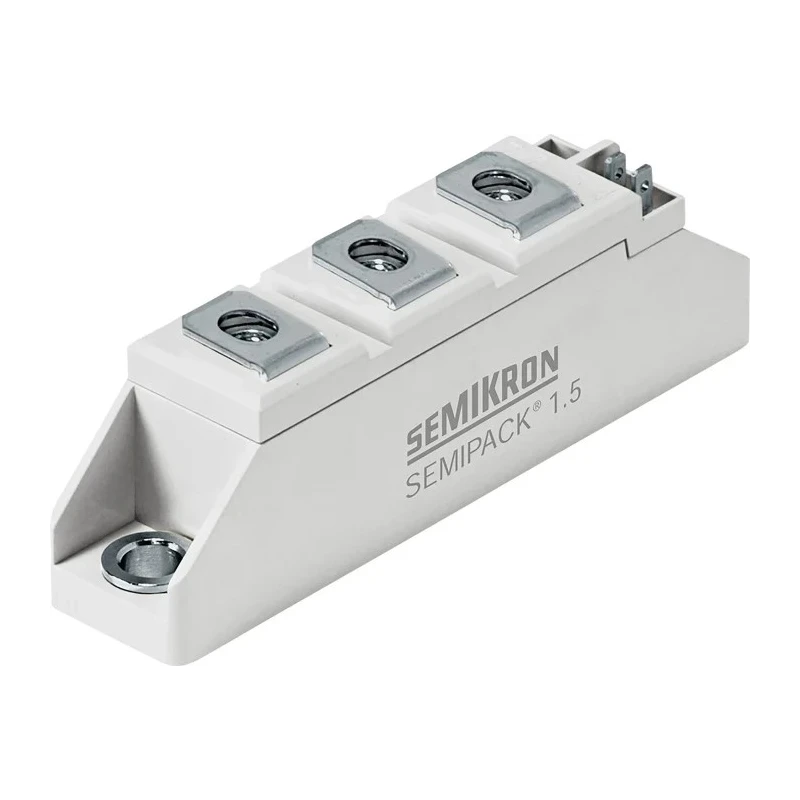

Semikron Danfoss SKKT 57B16 E Dual Thyristor Module is a high-performance semiconductor device designed for industrial electronic applications requiring robust and reliable switching capabilities. Encapsulated in a SEMIPACK1 package with an electrically isolated base plate, this module is engineered for mounting on panels and is ideal for use in battery chargers, welders, plating equipment, regulated power supplies, temperature control, and speed regulation circuits.

The module features a repetitive peak reverse voltage rating of 1600 V and supports a surge current of up to 1.5 kA, providing resilience against transient electrical stresses. With a maximum gate trigger current of 150 mA and a maximum gate trigger voltage of 3 V, it offers precise and energy-efficient gate control. Its operational temperature range spans from -40°C to 125°C, suiting a broad spectrum of industrial environments.

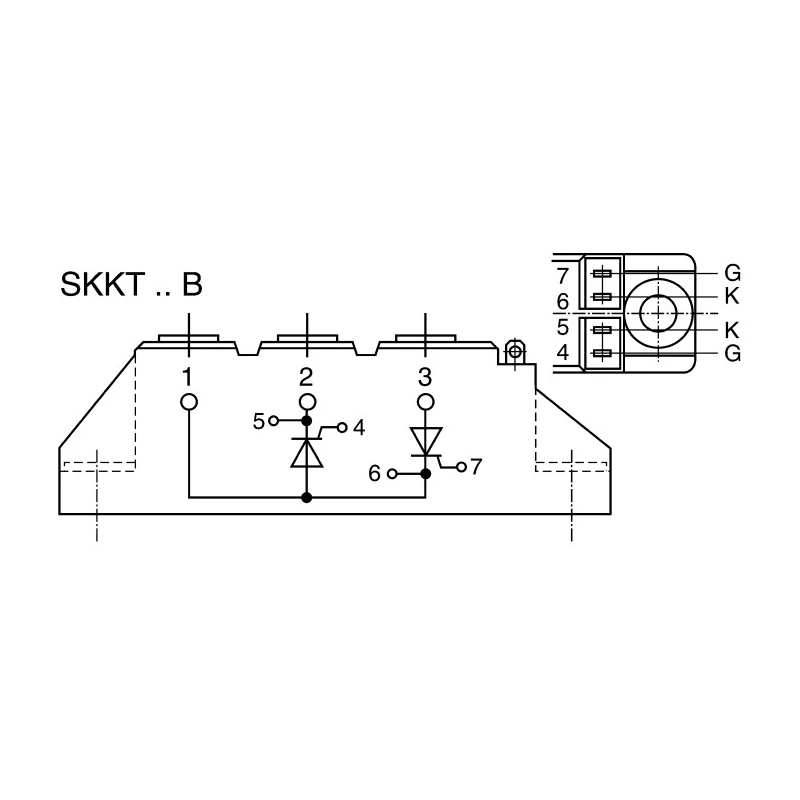

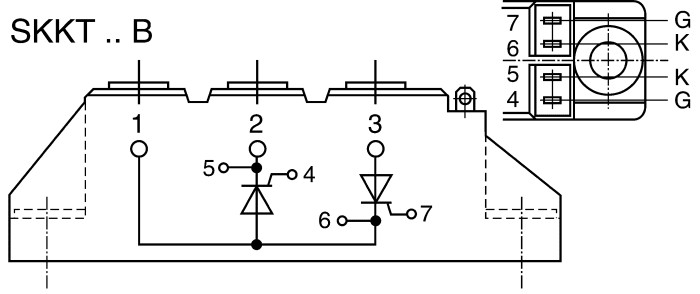

The SKKT 57B16 E has a pin count of 7 for secure and stable connections. Its maximum holding current of 250 mA ensures sustained conduction after triggering, while the peak on-state voltage of 1.65 V allows for efficient power handling with minimal losses. This dual thyristor module employs SCR (Silicon-Controlled Rectifier) technology, providing bistable switching performance critical for power regulation and control.

Industries that benefit from this module include manufacturing automation, power electronics, HVAC control systems, and industrial machinery. Its rugged design and reliable performance make it a preferred choice for applications requiring durable semiconductor switching devices.

Designed with a SEMIPACK1 package for reliable mounting and thermal management. Supports a repetitive peak reverse voltage of 1600 V ensuring high voltage endurance. Has a surge current rating of 1.5 kA suitable for transient loads.

Equipped with a maximum gate trigger current of 150 mA for sensitive gate control. Operates reliably within temperatures ranging from -40°C to 125°C. Features 7 pins for secure electrical connections. Maximum holding current is 250 mA to maintain on-state conduction.

Maximum peak on-state voltage is 1.65 V ensuring efficient conduction.

This product is supplied new with no automotive standards compliance and no additional certifications. It is made primarily for industrial and commercial electronic power control systems. Browse more modules from Semikron Danfoss and related Thyristor Modules at EnvMart for tailored application needs.
