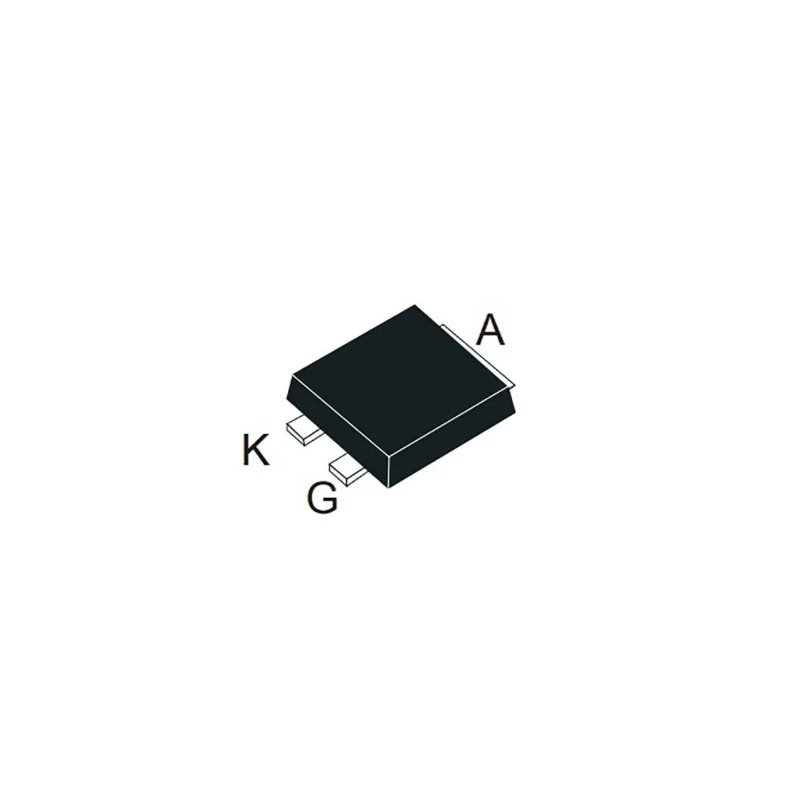

STMicroelectronics Thyristor 600 V 1 A Silicon Controlled Rectifier SMB Package X0115MUF
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X0115MUF |
| Maximum Operating Temperature | 125°C |
| Package Type | SMB |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 1A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 12A |
| Maximum Gate Trigger Current Igt | 0.15mA |
| Maximum Holding Current Ih | 5mA |
| Maximum Gate Trigger Voltage Vgt | 0.8V |
| Peak On-State Voltage | 0.9V |
| Repetitive Peak Off-State Current | 150μA |
Key Features
- Rated average on-state current of 1 ampere ensuring reliable operation.
- High repetitive peak reverse voltage of 600 volts supports robust blocking capabilities.
- Surge current rating of 12 amperes for transient overload tolerance.
- Compact surface mount SMB package suitable for space-conscious designs.
- Wide operating temperature range from -40°C to 125°C for diverse environments.
- Low gate trigger current of 0.15 mA increases sensitivity and control.
- Maximum gate trigger voltage of 0.8 volts for efficient switching.
- Three-pin configuration facilitating simple circuit integration.
Product Description
STMicroelectronics X0115MUF is a silicon controlled rectifier (SCR) thyristor designed for electronic components and discrete semiconductor applications. It delivers a rated average on-state current of 1 ampere and exhibits a high repetitive peak reverse voltage rating of 600 volts, making it suitable for power switching and control applications.
This device features a sensitive gate trigger current as low as 0.15 mA, optimizing it for circuits where gate current availability is limited. The SCR operates reliably over a temperature range of -40°C to 125°C, making it suitable for industrial, commercial, and electronic system environments.
The SMB flat-3L surface mount package ensures compact board integration, with a creepage distance of 3.4 mm that guarantees functional isolation of 250 volts under pollution degree 2 conditions. Its surge current rating of 12 amperes supports short transient overloads, providing robustness in harsh electrical environments.
Applications include grounding fault circuit interrupters (GFCI), arc fault circuit interrupters (AFCI), and other power protection and electronic control systems requiring reliable AC/DC switching and protection.
Rated average on-state current: 1 A. Repetitive peak reverse voltage: 600 V. Surge current rating: 12 A. Maximum gate trigger current: 0.15 mA. Package type: SMB surface mount. Operating temperature range: -40°C to 125°C.
Maximum gate trigger voltage: 0.8 V. Maximum on-state voltage: 0.9 V peak. Pin count: 3. Suitable for industrial and electronic component applications. It is categorized under electronics and electrical semiconductors specifically as a thyristor, enabling it to perform effective power control functions in circuits.
Explore more semiconductor and Thyristor options on EnvMart to find solutions tailored to your specific electronic design and industrial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 1 ampere, ensuring reliable operation in various applications.
This thyristor has a high repetitive peak reverse voltage rating of 600 volts, supporting robust blocking capabilities.
The surge current rating for this unit is 12 amperes, allowing it to tolerate transient overloads effectively.
It operates reliably over a wide temperature range from -40°C to 125°C, making it suitable for diverse environments.
The maximum gate trigger current for this model is 0.15 mA, which increases sensitivity and control in circuits.
This thyristor comes in a compact SMB surface mount package, suitable for space-conscious designs.
The X0115MUF features a three-pin configuration, facilitating simple circuit integration.
The maximum gate trigger voltage for this unit is 0.8 volts, which is efficient for switching applications.
The peak on-state voltage for this thyristor is 0.9 volts, which is relevant for its performance in circuits.
This model is suitable for applications such as grounding fault circuit interrupters (GFCI) and arc fault circuit interrupters (AFCI).
The maximum holding current for this unit is 5 mA, which is important for its operational characteristics in circuits.
The maximum repetitive peak off-state current for this model is 150 μA, which is relevant for its performance specifications.
