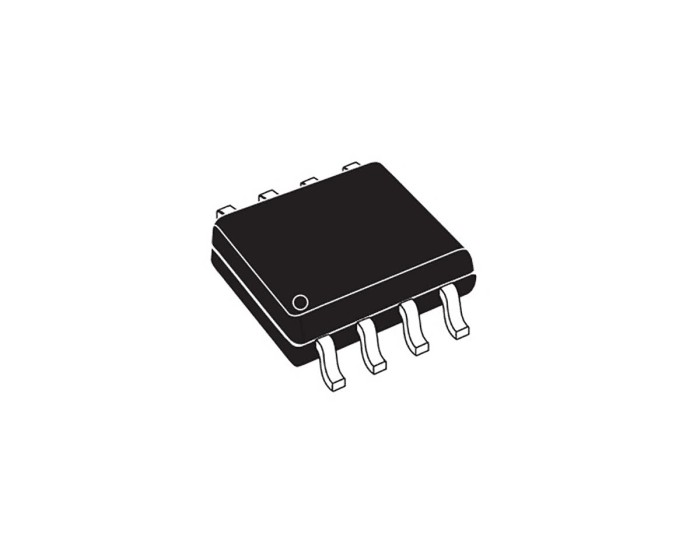

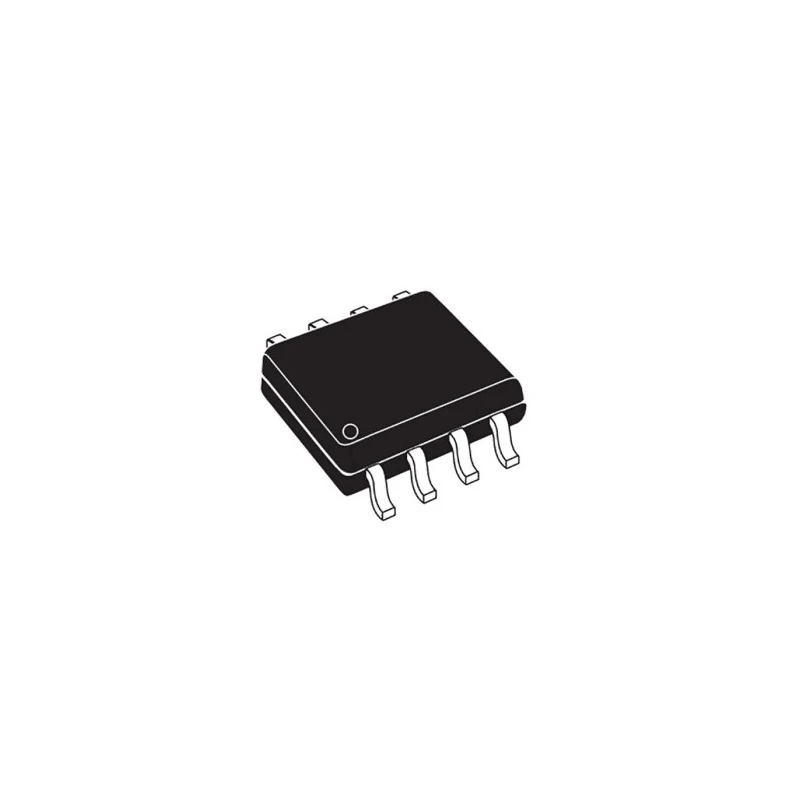

STMicroelectronics Operational Amplifier 6 MHz 8-Pin 36V SO TSB712IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TSB712IDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TSB712A |
| Output Current | 20mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 36V |
| GBP - Gain Bandwidth Product | 6MHz |
| Input Bias Current | 900 nA |
| Slew Rate | 3V/μs |
| Input Offset Current | 10 nA |
Key Features
- Features rail-to-rail input and output for wide operating voltage range.
- Operates from +2.7 V to +36 V single supply or ±1.35 V to ±18 V dual supplies.
- Offers a low input offset voltage and integrated EMI filter.
- Automatic automotive-grade AEC-Q100 compliant device.
- Supports wide temperature operation from -40°C to 125°C.
- Slew rate of 3 V/μs and output current up to 20 mA.
- Compact SO package with dimensions 5mm (L) x 4mm (W) x 1.75mm (H).
- Ideal for actuator driving, sensors, filters, power supply, and motor control applications.
Product Description
STMicroelectronics TSB712IDT is a precision operational amplifier featuring a 6 MHz gain bandwidth product, housed in an 8-pin SO surface mount package. It operates efficiently from a wide supply voltage range of 2.7 V to 36 V single supply and ±1.35 V to ±18 V dual supplies. This device supports rail-to-rail input and output, providing excellent performance for precision analog signal processing.
Designed with low noise, a low input offset voltage of 930 μV typical, and a slew rate of 3 V/μs, it is suitable for high accuracy applications. The integrated EMI filter protects against electromagnetic interference, enhancing signal integrity across a broad temperature range from -40°C to 125°C. Additionally, it is automotive certified under the AEC-Q100 standard.
The device is packaged in a compact SO form factor measuring 5 mm in length, 4 mm in width, and 1.75 mm in height, supporting a maximum output current of 20 mA with two independent channels on a single chip. Its low input bias and offset currents make it ideal for precision analog circuits.
This operational amplifier series is widely used across various industrial and commercial applications including actuator driving, hall effect sensors, analog filtering, power supply regulation, motor control, and resistive transducers.
Rail-to-rail input and output capability for flexible voltage operation. Wide supply voltage range from 2.7 V to 36 V single supply operation. Low noise and integrated EMI filter ensure precise signal amplification. Automotive-grade device meeting stringent AEC-Q100 standards.
Compact 8-pin SO package suitable for surface mount technology. Operates across a broad temperature range of -40°C to 125°C. Slew rate of 3 V/μs with output current capability up to 20 mA. Dual-channel configuration for versatile applications.
Explore more Operational Amplifiers and semiconductor components at EnvMart to suit your electronics design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSB712IDT has a gain bandwidth product of 6 MHz, making it suitable for various precision analog applications.
It operates from a single supply voltage of +2.7 V to +36 V or dual supplies of ±1.35 V to ±18 V.
The TSB712IDT can provide a maximum output current of up to 20 mA.
This operational amplifier operates across a broad temperature range from -40°C to 125°C.
The TSB712IDT is housed in a compact 8-pin SO (Small Outline) surface mount package.
It is compliant with the AEC-Q100 automotive standard, ensuring it meets stringent automotive requirements.
The slew rate of the TSB712IDT is 3 V/μs, allowing for fast response times in signal processing applications.
This operational amplifier features two independent channels on a single chip.
The TSB712IDT has a typical input offset voltage of 930 μV, which contributes to its precision in analog signal processing.
The input bias current for the TSB712IDT is specified at 900 nA, which is low, enhancing its performance in precision applications.
The operational amplifier is RoHS compliant, ensuring it meets environmental regulations regarding hazardous substances.
It is suitable for applications such as actuator driving, sensors, filters, power supply regulation, and motor control.
