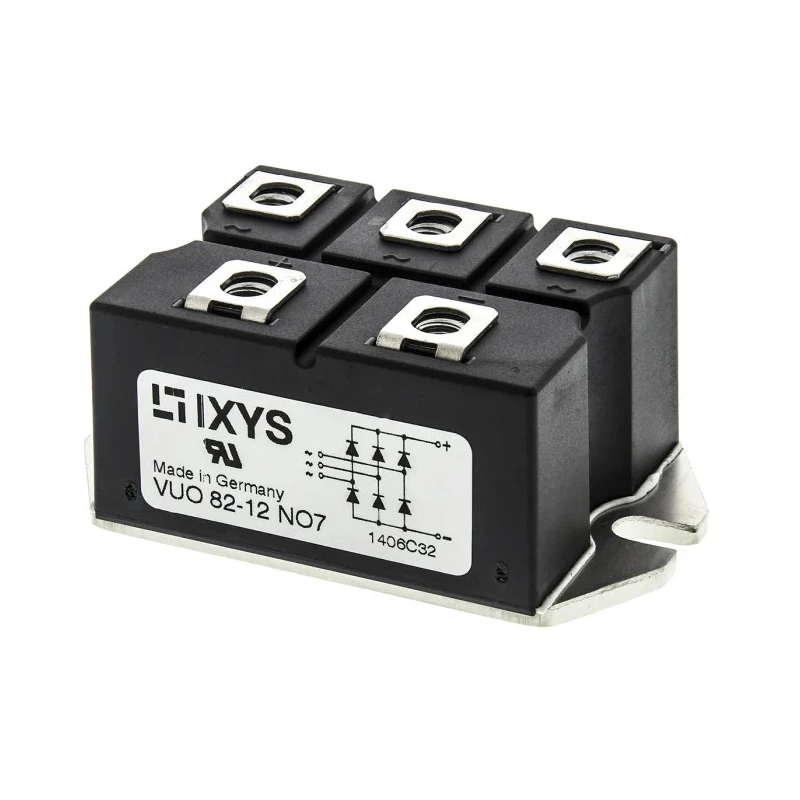

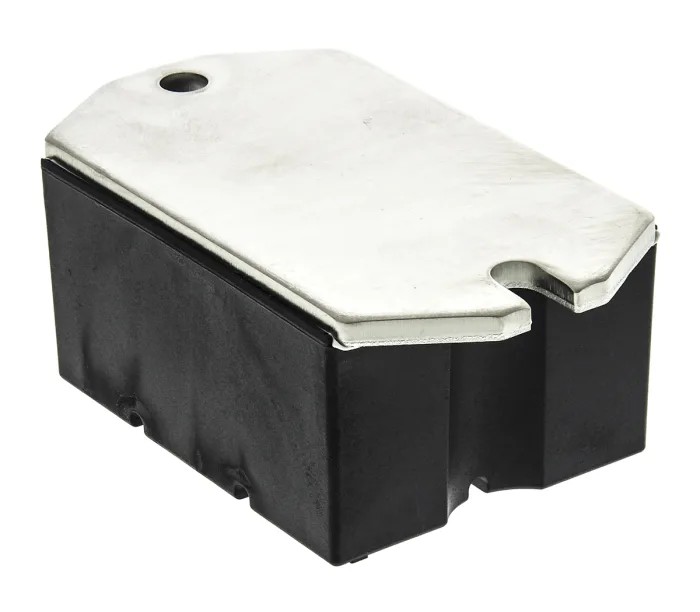

IXYS Bridge Rectifier Module 1200 V 820 A 5-Pin Single VUO82-12NO7

The IXYS VUO82-12NO7 Bridge Rectifier Module 5-Pin Single is a specialized three phase bridge rectifier module designed for converting alternating current (AC) input into direct current (DC) output, suitable for demanding electronic and industrial applications.

This module boasts a peak reverse repetitive voltage (Vrrm) of 1200 V and a continuous forward current (If) rating of 88 A, ensuring efficient current handling under high load conditions. The forward voltage drop is minimal at 1.6 V, reducing conduction losses and improving system efficiency.

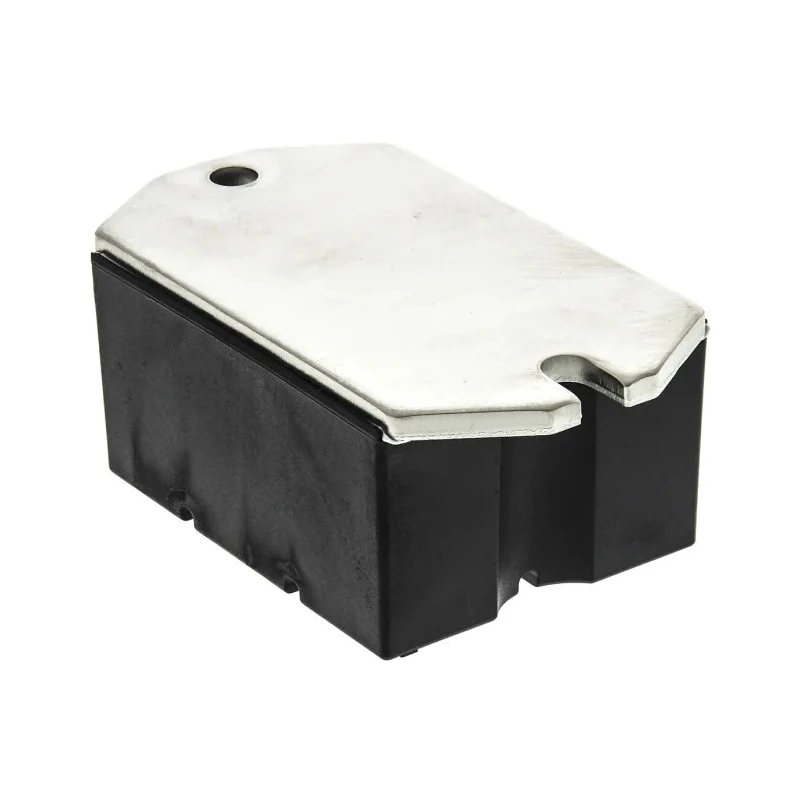

It supports a wide operating temperature range from -40°C up to 150°C, allowing deployment in harsh environments. The construction includes a PWS D package type with panel mounting and 5 screw terminal pins providing secure electrical connections. The use of Direct Copper Bonding (DCB) ceramic enhances the module’s thermal conductivity and power cycling capabilities, improving lifespan and reliability.

The module’s compact form factor, with dimensions of 72 mm length, 42 mm width, and 30 mm height, facilitates integration into various assemblies without significant space requirements.

With a peak non-repetitive forward surge current capacity of 820 A, the device can handle transient surges effectively, protecting circuit components downstream. Its extremely low peak reverse current of 300 μA further optimizes efficiency by minimizing leakage currents.

Manufactured in Germany, this module ensures compliance with stringent quality standards, although it does not hold specific automotive certifications. It is UL registered under E 72873.

Single three phase bridge rectifier configuration with 5-pin screw terminal interface. Rated for 1200 V peak reverse repetitive voltage and 88 A forward current. Maximum operating temperature of 150°C and minimum of -40°C.

Constructed with Package Type PWS D and panel mount for secure installation. Utilizes Direct Copper Bonding ceramic technology for enhanced power cycling. Compact size enables flexible integration into industrial systems.

Low forward voltage drop and minimal reverse leakage current for efficiency. Robust surge current handling capability of 820 A peak forward surge current.

This IXYS Bridge Rectifier Module is widely applicable in power electronics, industrial motor control, power supplies, and other electrical engineering applications requiring reliable AC to DC conversion with high current capacity and thermal endurance.
