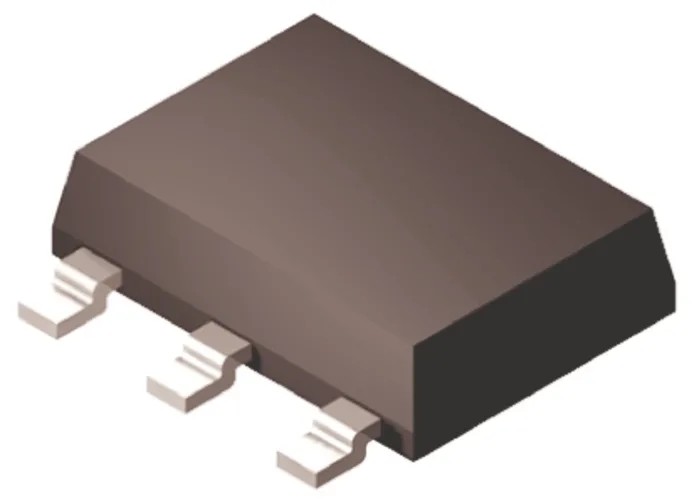

DiodesZetex PNP Transistor SOT-223 Package 3 A Max Collector Current 40 V Max Collector Emitter Voltage FZT1151ATA
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.7mm |
| Length | 6.7mm |
| Model | FZT1151ATA |
| Width | 7.3mm |
| Mount Type | Surface |
| Series | FZT1151A |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Collector Emitter Voltage Vceo | -40V |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 45V |
| Automotive Standard | AEC-Q200, AEC-Q101, AEC-Q100 |
| Maximum Power Dissipation Pd | 2.5W |
| Maximum DC Collector Current Idc | -3A |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 145MHz |
Key Features
- Maximum DC collector current of -3 A ensures high current handling capability.
- Package type is SOT-223 with surface mount design for compact PCB assemblies.
- Maximum collector-emitter voltage rated at -40 V for robust operation.
- Minimum DC current gain (hFE) of 100 provides reliable amplification.
- Maximum power dissipation of 2.5 W supports efficient thermal management.
- High frequency performance with transition frequency up to 145 MHz.
- Wide operating temperature range from -55°C to 150°C for harsh environments.
- Pin count of 4 tailored for easy circuit integration.
Product Description
DiodesZetex FZT1151ATA is a high-quality bipolar PNP transistor housed in a 4-pin SOT-223 surface mount package. It is engineered for general-purpose applications requiring a maximum DC collector current up to 3 A and capable of withstanding collector-emitter voltages up to 40 V. This transistor offers a minimum DC current gain of 100, making it suitable for effective switching and amplification in electronic circuits.
The device supports power dissipation up to 2.5 W, ensuring durability under power loads, and operates reliably over a temperature range of -55°C to 150°C, making it ideal for industrial, automotive, and consumer electronics sectors. Its transition frequency of 145 MHz enables efficient high-frequency signal processing.
FZT1151ATA meets stringent automotive standards including AEC-Q200, AEC-Q101, and AEC-Q100, guaranteeing robustness and reliability in automotive electronic systems. Maximum DC collector current: -3 A. Maximum collector-emitter voltage: -40 V.
Package: SOT-223 surface mount. Minimum DC current gain (hFE): 100. Maximum power dissipation: 2.5 W. Transition frequency: 145 MHz. Operating temperature range: -55°C to 150°C. Pin count: 4. Dimensions (LxWxH): 6.7 mm x 7.3 mm x 1.7 mm.
Automotive certified: AEC-Q200, AEC-Q101, AEC-Q100.
This transistor is widely used in electronic circuit design, including industrial controls, automotive electronics, consumer devices, and power management systems requiring reliable PNP transistor performance.
Explore more high-quality discrete semiconductors and Bipolar Transistors on EnvMart for your manufacturing and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for this model is -3 A, allowing it to handle high current applications effectively.
The maximum collector-emitter voltage for the FZT1151ATA is -40 V, ensuring robust operation in various applications.
This model has a minimum DC current gain (hFE) of 100, which supports reliable amplification in electronic circuits.
The maximum power dissipation for this transistor is 2.5 W, which helps in efficient thermal management during operation.
The transition frequency for this model is up to 145 MHz, enabling efficient high-frequency signal processing.
The FZT1151ATA operates reliably over a wide temperature range from -55°C to 150°C, suitable for harsh environments.
This model is housed in a SOT-223 surface mount package, which is designed for compact PCB assemblies.
The FZT1151ATA has a pin count of 4, facilitating easy integration into circuits.
This transistor meets stringent automotive standards including AEC-Q200, AEC-Q101, and AEC-Q100, ensuring reliability in automotive applications.
The maximum emitter-base voltage (VEBO) for the FZT1151ATA is 5 V, which is important for its operation in electronic circuits.
The maximum collector-base voltage (VCBO) for this model is 45 V, supporting its use in various electronic applications.
The FZT1151ATA is a PNP transistor, which is essential for specific circuit configurations and applications.
