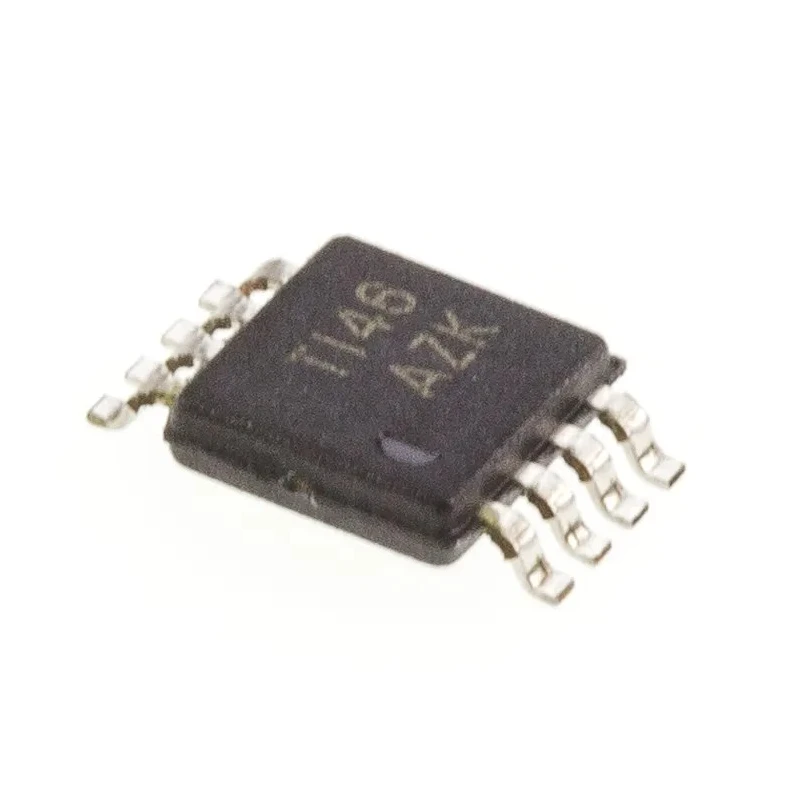

Texas Instruments Translator & Repeater IC LVDS Interface 2000Mbps 3V to 3.6V 8-Pin MSOP SN65LVDS100DGK
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 970μm |
| Length | 3mm |
| Model | SN65LVDS100DGK |
| Mount Type | Surface |
| Output type | Repeater, Translator |
| Series | SN65LVDS100 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Sub Type | Translator & Repeater |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Transmission Data Rate | 2000Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -0.1V |
Key Features
- This IC includes one driver and one receiver element per chip.
- Operates from a minimum supply voltage of 3V up to a maximum of 3.6V.
- Supports differential input voltages with thresholds of 100mV high and -0.1V low.
- Designed for operation in temperature ranges from -40°C to 85°C with ESD protection included.
- Compliant with RoHS standards, ensuring environmental compatibility.
- Its compact dimensions include a length of 3mm and height of 970µm.
- Ideal for use in interfaces such as Firewire, SATA, and SCSI applications requiring LVDS signaling.
Product Description
Texas Instruments SN65LVDS100DGK is a Translator & Repeater IC optimized for LVDS (Low Voltage Differential Signaling) interface applications. It supports a transmission data rate of up to 2000Mbps, making it suitable for high-speed digital data communication across low-cost twisted-pair copper cabling.
This device is housed in an 8-pin MSOP surface mount package, making it ideal for compact and space-constrained PCB designs. The IC integrates one driver and one receiver per chip, facilitating reliable signal translation and repetition between different LVDS systems.
Operating voltage ranges from 3V minimum to 3.6V maximum, with the device supporting differential input high and low threshold voltages of 100mV and -0.1V respectively. It is designed for reliable operation across a wide temperature range, from -40°C up to 85°C, including Electrostatic Discharge (ESD) protection to enhance device durability and performance stability.
Compliant with RoHS environmental standards, the SN65LVDS100DGK aligns with current regulatory requirements for the electronics industry. Its physical dimensions include a compact 3mm length and 970µm height, suitable for high-density electronic assemblies.
This LVDS translator and repeater IC is commonly used in applications such as Firewire, SATA, and SCSI interfaces, where high-speed data transmission over twisted-pair cables is required. It ensures signal integrity and effective level translation, which is essential in advanced computing, communication, and industrial interface systems.
Includes 1 driver and 1 receiver element per chip to provide bidirectional signal handling. Standard 8-pin MSOP package allows for easy surface mounting and integration. Operates reliably between 3V and 3.6V supply voltage.
Differential input threshold voltages support precise and noise-resistant data reception. Wide temperature operating range supports use in industrial and automotive environments. RoHS compliant for reduced environmental impact.
Compact dimensions suit density-critical electronic circuits. Explore more electronic components and interface ICs in EnvMart’s semiconductor section for reliable sourcing and expert support.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN65LVDS100DGK supports a maximum transmission data rate of 2000Mbps, making it suitable for high-speed digital data communication.
It operates with a supply voltage ranging from a minimum of 3V to a maximum of 3.6V.
The device supports a differential input high threshold voltage of 100mV and a low threshold voltage of -0.1V.
This IC is designed for operation in temperatures ranging from -40°C to 85°C.
It comes in an 8-pin MSOP package, which allows for surface mounting.
Yes, it is compliant with RoHS standards, ensuring reduced environmental impact.
It is ideal for use in interfaces such as Firewire, SATA, and SCSI applications that require LVDS signaling.
The dimensions of the SN65LVDS100DGK include a length of 3mm and a height of 970μm.
This model functions as both a repeater and a translator, facilitating bidirectional signal handling.
The SN65LVDS100DGK is manufactured in India.
It utilizes a surface mount type for easy integration into electronic circuits.
