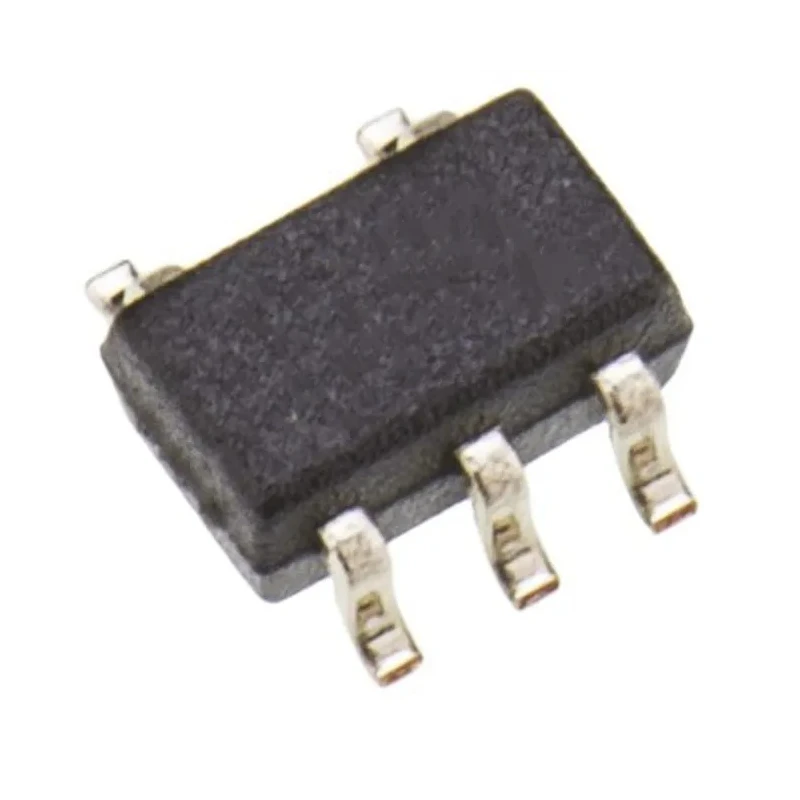

onsemi Operational Amplifier Surface Mount SC-70 Package 5-Pin 1.8-5.5V 1.2MHz Gain Bandwidth Product NCS20081SQ2T2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | NCS20081SQ2T2G |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | NCS20081 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | 1500 pA |
| Vos - Input Offset Voltage | 4 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 1100 pA |
Key Features
- Provides single channel amplification in a compact SC-70 package.
- Features a low input bias current of 1500 pA for precision applications.
- Supports input offset voltage of 4 mV and input offset current of 1100 pA.
- Operates efficiently across a wide temperature range from -40°C to 125°C.
- Includes an output current capability of 100 mA suitable for typical electronic circuits.
- Designed with a slew rate of 0.4 V/μs for responsive signal processing.
- Certified to meet RoHS compliance and automotive standard AEC-Q100 for quality assurance.
Product Description
onsemi NCS20081SQ2T2G is a single channel operational amplifier designed for surface mount applications with a compact SC-70 package. It offers a gain bandwidth product of 1.2 MHz while operating from a minimum supply voltage of 1.8 V up to a maximum of 5.5 V, making it suitable for low voltage electronics.
The operational amplifier features a low input bias current of 1500 pA and an input offset voltage of 4 mV, ensuring precision and stability in signal amplification tasks. It supports an input offset current of 1100 pA and comes with a slew rate of 0.4 V/μs for effective signal responsiveness.
This component is specially designed for reliable operations over a wide temperature range, from -40°C to 125°C, accommodating demanding industrial and automotive environments. The output current capability of 100 mA enhances its applicability in various electronic circuits requiring moderate drive strength.
The SC-70 package dimensions measure approximately 2.2 mm x 1.35 mm x 1.1 mm (L x W x H), offering a small form factor that is ideal for space-constrained PCB designs. Compact single channel op amp in SC-70 surface mount package.
Wide operating voltage from 1.8 V to 5.5 V. Low input bias and offset currents for high precision applications. Wide operating temperature range suitable for industrial and automotive use. RoHS compliant and meets automotive AEC-Q100 standards.
Gain bandwidth product of 1.2 MHz with unity gain stability. Slew rate optimized to 0.4 V/μs for signal fidelity.
This operational amplifier is widely used in industrial automation, automotive electronics, instrumentation, and embedded system applications requiring reliable and precise analog signal conditioning. The compliance with RoHS and automotive standards underscores its suitability in environmentally conscious and safety-critical projects.
Explore more Operational Amplifiers and semiconductor components in the Electronics & Electricals category at EnvMart for advanced design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.2 MHz, providing unity gain stability for various applications.
This model operates within a supply voltage range of 1.8 V to 5.5 V, making it suitable for low voltage electronics.
The operational amplifier has an output current capability of 100 mA, suitable for typical electronic circuits.
The SC-70 package dimensions are approximately 2.2 mm in length, 1.35 mm in width, and 1.1 mm in height.
It features a low input bias current of 1500 pA, which is essential for precision applications.
This operational amplifier operates efficiently over a wide temperature range from -40°C to 125°C, accommodating demanding environments.
The input offset voltage is specified at 4 mV, contributing to its precision in signal amplification.
The slew rate is optimized at 0.4 V/μs, which enhances signal fidelity during operation.
It is certified to meet the automotive standard AEC-Q100, ensuring quality assurance for automotive applications.
Yes, this model is RoHS compliant, making it suitable for environmentally conscious projects.
This operational amplifier features a single channel design, making it compact and efficient for various applications.
The input offset current is specified at 1100 pA, which is important for maintaining signal integrity in precision applications.
