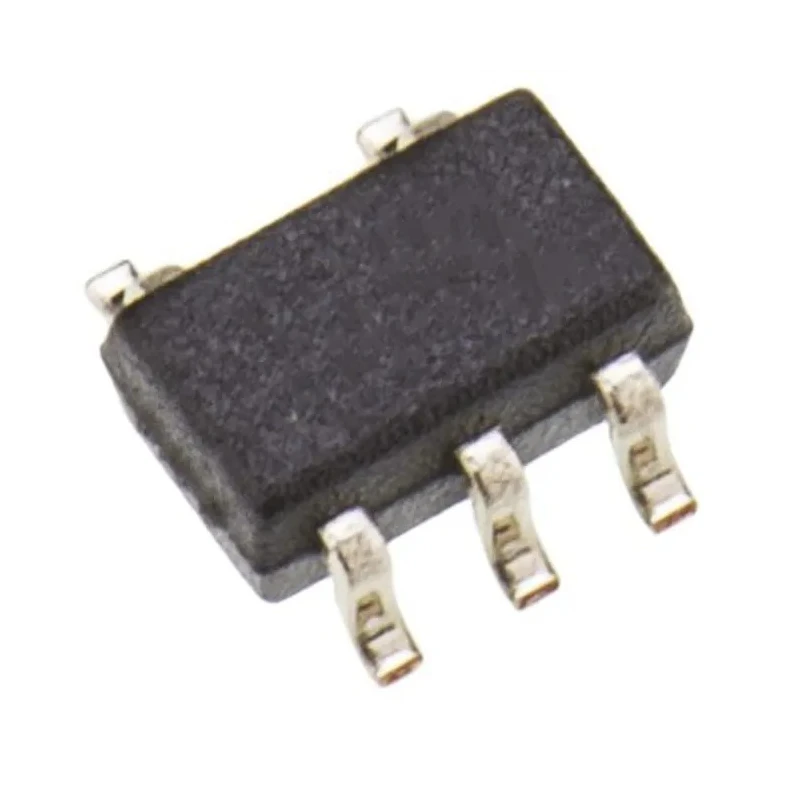

onsemi Operational Amplifier SC-70 Package 5-Pin 1.2 MHz Gain Bandwidth Product 1.8-5.5V NCV20081SQ2T2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | NCV20081SQ2T2G |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | NCV20081 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | 1500 pA |
| Vos - Input Offset Voltage | 4 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 1100 pA |
Key Features
- Single-channel amplifier optimized for low power consumption and precision applications.
- Gain bandwidth product of 1.2 MHz suitable for medium frequency analog signal processing.
- Wide supply voltage range from 1.8V minimum to 5.5V maximum for flexible design integration.
- Low input offset voltage of 4 mV and low input bias currents for enhanced accuracy.
- Compact SC-70 surface mount package with 5 pins for space-efficient PCB layouts.
- Operating temperature range from -40°C to 125°C for harsh environment resilience.
- Supports output current up to 100 mA for driving moderately loaded circuits.
- AEC-Q100 automotive standard qualification ensures reliability in automotive electronics.
Product Description
onsemi NCV20081SQ2T2G is a precision, single-channel operational amplifier featuring a gain bandwidth product of 1.2 MHz, housed in a compact 5-pin SC-70 surface mount package. Designed to operate over a supply voltage range from 1.8 V to 5.5 V, it features low quiescent current consumption of 42 µA per amplifier, making it highly suitable for battery-powered and low-power applications.
This amplifier provides excellent precision characteristics with an input offset voltage of 4 mV and input bias current of 1500 pA, enabling high accuracy signal amplification. It includes a slew rate of 0.4 V/µs and operates reliably over a wide temperature range from -40°C to 125°C, addressing rigorous industrial and automotive requirements.
The SC-70 package with a minimal PCB footprint and a pin count of 5 makes it ideal for designs with space constraints. It supports an output drive current up to 100 mA and meets the AEC-Q100 automotive standard, ensuring robustness and compliance with automotive quality and reliability standards.
Featuring rail-to-rail input and output stages, the NCV20081SQ2T2G amplifier is unity gain stable, simplifying its use in buffering and filtering applications. Applications include industrial instrumentation, automotive electronics, portable devices, and general-purpose analog signal conditioning circuits.
Single channel operational amplifier with 1.2 MHz gain bandwidth product. Operating voltage range: 1.8 V to 5.5 V. Low input offset voltage and bias current for accurate amplification. Compact 5-pin SC-70 surface mount package.
Operating temperature from -40°C to 125°C. Output current capability up to 100 mA. Automotive grade with AEC-Q100 certification. Rail-to-rail input/output with unity gain stability.
This product is RoHS compliant and well-suited for applications in automotive systems, industrial controls, instrumentation, and portable electronic devices, where low power consumption and precision are mandatory. Its small form factor SC-70 package supports high-density PCB designs, greatly benefiting modern electronic applications.
Explore more Operational Amplifiers and semiconductor components in the Electronics & Electricals category on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.2 MHz, making it suitable for medium frequency analog signal processing.
It operates over a supply voltage range from 1.8 V to 5.5 V, allowing for flexible design integration.
The NCV20081SQ2T2G can support an output current of up to 100 mA, suitable for driving moderately loaded circuits.
The SC-70 package has dimensions of 2.2 mm in length, 1.35 mm in width, and a height of 1.1 mm.
It features a low input offset voltage of 4 mV, enhancing accuracy in signal amplification.
This operational amplifier operates reliably over a temperature range from -40°C to 125°C, suitable for harsh environments.
The input bias current for this model is 1500 pA, contributing to its precision characteristics.
Yes, it is qualified under the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
It uses a surface mount type, specifically in an SC-70 package, which is compact and space-efficient for PCB layouts.
The slew rate of this operational amplifier is 0.4 V/µs, which is important for signal processing speed.
Yes, the NCV20081SQ2T2G is RoHS compliant, making it suitable for environmentally conscious applications.
This operational amplifier is suitable for applications in industrial instrumentation, automotive electronics, and portable devices.
