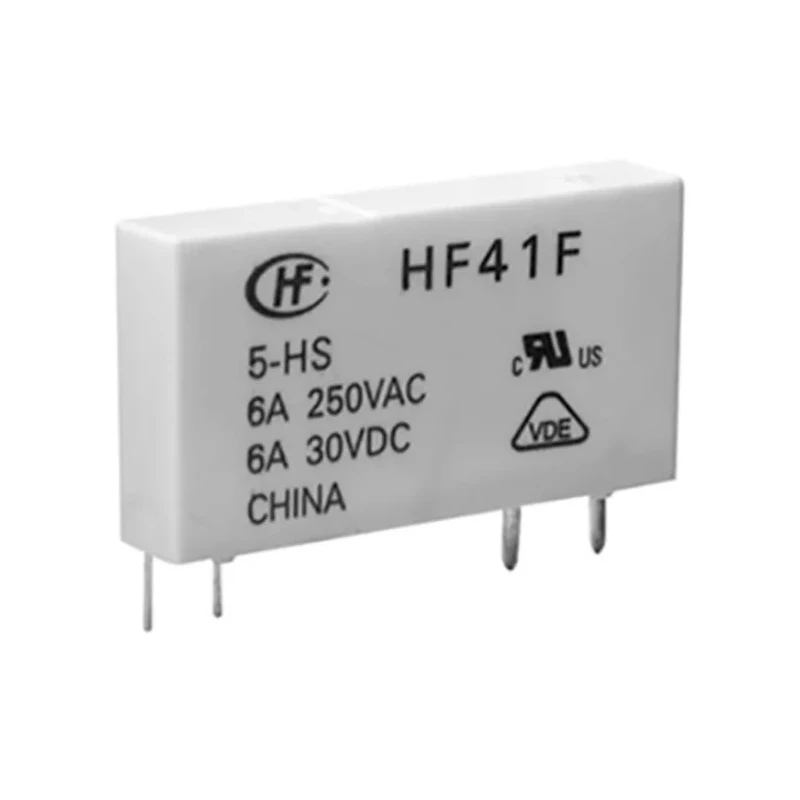

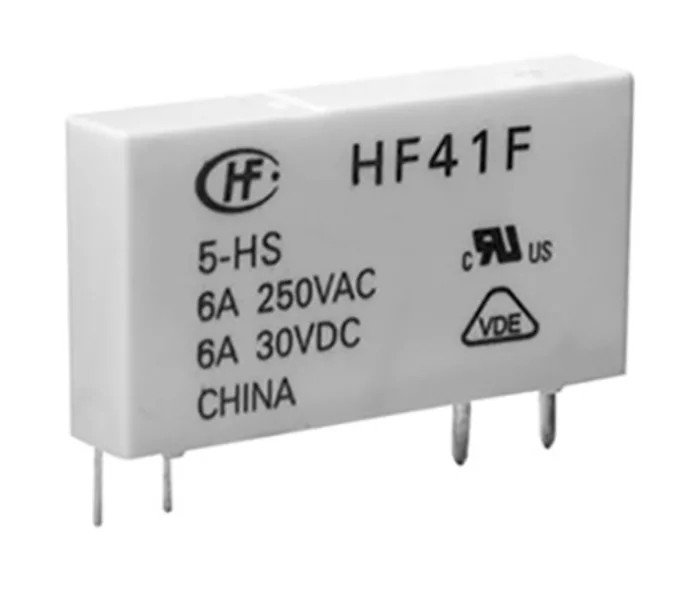

Hongfa Europe GMBH PCB Power Relay 60V DC Coil 6A Switching Current SPDT HF41F-060-ZT
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15mm |
| Length | 28mm |
| Model | HF41F-060-ZT |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF41F |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | cULus, CQC |
| Coil Resistance | 16.6kΩ |
| Coil Voltage | 60V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 210mW |
| Switching Power | 150W |
Key Features
- This power relay operates with a coil resistance of 16.6 kΩ and coil power of 210 mW.
- It supports a switching AC and DC voltage of 125V and switching power up to 150 W.
- The relay features a slim design with dimensions 28mm length, 15mm height, and 5mm width.
- Contact material is silver alloy with a contact resistance of 100 mΩ ensuring reliable conductivity.
- The operating temperature range is wide, from -40°C to a maximum of 85°C.
- It is designed for PCB mount with PCB pin terminals for easy integration.
- Standards and approvals include cULus and CQC, assuring safety and compliance.
Product Description
Hongfa Europe GMBH HF41F-060-ZT PCB Power Relay is a subminiature power relay designed for durable and reliable switching applications in electronic circuits. Operating with a coil voltage of 60V DC and 6A switching current, this SPDT relay is ideal for compact PCB installations.
The relay has a coil resistance of 16.6 kΩ producing a power consumption of 210 mW. It can handle both AC and DC switching voltages up to 125V with a maximum switching power of 150 W, making it suitable for various low power control uses.
Featuring silver alloy contacts, it provides a low contact resistance of 100 mΩ for reliable signal and power conduction. Mechanical dimensions are compact with a length of 28 mm, width of 5 mm, and height of 15 mm, suitable for space-constrained PCB layouts.
Operating temperature ranges from -40°C to 85°C ensure the relay’s stable performance under various environmental conditions. Its PCB pin mount type simplifies installation on printed circuit boards commonly used in industrial automation and electronic signal conditioning.
The HF41F series relay complies with cULus and CQC standards for quality and safety. This relay is widely used in electronics, automation, telecommunications, and industrial control systems where precise and efficient power switching is required.
This power relay operates with a coil resistance of 16.6 kΩ and coil power of 210 mW. It supports a switching AC and DC voltage of 125V and switching power up to 150 W. The relay features a slim design with dimensions 28mm length, 15mm height, and 5mm width.
Contact material is silver alloy with a contact resistance of 100 mΩ ensuring reliable conductivity. The operating temperature range is wide, from -40°C to a maximum of 85°C. It is designed for PCB mount with PCB pin terminals for easy integration.
Standards and approvals include cULus and CQC, assuring safety and compliance.
Choose the Hongfa Europe GMBH HF41F-060-ZT relay for precision power switching in compact PCB applications. Explore related Power Relays and electrical components in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 60V DC.
This model can handle a maximum switching current of 6A.
The dimensions of this relay are 28mm in length, 15mm in height, and 5mm in width.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The maximum switching voltage for both AC and DC is 125V.
The contact material used in this relay is silver alloy.
The contact resistance of this power relay is 100 mΩ.
The operating temperature range for this relay is from -40°C to 85°C.
The coil resistance of this relay is 16.6 kΩ.
The coil power consumption is 210 mW.
This model complies with cULus and CQC standards for safety and quality assurance.
This relay is designed for PCB mount with PCB pin terminals for easy integration.
