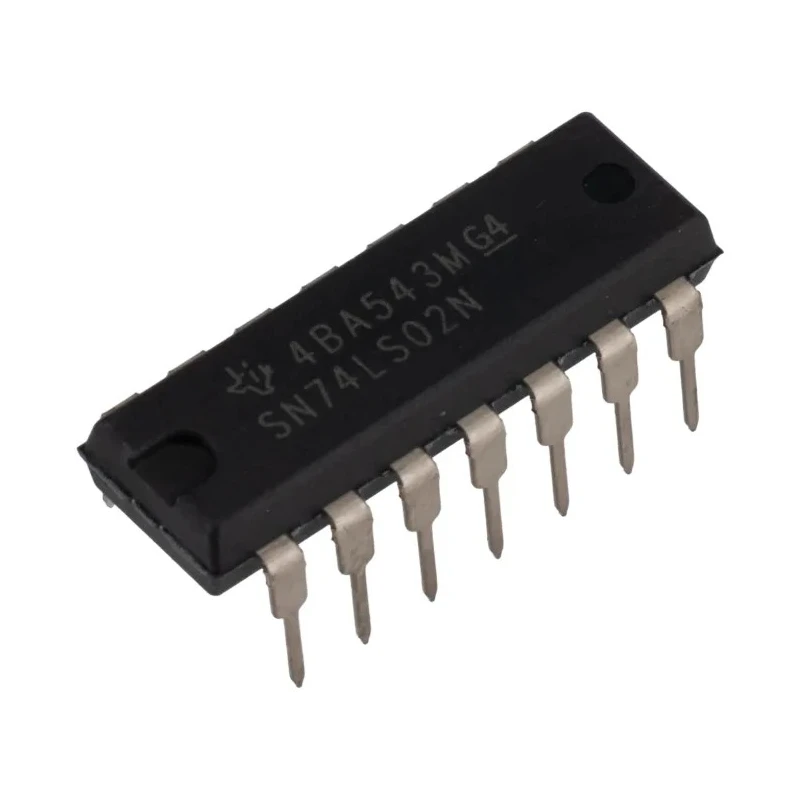

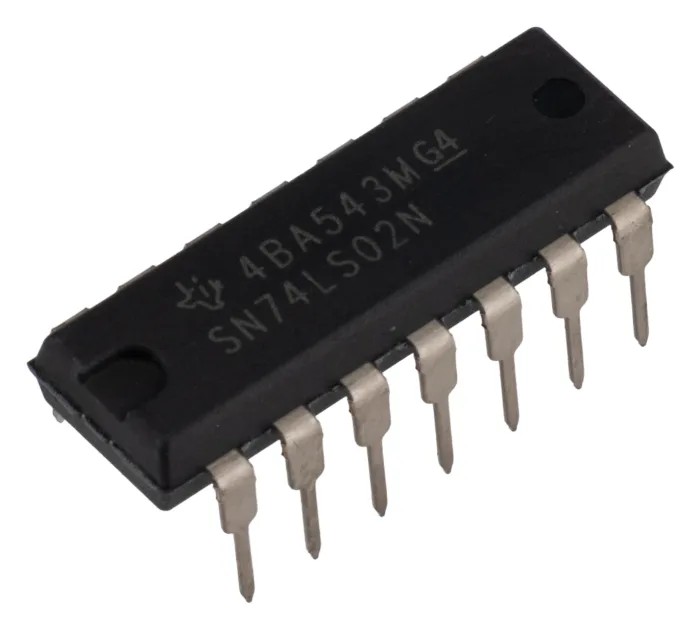

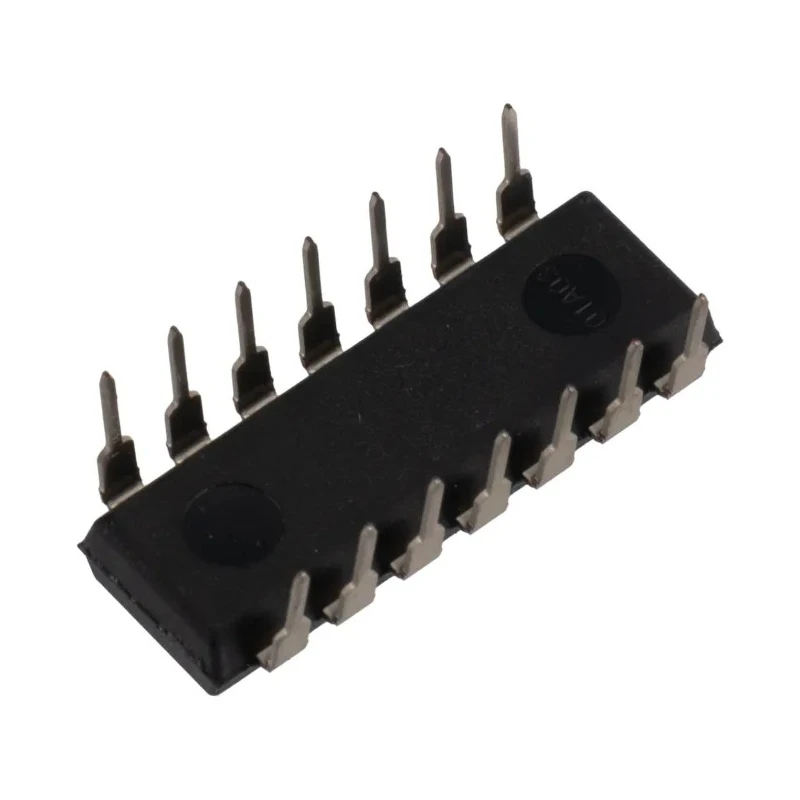

Texas Instruments 4 2-Input NOR Logic Gate 14-Pin PDIP SN74LS02N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74LS02N |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | LS |
| Logic Function | NOR |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.4mA |
| Maximum Propagation Delay Time @ CL | 5ns |
| Maximum Low Level Output Current | 8mA |
| Number of Inputs per Gate | 2 |
Key Features
- Contains 4 two-input NOR logic gates per chip.
- Features a through hole mount type suitable for PDIP socket or PCB mounting.
- Operates with a supply voltage range of 4.75V to 5.25V.
- Maximum propagation delay time of 5 nanoseconds ensures fast switching.
- Operating temperature range from 0°C to 70°C for reliable performance.
- Wide pin count of 14 pins supports various circuit designs.
- Logic family is LS (Low Power Schottky) for efficient power usage.
- Maximum output current rating of -0.4mA (high level) and 8mA (low level).
Product Description
Texas Instruments SN74LS02N 4 2-Input NOR Logic Gate in a 14-Pin PDIP package is part of the 74LS family known for delivering low power Schottky TTL logic gates. This IC features four individual NOR gates, each with two inputs, making it suitable for various digital logic applications requiring NOR functionality.
Designed for through-hole mounting, the PDIP package supports easy integration into prototype boards or final assemblies. Operating within a supply voltage range of 4.75V to 5.25V, the IC delivers consistent performance with a maximum propagation delay of 5 nanoseconds, allowing rapid signal processing.
The device functions reliably from 0°C to 70°C ambient temperature, making it suitable for typical industrial and commercial environments. The 14-pin configuration facilitates compatibility with standard sockets and PCB layouts.
The logic family LS (Low Power Schottky) technology ensures enhanced speed with reduced power consumption compared to traditional TTL devices, optimizing system efficiency. The output current ratings of -0.4mA for high-level output and 8mA for low-level output make this IC adaptable for driving various digital components and loads.
Includes 4 independent two-input NOR gates for versatile logic designs. PDIP 14-pin through-hole package for straightforward assembly. Low power consumption from LS logic technology. Fast switching with maximum 5ns propagation delay.
Recommended for use in digital logic circuits, control systems, and educational projects. Compatibility with standard PCB designs and prototyping boards. Suitable for industrial, laboratory, and educational electronic applications.
This Texas Instruments Logic Gate IC is a fundamental component widely used in digital electronic designs, automation systems, and embedded applications. The longevity and consistent quality from the 74LS family provide dependable logic functionality for engineers and technicians.
Explore the range of logic ICs from Texas Instruments and other semiconductor components available on EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.25V.
The operating temperature range for the SN74LS02N is from 0°C to 70°C.
This unit contains four individual two-input NOR gates.
The maximum propagation delay time is 5 nanoseconds, ensuring fast switching performance.
The SN74LS02N has a pin count of 14 pins.
This model supports through-hole mounting, making it suitable for PDIP sockets or PCB mounting.
The logic family of this model is LS (Low Power Schottky), which allows for efficient power usage.
The maximum output current rating is -0.4mA for high-level output and 8mA for low-level output.
The length of this logic gate is 19.3mm.
This model is recommended for use in digital logic circuits, control systems, and educational projects.
The height of this model is 4.57mm.
The minimum supply voltage for this logic gate is 4.75V.
