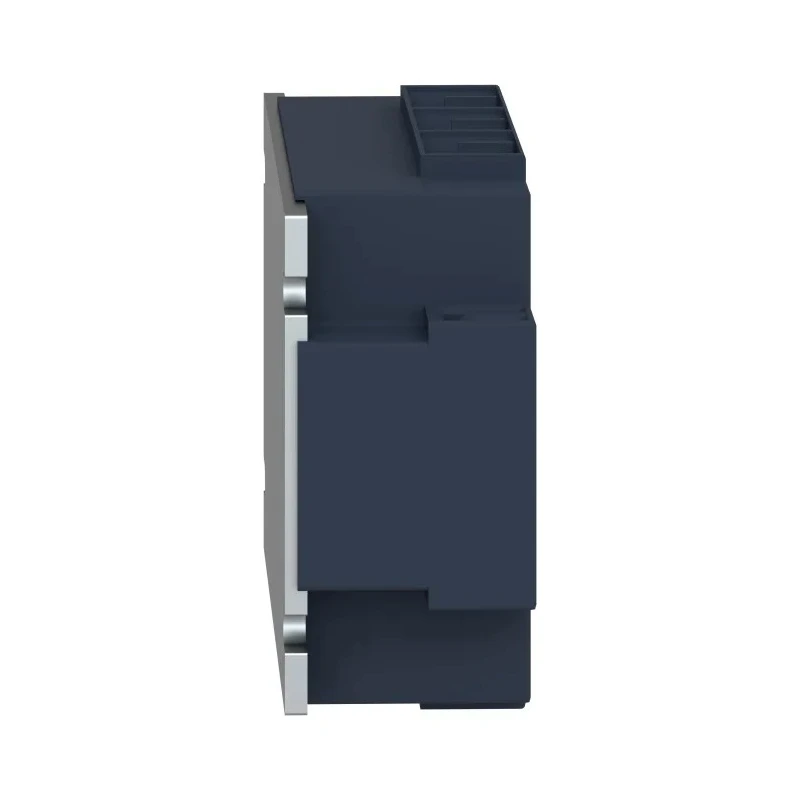

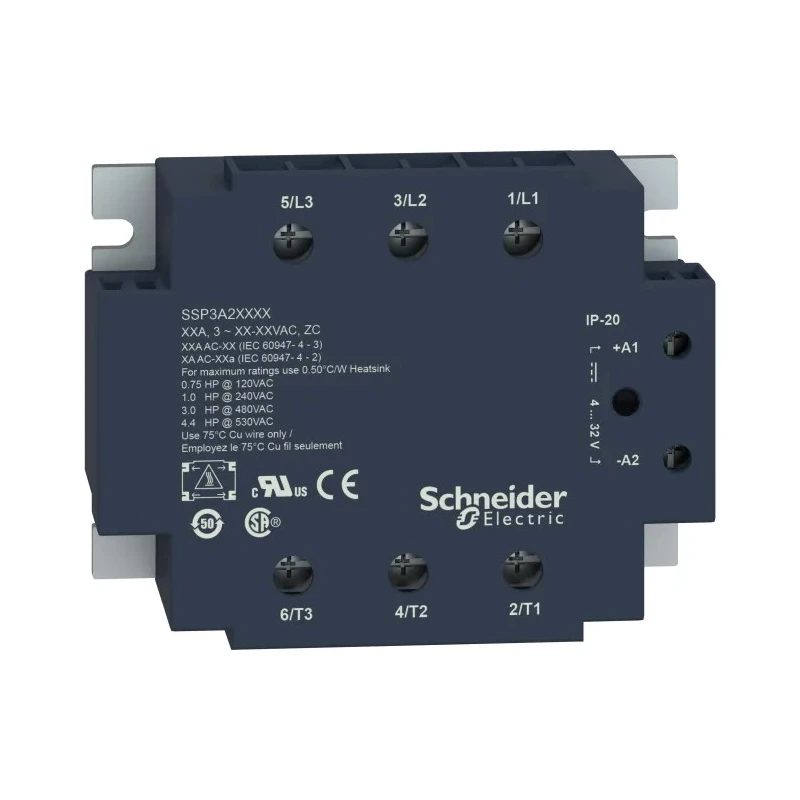

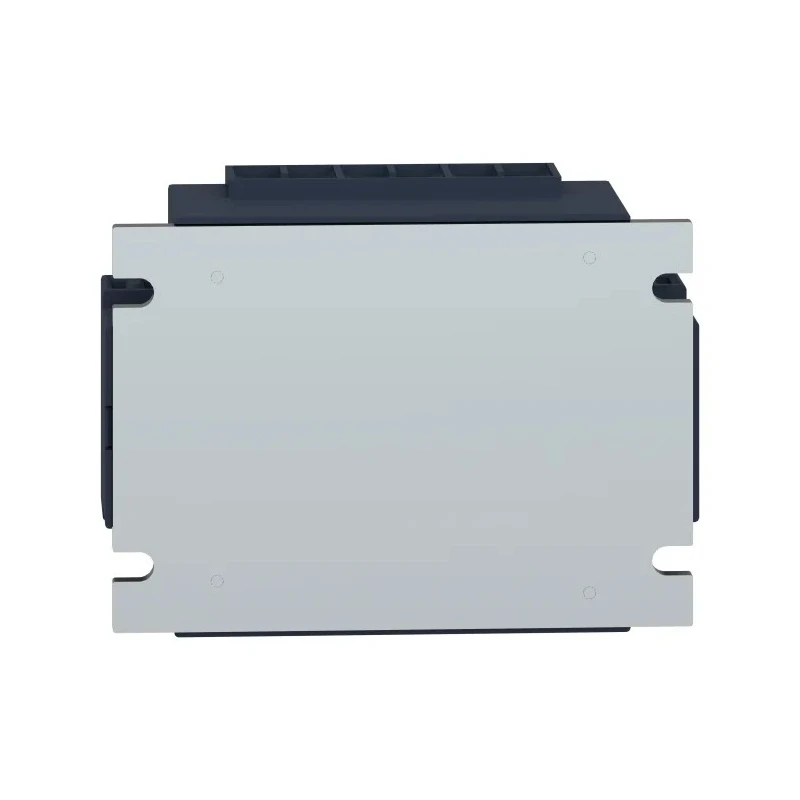

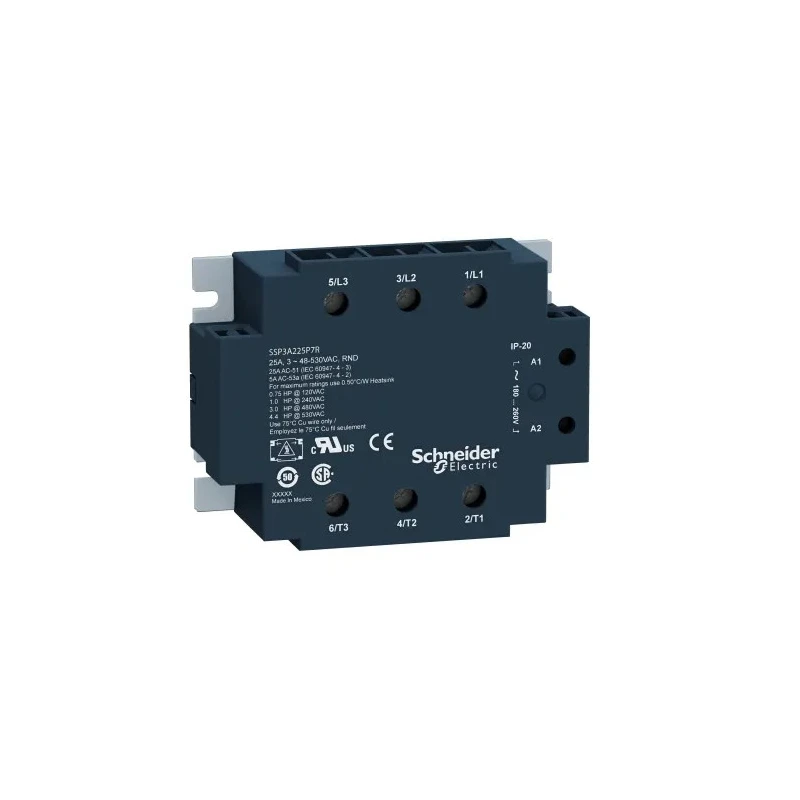

Schneider Electric Harmony Relay Series Solid State Relay Panel Mount 50 A Load, 530 V AC Load, 140 V AC Control SSP3A250F7

Schneider Electric SSP3A250F7 Harmony Relay Series Solid State Relay is a reliable and compact panel mount solution designed to provide solid-state control and switching for industrial automation and electrical systems. Engineered to handle high current loads up to 50 A and a maximum operating voltage of 530 V AC, this relay offers efficient and long-lasting performance in a small footprint with dimensions of 101.3 mm by 101.3 mm by 35.5 mm.

The relay features a screw terminal type for secure and reliable connections. It supports a wide control voltage range from 90 V AC minimum to 140 V AC maximum, making it suitable for a variety of control environments. The built-in zero voltage switching function helps minimize electrical noise and prolong the life of connected devices by switching at the zero crossing of the AC waveform.

Designed for industrial use, the relay operates within a temperature range of -40°C to 80°C. It also offers low off-state leakage current of 3 mA and a capacitance of 8 pF, ensuring efficient switching with minimal power loss. The relay's output is based on Silicon Controlled Rectifier (SCR) technology, enabling it to handle both resistive and inductive loads effectively.

Certified to CSA, IEC 60950-1, IEC 61000, IEC 62314, and UL standards, this product meets rigorous international safety and performance requirements. Manufactured in Mexico, it is part of Schneider Electric’s Harmony Relay series, known for their superior quality and durability in various industrial applications.

Ideal for use in electrical panels, industrial machinery, HVAC systems, manufacturing controls, and other automation systems, the SSP3A250F7 solid state relay simplifies wiring and maintenance while enhancing system uptime. It is especially valuable in applications requiring frequent switching, shock resistance, and silent operation.

Designed for panel mounting applications with screw terminal type for secure connections. Maximum load current of 50 A with a maximum load voltage of 530 V AC. Control voltage range from 90 V AC minimum to 140 V AC maximum for versatile control.

Zero voltage switching function minimizes load stress and electrical noise. Operating temperature range from -40°C to 80°C for demanding environments. Compact design with dimensions 101.3 mm (L) x 101.3 mm (W) x 35.5 mm (H).

Low off-state leakage current of 3 mA and capacitance of 8 pF for efficient performance. Certifications include CSA, IEC 60950-1, IEC 61000, IEC 62314, and UL. SCR output technology suitable for resistive and inductive loads.

Manufactured in Mexico maintaining global quality standards. Explore the full range of Schneider Electric relays and Solid State Relays on EnvMart to find compatible solutions for your industrial automation and electrical control needs.
