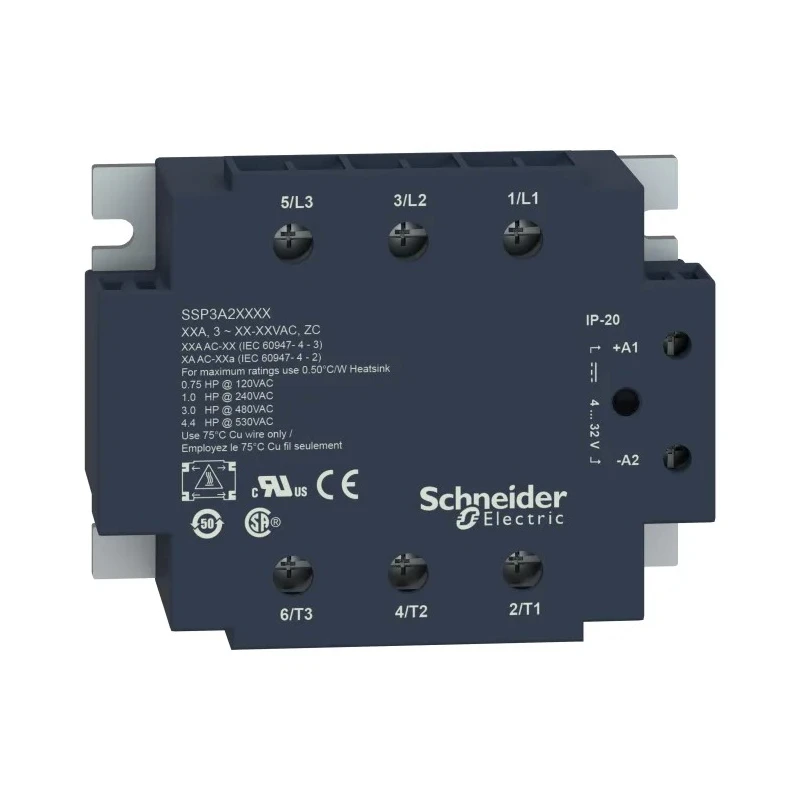

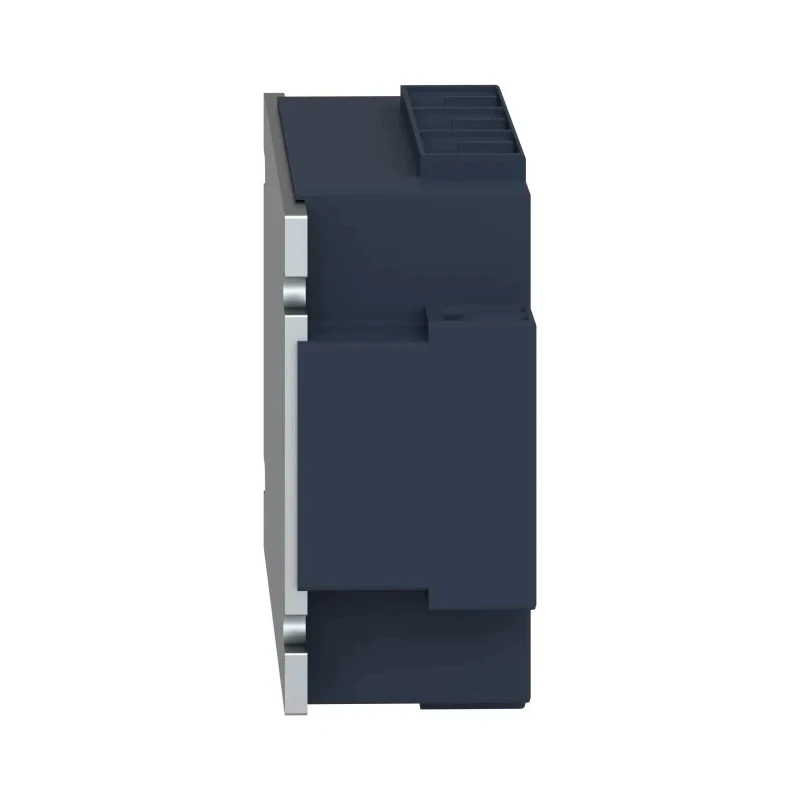

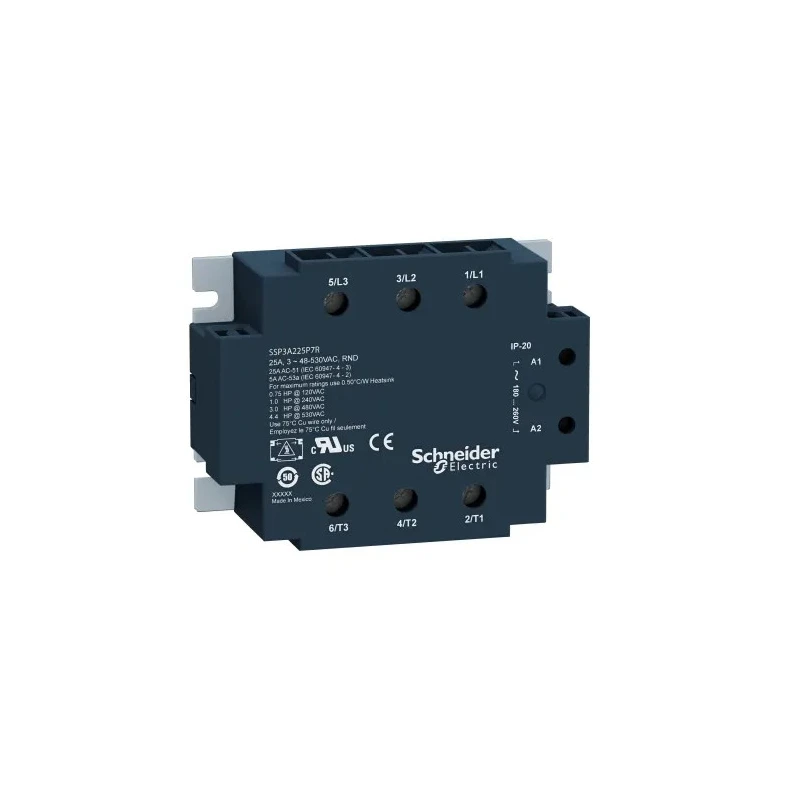

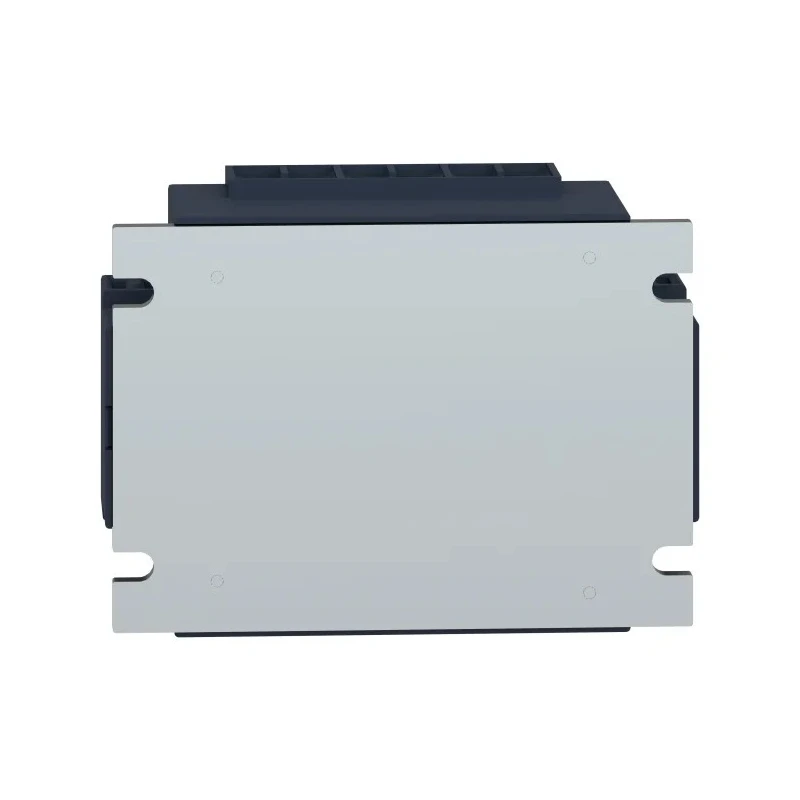

Schneider Electric Harmony Relay Series Solid State Relay 25 A Load Panel Mount 530 V AC Load 32V DC Control SSP3A225BDR

Schneider Electric SSP3A225BDR Solid State Relay is part of the Harmony Relay series, engineered for robust and efficient switching in industrial control systems. This panel mount relay supports a 25 A load current with a maximum load voltage of 530 V AC and a control voltage range from 4 V DC to 32 V DC, providing versatile compatibility for various electrical applications.

The relay features a screw terminal for reliable and secure wiring connections. It operates reliably within ambient temperatures from -40°C to 80°C, making it suitable for demanding industrial, HVAC, manufacturing, and automation environments.

The device has an IP20 protection rating, offering basic protection against ingress of solid foreign objects and electrical insulation. Its output type is SCR, coupled with a 3PNO contact configuration, ensuring consistent performance and switching efficiency.

Its compact dimensions - 35.5 mm height, 97.8 mm width, and 101.3 mm length - allow efficient panel integration with minimal space requirement. This solid state relay supports random voltage switching suitable for inductive loads, providing zero voltage switching for resistive loads and enabling automatic load management.

Designed with high switching frequency capability and resistance to shock, vibration, and contamination, this relay offers long service life and minimal maintenance needs. It complies with CSA, CE, UL, RoHS, REACH, and IEC 61000 standards to ensure safety and reliability.

This solid state relay supports a maximum load current of 25 A, suitable for high-current switching applications. The panel mount design facilitates easy integration into control panels. It offers a maximum load voltage rating of 530 V AC ensuring compatibility with wide voltage ranges.

Control voltage ranges from 4 V DC minimum to 32 V DC maximum enhances control flexibility. Equipped with screw terminal type for secure electrical connections. IP20 rating offers basic protection against solid objects and limited protection against moisture.

Capable of operating in temperatures from -40°C to 80°C, suitable for various industrial environments. Designed with a 3PNO contact configuration and SCR output type for reliable switching performance. Schneider Electric quality ensures resistance to shock, vibration and contamination with a long operational lifespan.

This product is ideal for industrial automation, process control, electrical panels, HVAC systems, and manufacturing equipment requiring reliable solid state switching solutions. Choose Schneider Electric relays for performance and durability in your control systems. Browse more products in the Solid State Relay category to find compatible accessories and complementary control devices.
