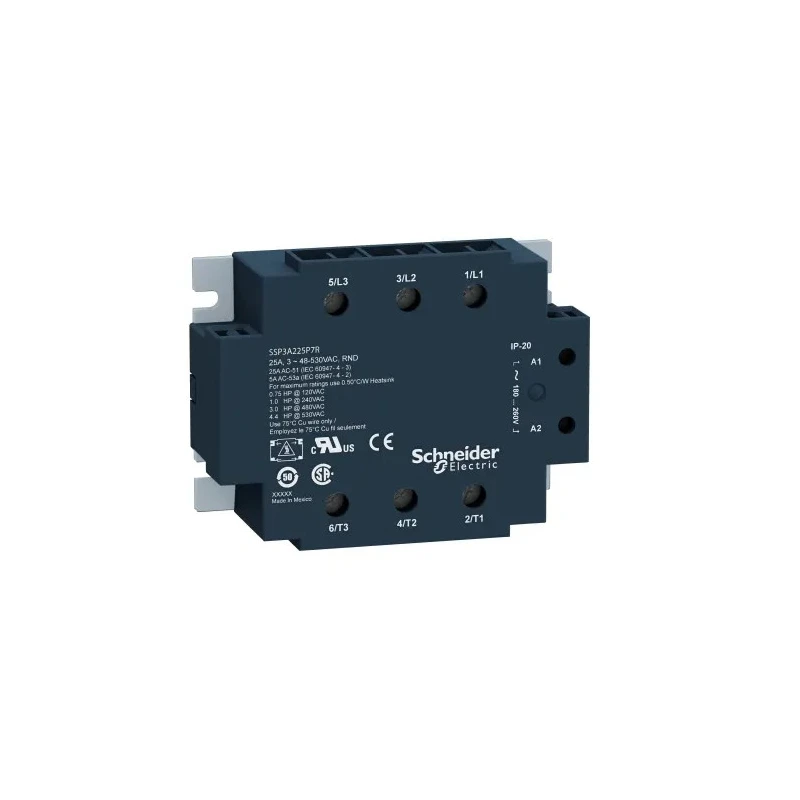

Schneider Electric Harmony Series Solid State Relay, 25 A Load, Panel Mount, 530 V AC Load, 36 V AC Control SSP3A225B7R
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 35.5mm |
| Length | 101.3mm |
| Model | SSP3A225B7R |
| IP Rating | IP20 |
| Width | 97.8mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | Harmony |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 3PNO |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Random Voltage Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | CE, CSA, IEC 61000, REACH, RoHS, UL |
| Maximum Load Voltage | 530V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 18V ac |
| Maximum Control Voltage | 36V ac |
| Off State Leakage Current | 3mA |
Key Features
- Supports a maximum load voltage of 530 V AC for robust industrial applications.
- Operates with control voltage range between 18 V AC to 36 V AC for flexible control.
- Designed with a 3PNO contact configuration ensuring efficient switching.
- Compact dimensions measuring 101.3 mm in length, 97.8 mm in width, and 35.5 mm in height for easy panel integration.
- IP20 rated housing providing protection against solid objects larger than 12 mm.
- Utilizes SCR output type for effective solid state operation and low leakage current of 3 mA.
- Capable of random voltage switching suitable for resistive and inductive loads.
- Wide operating temperature range from -40°C up to 80°C for durability in harsh environments.
Product Description
Schneider Electric SSP3A225B7R Harmony Series Solid State Relay is engineered for high-quality industrial automation and electrical control applications. This panel mount relay supports a maximum load current of 25 amperes and can handle AC load voltages up to 530 volts. It operates with a control voltage range between 18 volts AC and 36 volts AC, delivering precise and reliable switching performance.
Constructed with a 3PNO contact configuration and using SCR as the output type, the relay provides efficient switching with low off-state leakage current of 3 mA. The device dimensions of 101.3 mm length, 97.8 mm width, and 35.5 mm height allow for compact installation in control panels.
Designed to withstand demanding industrial environments, this relay offers an IP20 protection rating and a wide temperature operating range from -40°C to 80°C. The random voltage switching function ensures applicability for resistive and inductive loads. Its high switching frequency, resistance to shock, vibration, and contamination ensure long operational lifespan.
The SSP3 series by Schneider Electric provides innovative solid-state switching solutions for single-phase and three-phase applications, ranging current ratings from 6 A to 55 A, making it suitable for diverse industrial and commercial use cases including automation, manufacturing, HVAC, and process control.
The relay complies with global standards CE, CSA, IEC 61000, REACH, RoHS, and UL, ensuring safe and environmentally responsible operation. Manufactured in Mexico, this product guarantees quality consistent with the Schneider Electric Harmony series legacy.
Supports a maximum load voltage of 530 V AC for robust industrial applications. Operates with control voltage range between 18 V AC to 36 V AC for flexible control. Designed with a 3PNO contact configuration ensuring efficient switching.
Compact dimensions measuring 101.3 mm in length, 97.8 mm in width, and 35.5 mm in height for easy panel integration. IP20 rated housing providing protection against solid objects larger than 12 mm. Utilizes SCR output type for effective solid state operation and low leakage current of 3 mA.
Capable of random voltage switching suitable for resistive and inductive loads. Wide operating temperature range from -40°C up to 80°C for durability in harsh environments. Complies with international standards CE, CSA, IEC 61000, REACH, RoHS, and UL ensuring safety and quality.
Manufactured in Mexico under the Harmony series known for reliability in automation and electrical systems. Explore more Schneider Electric Solid State Relays and related components at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum load current of 25 amperes.
It supports a maximum load voltage of 530 V AC, making it suitable for robust industrial applications.
The relay operates with a control voltage range between 18 V AC and 36 V AC.
This relay utilizes SCR (Silicon Controlled Rectifier) as its output type for effective solid state operation.
It has an IP20 rating, providing protection against solid objects larger than 12 mm.
The relay measures 101.3 mm in length, 97.8 mm in width, and 35.5 mm in height.
It has a wide operating temperature range from -40°C to 80°C, suitable for harsh environments.
This relay is designed with a 3PNO (3 Pole Normally Open) contact configuration for efficient switching.
The off state leakage current is 3 mA, ensuring low leakage during operation.
It complies with several international standards including CE, CSA, IEC 61000, REACH, RoHS, and UL.
This solid state relay is manufactured in Mexico, consistent with the quality standards of Schneider Electric.
It is capable of random voltage switching suitable for both resistive and inductive loads.
